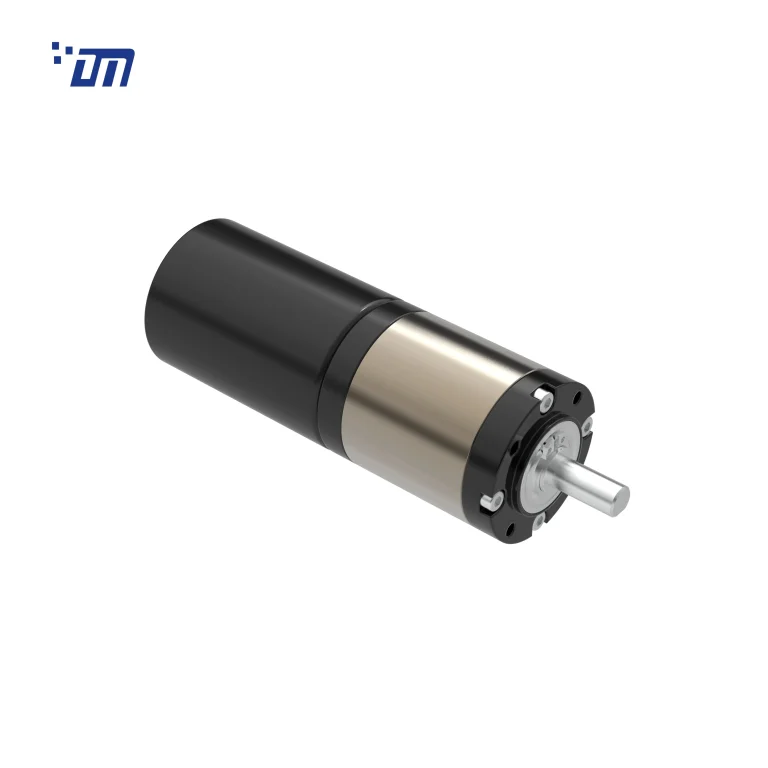

42mm Brushless DC Gear Motor DM 42PBL4260

Brushless DC Gear Motors Supplier DM 42PBL4260

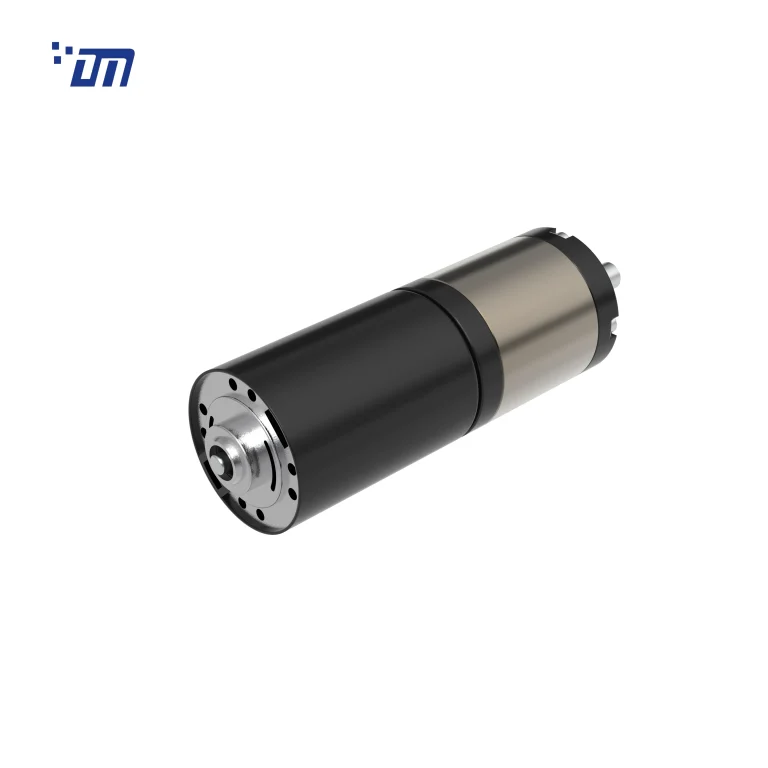

Electric Brushless DC Gear Motor DM 42PBL4260

DM-42PBL4260

Key Features
Model: DM-42PBL4260

Diamater: 42mm
Voltage: 12V~24VDC
Speed: 4RPM~800RPM
Torque: 1kg.cm~62kg.cm

1. CW/CCW
2. Brushless DC Mootor
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage, Current, Speed, Torque, Output Shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

Product Dimensions（unit:mm）

Gearbox Data


Number of stages	1	2	3	4
Reduction Ratio i	3.7、5.2	13、18、25	49、67、92、125	181、246、336、458、625
Gearbox Length L (mm)	33.2	43.6	54	64.4
Breaking Torque(kgf.cm)	15	25	50	50
Gearbox Efficiency	90%	81%	73%	65%

Driving Motor Data


DC Motor Model	Rated	No Load		Max Efficiency Load				Stall
	Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-BL4260-012-6000	12	≤320	6000	≤3700	3900	600	36.9	≥1710	≥5000
DM-BL4260-012-10000	12	≤900	10000	≤5300	7200	800	82	≥2800	≥10000
DM-BL4260-024-8000	24	≤380	8000	≤2200	6700	450	36.9	≥2760	≥9000
DM-BL4260-024-10000	24	≤620	10000	≤2860	8400	600	61.5	≥3750	≥5000
DM-BL4260-012-6000	12	≤320	6000	≤3700	3900	600	36.9	≥1710	≥5000

DC Geared Motor Data


DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-42PBL426001224.3-246K	12	0.4	24	1.255	21.4	30.7	6.81	213.34	7.5
DM-42PBL4260012769.2-13K	12	0.15	769.2	5.50	533.6	39	21.45	188.76	14.09
DM-42PBL4260024204.08-49K	24	0.11	204	3.328	160.6	23.575	38.88	126.97	14.76
DM-42PBL4260012149-67K	12	2.1	149	4.471	98.9	19.4	19.75	78.9	13.97
DM-42PBL4260012769-13K	12	1.5	769	3.581	533.6	38.04	21.45	188.76	14.09
DM-42PBL4260012769-13K	12	2.2	769	6.057	520.9	66.08	35.36	304.4	22.51
DM-42PBL4260024163-49K	24	0.9	163	2.177	137.5	19	27.12	132	12.66
DM-42PBL4260024333-18K	24	0.42	333	1.669	282.4	8.35	24.69	54.21	9.341
DM-42PBL4260012104-67K	12	1.5	104	4.217	83.8	29	25.56	165.44	19.94
The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i) Gear Motor Output Torque=DC Motor TorqueGear RatioGearbox Efficiency. ( t=tmiη)
