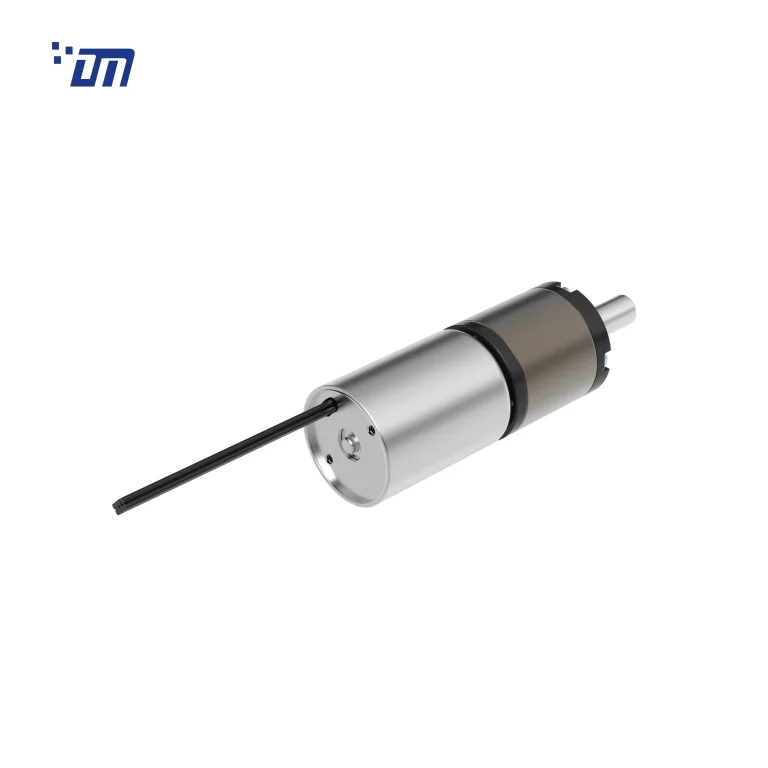

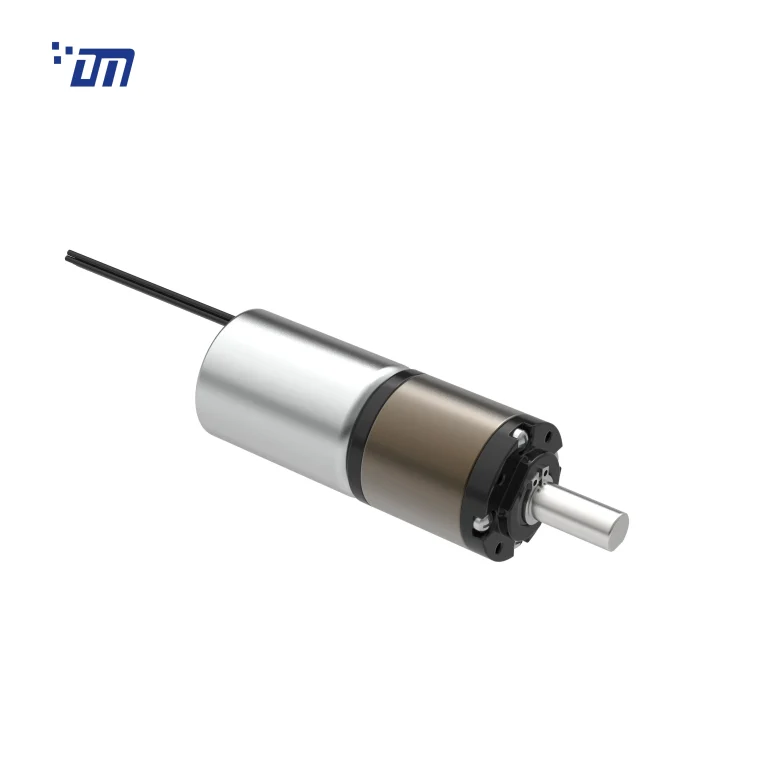

Brushless DC Planetary Gear Motor DM 22PBL2230

DM-22PBL2230

Key Features
Model: DM-22PBL2230

BLDC Planetary Gear Motor
Diamater:22mm
Voltage: 6V~24VDC
Speed: 3RPM~1500RPM
Torque: 0.5kg.cm~7kg.cm

Customization:
Voltage, Current, Speed, Torque, Output Shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

Product Dimensions（unit:mm）

Driving Motor Data


Number of stages	1	2	3	4	5
Reduction Ratio i	4、4.75	16、22.5	64、79、107	256、361、509	1024、2418
Gearbox Length L (mm)	15.2	19.8	24.4	29	33.6
Breaking Torque(kgf.cm)	2	3	4	5	5
Gearbox Efficiency	90%	81%	73%	65%	59%

Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.


DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-22PBL2230012050-361K	12	0.68	50	1.6	31	9.2	3	24	0.26
DM-22PBL2230012050-361K	12	0.6	50	1.5	32.4	6.6	2.2	19	0.25
DM-22PBL2230012168-107K	12	0.68	168	1.533	121	3.1	3.3	9	0.25
DM-22PBL2230012168-107K	12	0.68	168	1.3	116	2.7	3.3	7	0.25
DM-22PBL2230012168-107K	12	0.68	168	1.7	114.4	3.1	3.7	8	0.25
The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i) Gear Motor Output Torque=DC Motor TorqueGear RatioGearbox Efficiency. ( t=tmiη)
