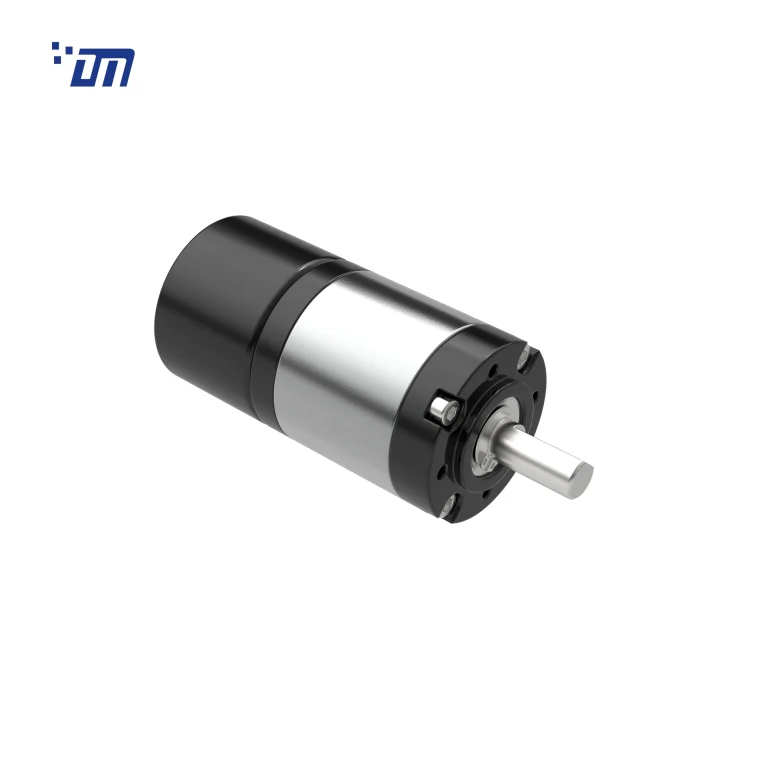

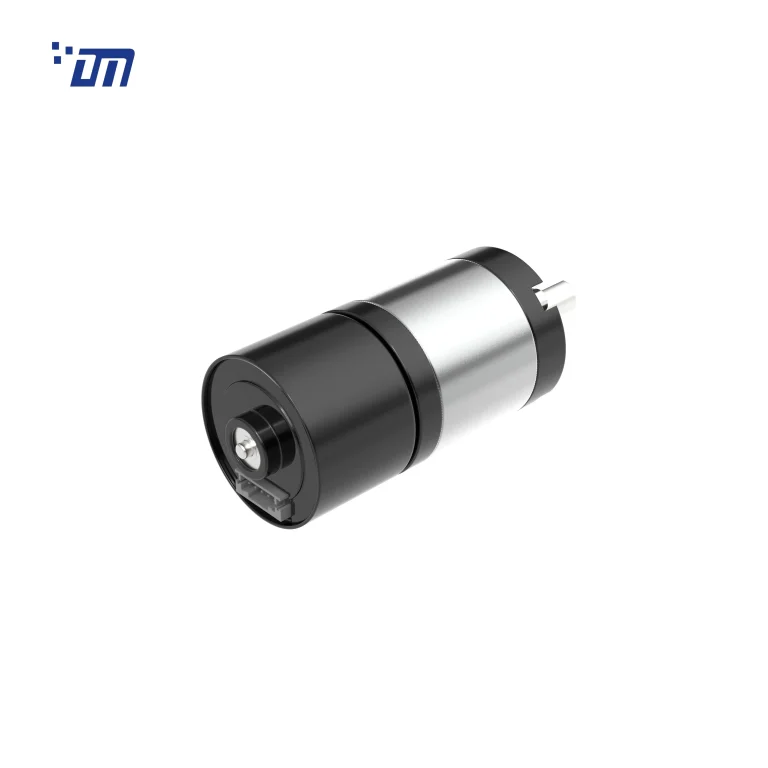

DM-36PBL3626

Key Features
Model: DM-36PBL3626

Diamater: 36mm
Voltage: 12V~24VDC
Speed: 3RPM~1500RPM
Torque: 1kg.cm~30kg.cm

1. CW/CCW
2. Brushless DC Mootor
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage, Current, Speed, Torque, Output Shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

Product Dimensions（unit:mm）

Gearbox Ratio:


Number of stages	1	2	3	4	5
Reduction Ratio i	3.7、5.2	16、19、27	51、71、100 139	189、264、369 515、721	977、1367、1910
Gearbox Length L (mm)	26.5	34.7	42.9	51.1	59.3
Breaking Torque(kgf.cm)	10	18	40	50	60
Gearbox Efficiency	90%	81%	73%	65%	59%

DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.


DC Motor Model	Rated	No Load		Max Efficiency Load				Stall
	Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-BL3625-012-3000	12	≤120	3000	≤360	2400	45	1.1	≥180	≥800
DM-BL3625-012-4500	12	≤260	4500	≤760	3300	65	2.2	≥260	≥1200
DM-BL3625-012-6000	12	≤345	6000	≤1000	4500	80	3.7	≥320	≥1600
DM-BL3625-024-3000	24	≤95	3000	≤255	2400	45	1.1	≥180	≥400
DM-BL3625-024-4500	24	≤140	4500	≤390	3300	65	2.2	≥260	≥600

Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.


DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-36PBL362500920.5-189K	9	0.1	20.5	0.45	16.2	8.37	1.4	40.4	1.8
DM-36PBL3625024247.3-14K	24	0.06	247.3	0.17	185.4	0.84	1.59	3.3	0.5
DM-36PBL36250241068.9-5.2K	24	0.1	1068.9	0.36	815.4	0.56	4.72	2.3	1.22
The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i) Gear Motor Output Torque=DC Motor TorqueGear RatioGearbox Efficiency. ( t=tmiη)
