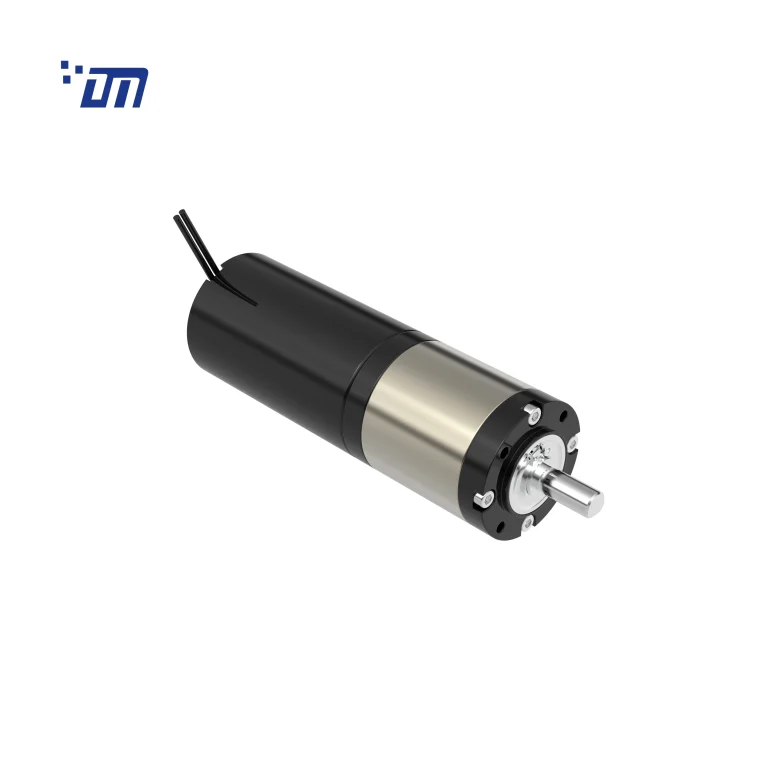

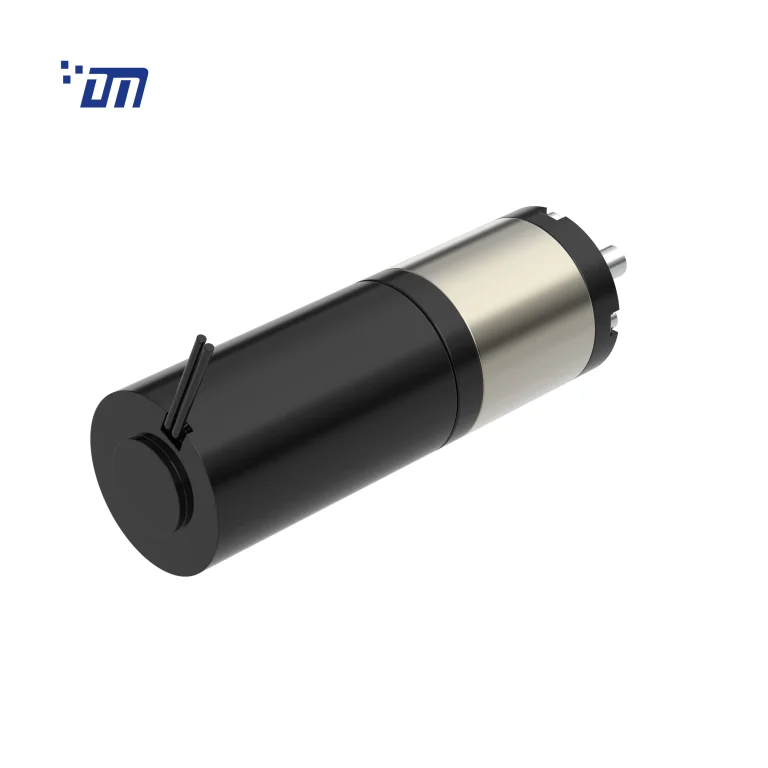

DM-42PM42ZY

Key Features
Model: DM-42PM42ZY

Diamater: 42mm
Voltage: 12V~24VDC
Speed: 2RPM-1500RPM
Torque: 1kg.cm~60kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage, Current, Speed, Torque, Output shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages 1 2 3 4
Reduction Ratio i 3.7、5 13、18、25 49、67、92、125 181、246、336、458、625
Gearbox Length L (mm) 33.2 43.6 54 64.4
Breaking Torque(kgf.cm) 15 25 50 90
Gearbox Efficiency 90% 81% 73% 65%



Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-42PM42ZY012692-13K 12 2 692 7.83 555 8 46.38 39.84 31.14
DM-42PM42ZY024138-26K 24 0.34 269.9 1.22 121 12.7 24.57 50.8 12.27
DM-42PM42ZY012360-25K 12 2.1 360 7.35 308 7.34 24.44 67.46 30.05
DM-42PM42ZY012183.6-49K 12 2.1 183.6 7 148 21 32.2 95 24.86
DM-42PM42ZY012134-67K 24 1.13 134 5.5 23.1 28.1 31.41 167 27.53
DM-42PM42ZY01286.9-92K 12 1.25 86.9 5.71 73.2 34 28.88 114.8 23.27
DM-42PM42ZY024006-625K 24 0.35 6 0.905 5.2 12.60 6.887 60.20 3.551
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
