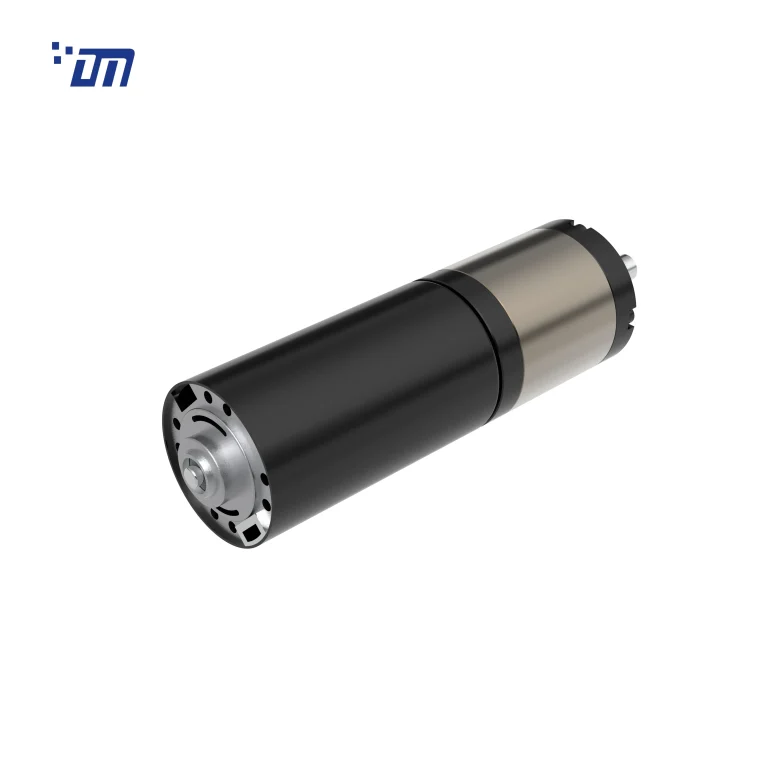

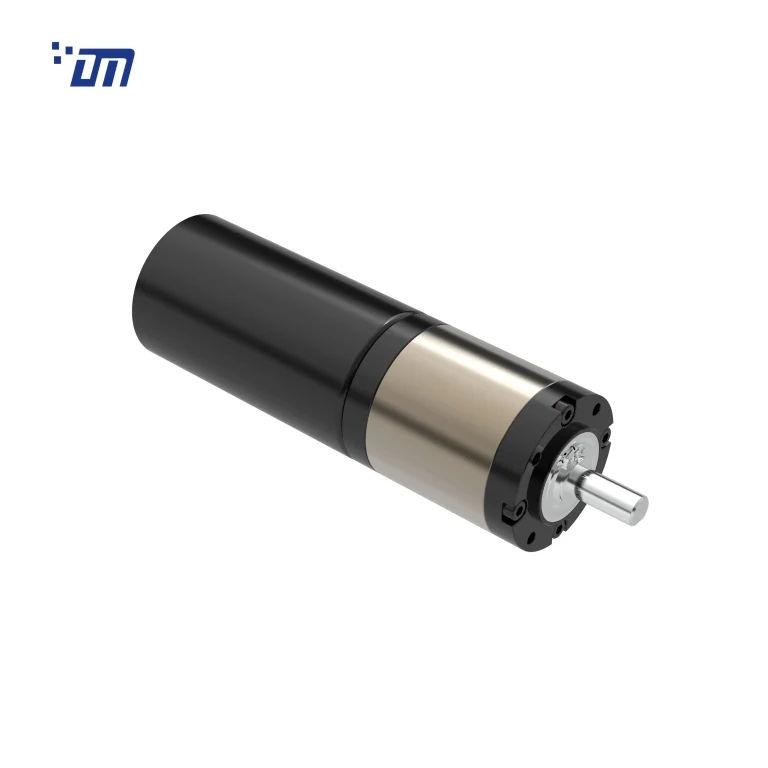

China Brushless DC Gear Motor DM 42PBL4275

Wholesale Brushless DC Gear Motor DM 42PBL4275

DM-42PBL4275

Key Features
Model: DM-42PBL4275

Diamater: 42mm
Voltage: 12V~24VDC
Speed: 4RPM~800RPM
Torque: 1kg.cm~62kg.cm

1. CW/CCW
2. Brushless DC Mootor
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage, Current, Speed, Torque, Output Shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

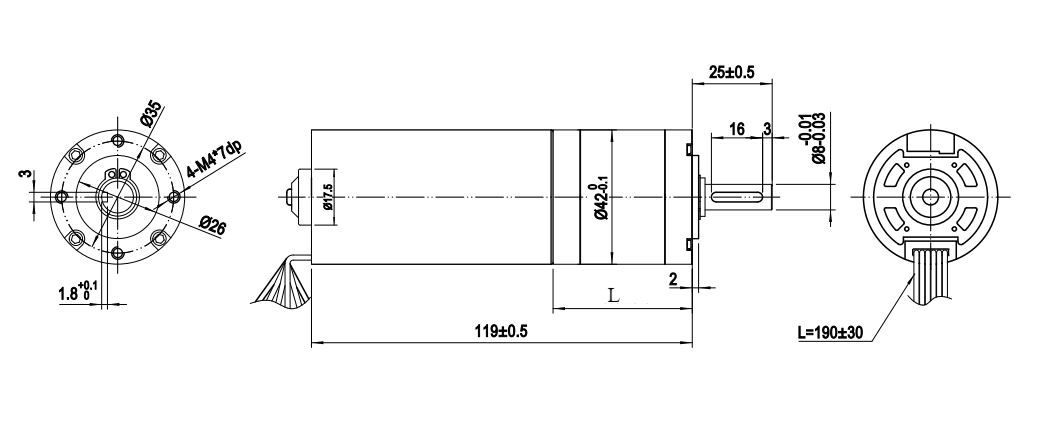

Product Dimensions（unit:mm）

Gearbox Data


Number of stages	1	2	3	4
Reduction Ratio i	3.7、5.2	13、18、25	49、67、92、125	181、246、336、458、625
Gearbox Length L (mm)	33.2	43.6	54	64.4
Breaking Torque(kgf.cm)	15	25	50	50
Gearbox Efficiency	90%	81%	73%	65%

Driving Motor Data


DC Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-42PBL4275024032-246K	24	1.1	32	2.733	26.3	98	26.60	543.3	12.32
DM-42PBL4275024112-25K	24	0.5	112	1.318	94.0	18	17.66	104	6.252
The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i) Gear Motor Output Torque=DC Motor TorqueGear RatioGearbox Efficiency. ( t=tmiη)
