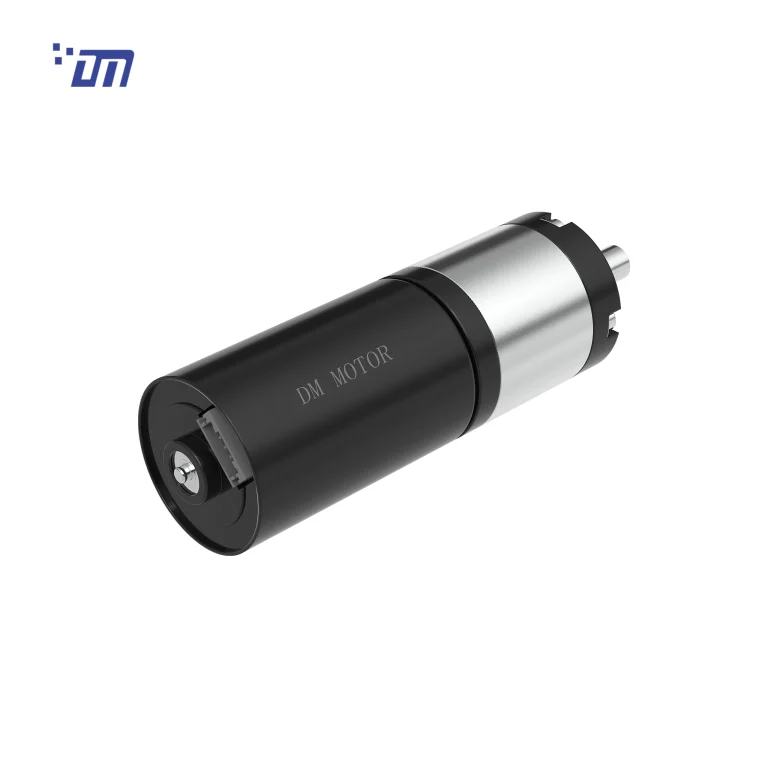

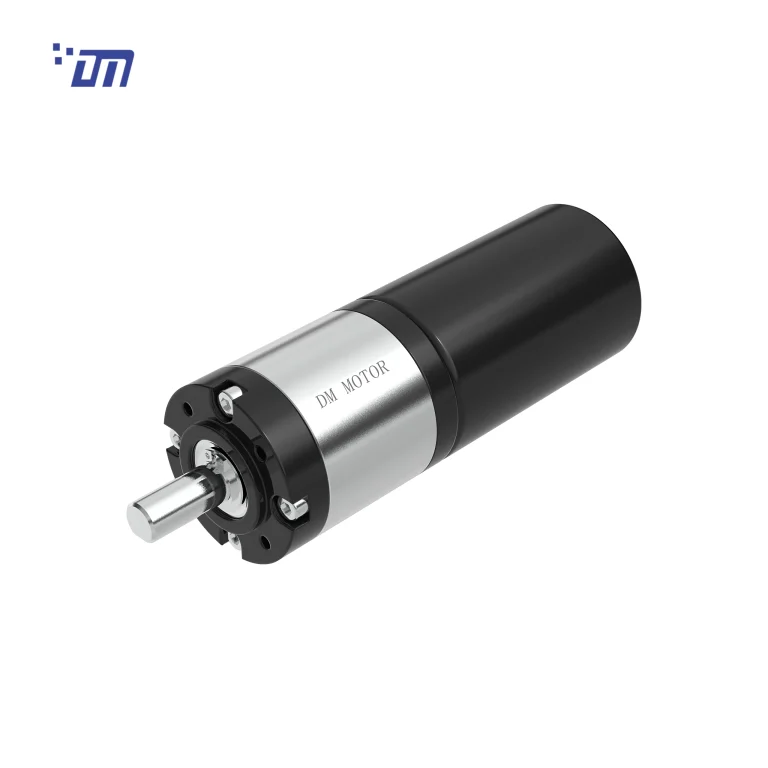

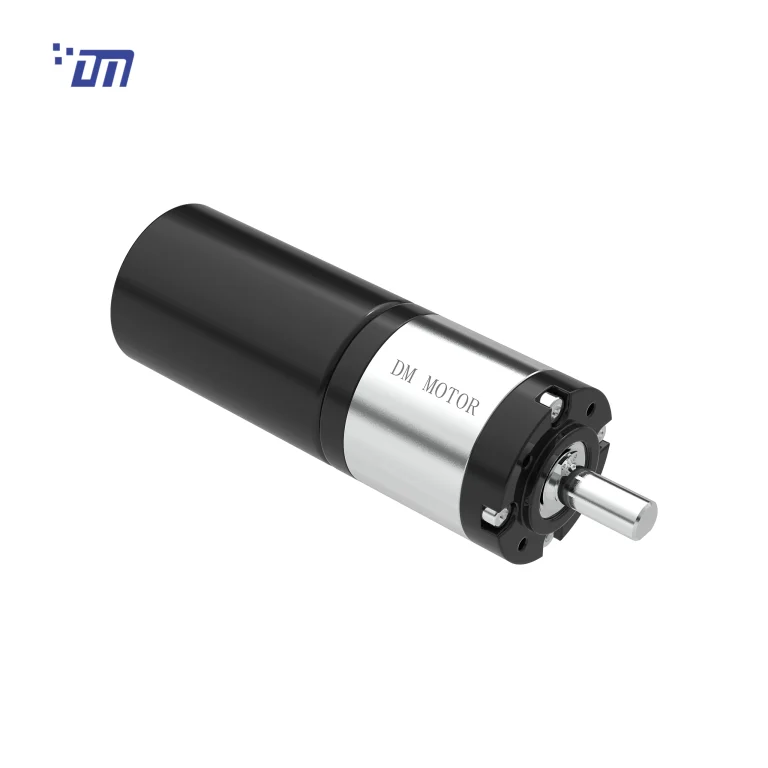

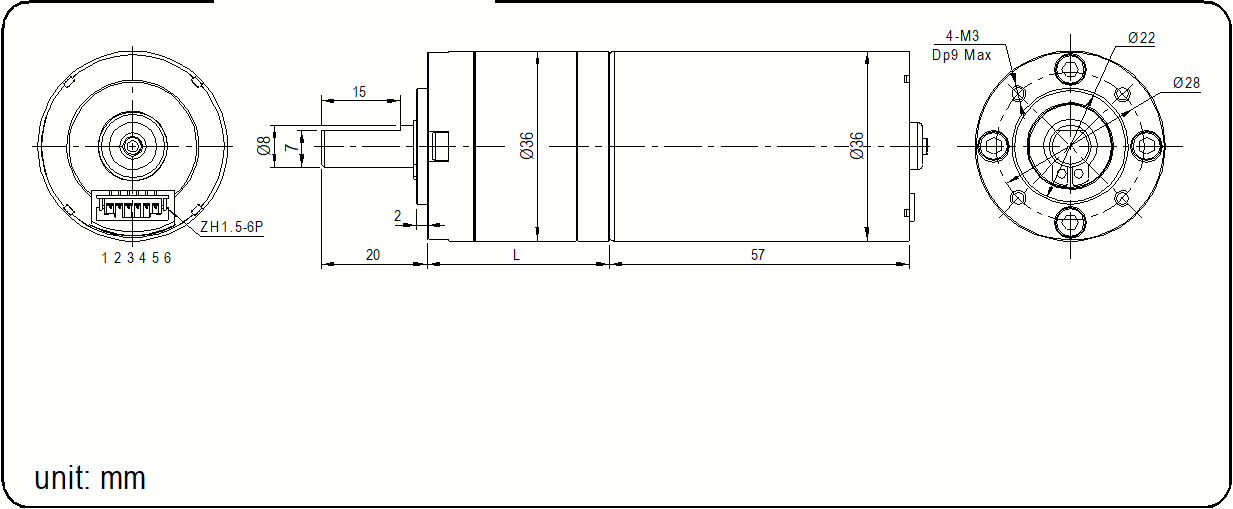

产品尺寸（单位：毫米）
变速箱数据
| Number of stages | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Reduction Ratio i | 3.7、5.2 | 14、19、27 | 51、71、100、139 | 189、264、369、515、721 | 977、1367、1910 |
| Gearbox Length L (mm) | 26.5 | 34.7 | 42.9 | 51.1 | 59.3 |
| Breaking Torque (kgf.cm) | 10 | 18 | 40 | 50 | 60 |
| Gearbox Efficiency η | 90% | 81% | 73% | 65% | 59% |
驱动电机数据
说明：以上直流电机数据用于直流减速电机的配置选型，按给定公式计算。
| DC Motor Model | Rated | No Load | Max Efficiency Load | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Volt. | Current | Speed | Current | Speed | Torque | P.out | Torque | Current | |
| V | mA | r/min | mA | r/min | g.cm | W | g.cm | mA | |
| DM-BL3657-012-3000 | 12 | ≤210 | 3000 | ≤1100 | 2770 | 268.2 | 7.7 | ≥1500 | ≥2800 |
| DM-BL3657-012-4500 | 12 | ≤280 | 4500 | ≤1550 | 3846 | 278.5 | 11.0 | ≥1600 | ≥6000 |
| DM-BL3657-012-5800 | 12 | ≤450 | 5800 | ≤3000 | 5126 | 310.0 | 16.3 | ≥1700 | ≥9000 |
| DM-BL3657-024-3000 | 24 | ≤120 | 3000 | ≤590 | 2655 | 307.8 | 8.4 | ≥1600 | ≥2000 |
| DM-BL3657-024-4500 | 24 | ≤280 | 4500 | ≤870 | 3780 | 314.7 | 12.2 | ≥1680 | ≥3000 |
| DM-BL3657-024-6000 | 24 | ≤220 | 6000 | ≤1150 | 5117 | 304.5 | 16.0 | ≥1700 | ≥4400 |
减速电机数据
说明：以上数据仅供参考。如需其他配置，可按下方给定公式计算，或直接联系我们。
| DC Gear Motor Model | Rated voltage | No Load | Max Efficiency Load | Stall | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Current | Speed | Torque | P.out | Torque | Current | |||||||||||
| V | A | r/min | A | r/min | N.m | W | N.m | A | ||||||||||
| DM-36PBL3657-0123000-3.7K | 12 | 0.2 | 864.0 | 1.3 | 608.1 | 0.12 | 7.8 | 0.4 | 3.5 | |||||||||
| DM-36PBL3657-0123000-5.2K | 12 | 0.2 | 640.3 | 1.4 | 430.4 | 0.19 | 8.5 | 0.6 | 3.5 | |||||||||
| DM-36PBL3657-0123000-14K | 12 | 0.2 | 231.9 | 1.3 | 158.6 | 0.42 | 7.1 | 1.3 | 3.5 | |||||||||
| DM-36PBL3657-0123000-19K | 12 | 0.2 | 174.2 | 1.3 | 118.5 | 0.59 | 7.3 | 1.7 | 3.5 | |||||||||
| DM-36PBL3657-0123000-27K | 12 | 0.2 | 123.3 | 1.4 | 83.0 | 0.86 | 7.5 | 2.6 | 3.5 | |||||||||
| DM-36PBL3657-0123000-51K | 12 | 0.2 | 63.9 | 1.2 | 45.0 | 1.33 | 6.3 | 4.5 | 3.5 | |||||||||
| DM-36PBL3657-0123000-71K | 12 | 0.2 | 47.7 | 1.4 | 31.6 | 2.07 | 6.9 | 6.2 | 3.5 | |||||||||
| DM-36PBL3657-0123000-100K | 12 | 0.2 | 34.1 | 1.4 | 21.9 | 3.08 | 7.1 | 8.6 | 3.5 | |||||||||
| DM-36PBL3657-0123000-139K | 12 | 0.2 | 24.1 | 1.4 | 15.9 | 3.94 | 6.6 | 11.5 | 3.5 | |||||||||
| DM-36PBL3657-0123000-189K | 12 | 0.2 | 17.8 | 1.3 | 11.7 | 4.40 | 5.4 | 12.7 | 3.5 | |||||||||
| DM-36PBL3657-0123000-264K | 12 | 0.2 | 13.0 | 1.4 | 8.4 | 6.77 | 6.0 | 19.4 | 3.5 | |||||||||
| DM-36PBL3657-0123000-369K | 12 | 0.2 | 9.2 | 1.3 | 6.2 | 8.38 | 5.4 | 25.4 | 3.5 | |||||||||
| DM-36PBL3657-0123000-515K | 12 | 0.2 | 6.4 | 1.3 | 4.4 | 11.27 | 5.1 | 35.2 | 3.5 | |||||||||
| DM-36PBL3657-0123000-721K | 12 | 0.2 | 4.7 | 1.3 | 3.1 | 13.09 | 4.3 | 39.6 | 3.5 | |||||||||
| DM-36PBL3657-0124500-3.7K | 12 | 0.3 | 1218.3 | 2.3 | 912.2 | 0.17 | 16.1 | 0.7 | 7.0 | |||||||||
| DM-36PBL3657-0124500-5.2K | 12 | 0.3 | 880.3 | 2.1 | 649.0 | 0.22 | 15.1 | 0.8 | 7.0 | |||||||||
| DM-36PBL3657-0124500-14K | 12 | 0.3 | 333.1 | 2.3 | 243.9 | 0.56 | 14.4 | 2.1 | 7.0 | |||||||||
| DM-36PBL3657-0124500-19K | 12 | 0.3 | 236.9 | 2.1 | 177.8 | 0.72 | 13.4 | 2.9 | 7.0 | |||||||||
| DM-36PBL3657-0124500-27K | 12 | 0.3 | 168.5 | 2.2 | 124.3 | 1.07 | 14.0 | 4.1 | 7.0 | |||||||||
| DM-36PBL3657-0124500-51K | 12 | 0.3 | 91.4 | 2.4 | 64.7 | 2.10 | 14.2 | 7.2 | 7.0 | |||||||||
| DM-36PBL3657-0124500-71K | 12 | 0.3 | 65.2 | 2.1 | 47.7 | 2.53 | 12.7 | 9.5 | 7.0 | |||||||||
| DM-36PBL3657-0124500-100K | 12 | 0.3 | 45.9 | 2.0 | 34.6 | 3.29 | 11.9 | 13.4 | 7.0 | |||||||||
| DM-36PBL3657-0124500-139K | 12 | 0.3 | 33.4 | 2.0 | 25.0 | 4.75 | 12.4 | 18.9 | 7.0 | |||||||||
| DM-36PBL3657-0124500-189K | 12 | 0.3 | 24.5 | 2.3 | 17.9 | 5.99 | 11.2 | 22.2 | 7.0 | |||||||||
| DM-36PBL3657-0124500-264K | 12 | 0.3 | 17.4 | 2.0 | 13.0 | 7.49 | 10.2 | 29.8 | 7.0 | |||||||||
| DM-36PBL3657-0124500-369K | 12 | 0.3 | 12.4 | 2.2 | 8.9 | 10.60 | 9.9 | 38.1 | 7.0 | |||||||||
| DM-36PBL3657-0124500-515K | 12 | 0.3 | 8.7 | 2.0 | 6.7 | 11.45 | 8.0 | 50.0 | 7.0 | |||||||||
| DM-36PBL3657-0124500-721K | 12 | 0.3 | 6.1 | 2.1 | 4.7 | 17.2 | 8.4 | 73.9 | 7.0 | |||||||||
| DM-36PBL3657-0125800-3.7K | 12 | 0.4 | 1608.5 | 3.2 | 1216.2 | 0.19 | 24.7 | 0.8 | 10.0 | |||||||||
| DM-36PBL3657-0125800-5.2K | 12 | 0.4 | 1161.7 | 3.4 | 856.4 | 0.28 | 24.7 | 1.1 | 10.0 | |||||||||
| DM-36PBL3657-0125800-14K | 12 | 0.4 | 429.1 | 3.5 | 316.9 | 0.67 | 22.1 | 2.5 | 10.0 | |||||||||
| DM-36PBL3657-0125800-19K | 12 | 0.5 | 312.6 | 3.2 | 236.8 | 0.86 | 21.3 | 3.5 | 10.0 | |||||||||
| DM-36PBL3657-0125800-27K | 12 | 0.5 | 224.9 | 3.2 | 167.7 | 1.22 | 21.5 | 4.8 | 10.0 | |||||||||
| DM-36PBL3657-0125800-51K | 12 | 0.5 | 117.5 | 3.1 | 88.2 | 1.87 | 17.3 | 8.0 | 10.0 | |||||||||
| DM-36PBL3657-0125800-71K | 12 | 0.5 | 85.8 | 3.3 | 63.1 | 3.02 | 19.9 | 11.4 | 10.0 | |||||||||
| DM-36PBL3657-0125800-100K | 12 | 0.5 | 62.0 | 2.9 | 45.3 | 3.74 | 17.8 | 13.9 | 10.0 | |||||||||
| DM-36PBL3657-0125800-139K | 12 | 0.5 | 41.4 | 3.2 | 32.4 | 5.24 | 17.8 | 24.0 | 10.0 | |||||||||
| DM-36PBL3657-0125800-189K | 12 | 0.7 | 31.1 | 3.3 | 23.8 | 5.93 | 14.7 | 28.2 | 10.0 | |||||||||
| DM-36PBL3657-0125800-264K | 12 | 0.7 | 22.1 | 2.9 | 16.9 | 8.07 | 14.3 | 34.4 | 10.0 | |||||||||
| DM-36PBL3657-0125800-369K | 12 | 0.7 | 16.0 | 3.0 | 12.5 | 11.22 | 14.6 | 50.9 | 10.0 | |||||||||
| DM-36PBL3657-0125800-515K | 12 | 0.7 | 11.5 | 3.0 | 8.8 | 16.42 | 15.2 | 70.0 | 10.0 | |||||||||
| DM-36PBL3657-0125800-721K | 12 | 0.7 | 8.3 | 3.0 | 6.2 | 20.25 | 13.1 | 79.4 | 10.0 | |||||||||
| DM-36PBL3657-0243000-3.7K | 24 | 0.1 | 769.3 | 0.6 | 602.3 | 0.12 | 7.9 | 0.6 | 2.2 | |||||||||
| DM-36PBL3657-0243000-5.2K | 24 | 0.1 | 581.1 | 0.7 | 428.1 | 0.20 | 9.0 | 0.8 | 2.2 | |||||||||
| DM-36PBL3657-0243000-14K | 24 | 0.1 | 210.8 | 0.6 | 161.4 | 0.43 | 7.2 | 1.8 | 2.2 | |||||||||
| DM-36PBL3657-0243000-19K | 24 | 0.1 | 166.0 | 0.7 | 122.5 | 0.62 | 8.0 | 2.4 | 2.2 | |||||||||
| DM-36PBL3657-0243000-27K | 24 | 0.1 | 118.6 | 0.7 | 84.7 | 0.92 | 8.2 | 3.2 | 2.2 | |||||||||
| DM-36PBL3657-0243000-51K | 24 | 0.1 | 56.8 | 0.6 | 42.6 | 1.28 | 5.7 | 5.7 | 2.2 | |||||||||
| DM-36PBL3657-0243000-71K | 24 | 0.1 | 44.1 | 0.8 | 31.0 | 2.23 | 7.2 | 7.5 | 2.2 | |||||||||
| DM-36PBL3657-0243000-100K | 24 | 0.1 | 31.8 | 0.7 | 23.0 | 2.86 | 6.9 | 10.3 | 2.2 | |||||||||
| DM-36PBL3657-0243000-139K | 24 | 0.1 | 22.2 | 0.7 | 16.5 | 3.77 | 6.5 | 14.8 | 2.2 | |||||||||
| DM-36PBL3657-0243000-189K | 24 | 0.1 | 15.1 | 0.7 | 11.6 | 4.22 | 5.1 | 18.0 | 2.2 | |||||||||
| DM-36PBL3657-0243000-264K | 24 | 0.2 | 12.1 | 0.7 | 8.7 | 5.82 | 5.3 | 22.8 | 2.2 | |||||||||
| DM-36PBL3657-0243000-369K | 24 | 0.2 | 8.5 | 0.7 | 6.3 | 8.19 | 5.4 | 31.7 | 2.2 | |||||||||
| DM-36PBL3657-0243000-515K | 24 | 0.2 | 6.1 | 0.7 | 4.47 | 12.38 | 5.8 | 46.8 | 2.2 | |||||||||
| DM-36PBL3657-0243000-721K | 24 | 0.2 | 4.2 | 0.7 | 3.12 | 18.28 | 6.0 | 69.0 | 2.2 | |||||||||
| DM-36PBL3657-0244500-3.7K | 24 | 0.2 | 1183.8 | 1.0 | 912.2 | 0.14 | 13.6 | 0.6 | 3.5 | |||||||||
| DM-36PBL3657-0244500-5.2K | 24 | 0.2 | 880.8 | 1.0 | 648.7 | 0.23 | 15.6 | 0.8 | 3.5 | |||||||||
| DM-36PBL3657-0244500-14K | 24 | 0.2 | 321.1 | 1.0 | 247.5 | 0.46 | 12.0 | 2.0 | 3.5 | |||||||||
| DM-36PBL3657-0244500-19K | 24 | 0.2 | 239.5 | 1.0 | 178.0 | 0.67 | 12.5 | 2.6 | 3.5 | |||||||||
| DM-36PBL3657-0244500-27K | 24 | 0.2 | 172.0 | 1.0 | 127.3 | 0.92 | 12.3 | 3.5 | 3.5 | |||||||||
| DM-36PBL3657-0244500-51K | 24 | 0.2 | 87.4 | 1.0 | 67.3 | 1.33 | 9.4 | 6.4 | 3.5 | |||||||||
| DM-36PBL3657-0244500-71K | 24 | 0.2 | 64.0 | 1.0 | 48.3 | 1.90 | 9.6 | 7.7 | 3.5 | |||||||||
| DM-36PBL3657-0244500-100K | 24 | 0.2 | 46.2 | 1.0 | 33.1 | 3.01 | 10.4 | 11.1 | 3.5 | |||||||||
| DM-36PBL3657-0244500-139K | 24 | 0.2 | 32.9 | 1.0 | 24.1 | 3.95 | 10.0 | 16.1 | 3.5 | |||||||||
| DM-36PBL3657-0244500-189K | 24 | 0.2 | 23.4 | 1.1 | 17.5 | 4.58 | 8.4 | 18.2 | 3.5 | |||||||||
| DM-36PBL3657-0244500-264K | 24 | 0.2 | 17.3 | 1.0 | 12.9 | 6.26 | 8.4 | 24.6 | 3.5 | |||||||||
| DM-36PBL3657-0244500-369K | 24 | 0.2 | 12.6 | 1.1 | 9.0 | 9.59 | 9.0 | 35.0 | 3.5 | |||||||||
| DM-36PBL3657-0244500-515K | 24 | 0.2 | 8.8 | 1.0 | 6.5 | 12.8 | 8.7 | 53.7 | 3.5 | |||||||||
| DM-36PBL3657-0244500-721K | 24 | 0.2 | 6.3 | 1.0 | 4.7 | 17.0 | 8.3 | 72.0 | 3.5 | |||||||||
| DM-36PBL3657-0246000-3.7K | 24 | 0.3 | 1517.3 | 1.3 | 1216.2 | 0.16 | 20.1 | 0.8 | 5.0 | |||||||||
| DM-36PBL3657-0246000-5.2K | 24 | 0.3 | 1068.8 | 1.1 | 865.4 | 0.20 | 17.6 | 1.1 | 5.0 | |||||||||
| DM-36PBL3657-0246000-14K | 24 | 0.3 | 397.3 | 1.1 | 321.0 | 0.43 | 14.6 | 2.3 | 5.0 | |||||||||
| DM-36PBL3657-0246000-19K | 24 | 0.3 | 295.7 | 1.3 | 231.4 | 0.72 | 17.4 | 3.3 | 5.0 | |||||||||
| DM-36PBL3657-0246000-27K | 24 | 0.3 | 212.8 | 1.2 | 169.3 | 0.80 | 14.3 | 4.4 | 5.0 | |||||||||
| DM-36PBL3657-0246000-51K | 24 | 0.3 | 107.3 | 1.1 | 88.8 | 1.12 | 10.4 | 7.7 | 5.0 | |||||||||
| DM-36PBL3657-0246000-71K | 24 | 0.3 | 79.9 | 1.1 | 63.3 | 1.85 | 12.3 | 10.1 | 5.0 | |||||||||
| DM-36PBL3657-0246000-100K | 24 | 0.3 | 57.1 | 1.3 | 44.5 | 2.70 | 12.6 | 14.0 | 5.0 | |||||||||
| DM-36PBL3657-0246000-139K | 24 | 0.3 | 40.9 | 1.1 | 32.7 | 3.49 | 12.0 | 19.6 | 5.0 | |||||||||
| DM-36PBL3657-0246000-189K | 24 | 0.3 | 28.5 | 1.3 | 23.8 | 4.43 | 11.0 | 26.7 | 5.0 | |||||||||
| DM-36PBL3657-0246000-264K | 24 | 0.3 | 21.4 | 1.3 | 16.8 | 6.49 | 11.4 | 30.3 | 5.0 | |||||||||
| DM-36PBL3657-0246000-369K | 24 | 0.3 | 15.6 | 1.2 | 12.0 | 8.50 | 10.7 | 43.2 | 5.0 | |||||||||
| DM-36PBL3657-0246000-515K | 24 | 0.3 | 11.1 | 1.2 | 8.66 | 11.78 | 10.7 | 61.6 | 5.0 | |||||||||
| DM-36PBL3657-0246000-721K | 24 | 0.3 | 8.0 | 1.1 | 6.20 | 14.80 | 9.6 | 75.2 | 5.0 | |||||||||
| The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio (n=nm/i); Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency (t=tm*i*η). | ||||||||||||||||||
