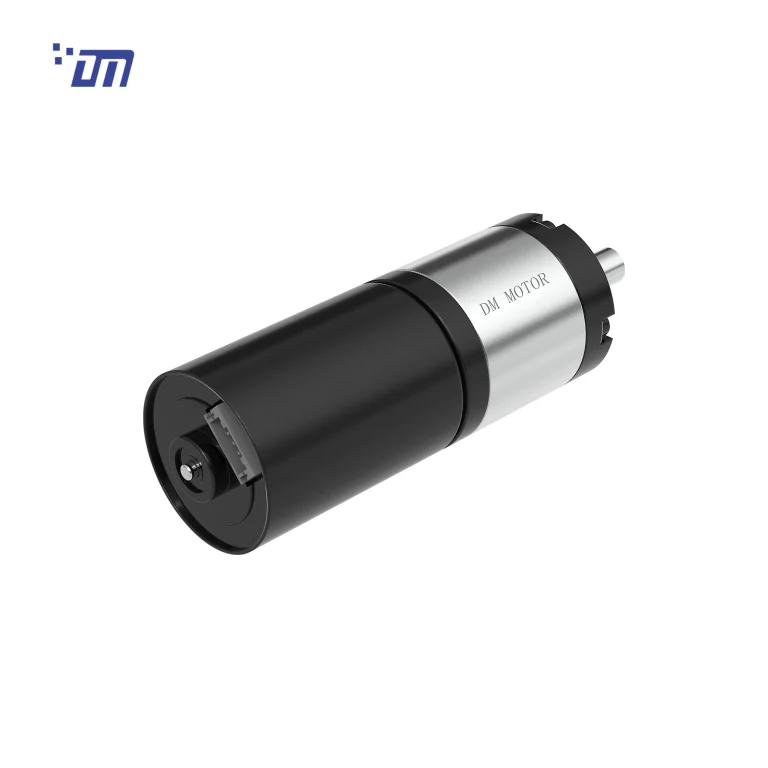

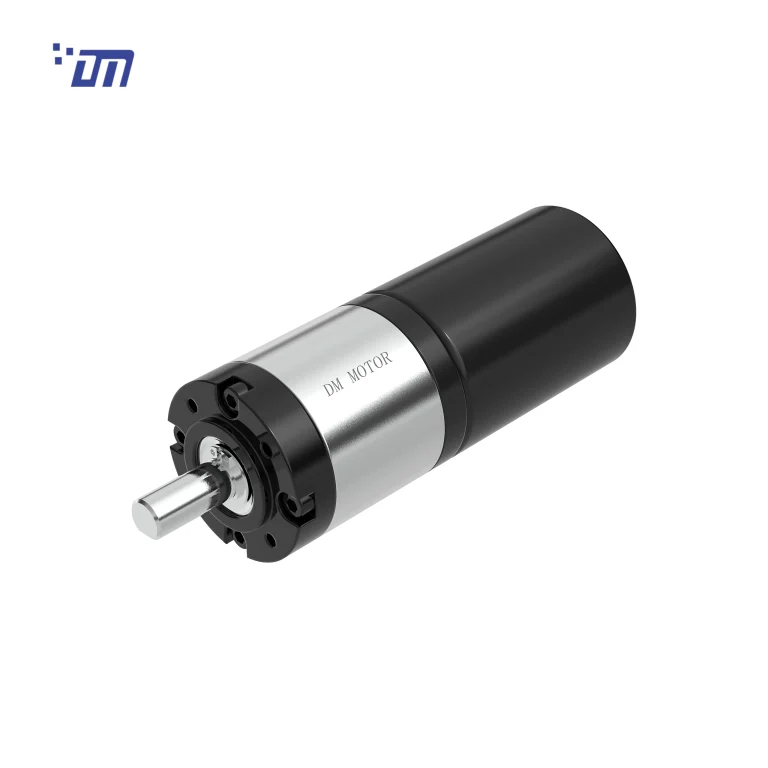

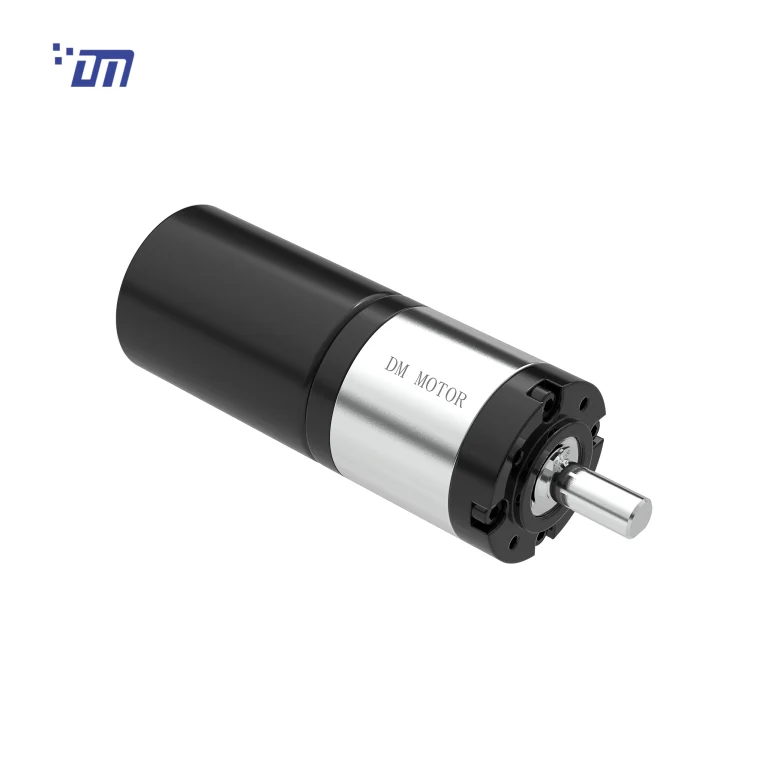

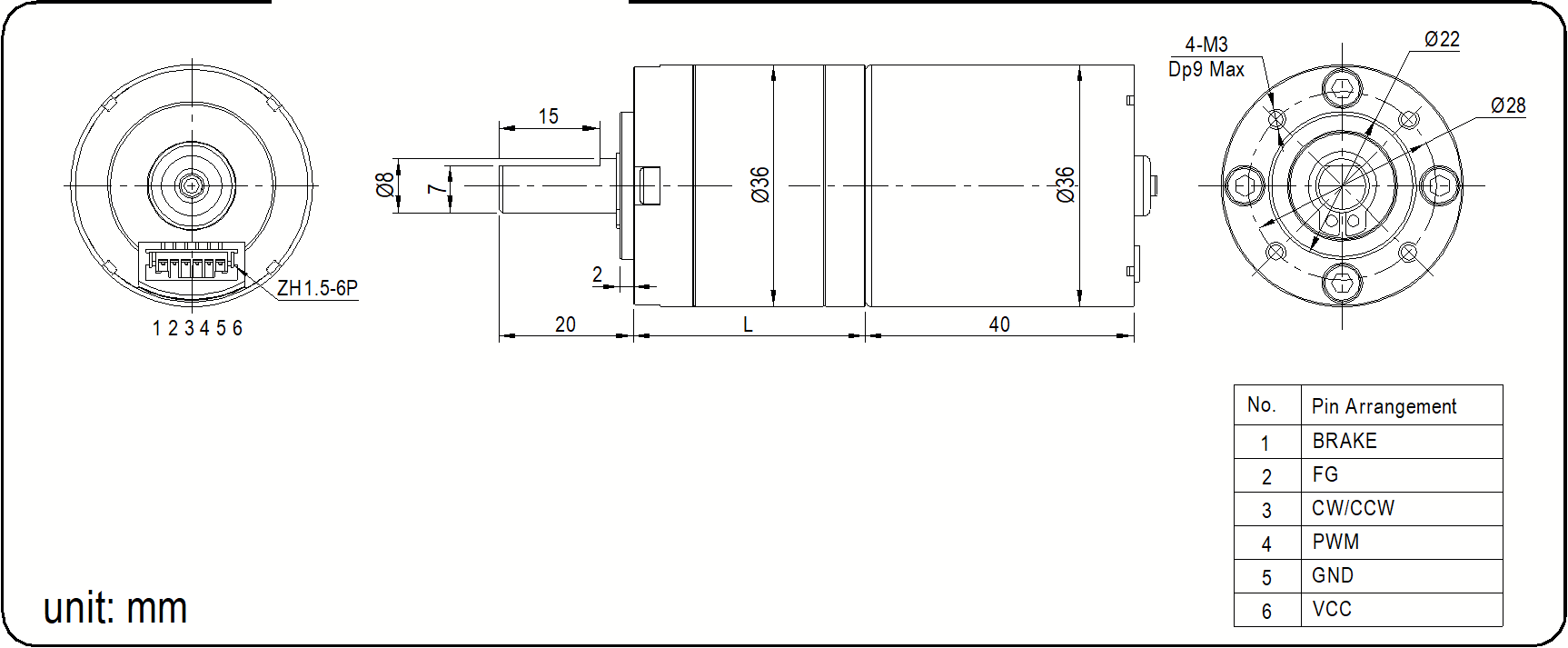

产品尺寸（单位：毫米）
变速箱数据
| Number of stages | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Reduction Ratio i | 3.7、5.2 | 14、19、27 | 51、71、100、139 | 189、264、369、515、721 | 977、1367、1910 |
| Gearbox Length L (mm) | 26.5 | 34.7 | 42.9 | 51.1 | 59.3 |
| Breaking Torque (kgf.cm) | 10 | 18 | 40 | 50 | 60 |
| Gearbox Efficiency η | 90% | 81% | 73% | 65% | 59% |
驱动电机数据
说明：以上直流电机数据用于直流减速电机的配置选型，按给定公式计算。
| DC Motor Model | Rated | No Load | Max Efficiency Load | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Volt. | Current | Speed | Current | Speed | Torque | P.out | Torque | Current | |
| V | mA | r/min | mA | r/min | g.cm | W | g.cm | mA | |
| DM-BL3640-012-3000 | 12 | ≤140 | 3000 | ≤650 | 2534 | 170.0 | 4.4 | ≥900 | ≥2600 |
| DM-BL3640-012-4500 | 12 | ≤220 | 4500 | ≤1100 | 3823 | 197.0 | 7.7 | ≥1060 | ≥4000 |
| DM-BL3640-012-6300 | 12 | ≤320 | 6300 | ≤1530 | 5146 | 204.3 | 11.0 | ≥1160 | ≥5400 |
| DM-BL3640-024-3000 | 24 | ≤80 | 3000 | ≤380 | 2546 | 207.7 | 5.4 | ≥1060 | ≥1300 |
| DM-BL3640-024-4500 | 24 | ≤135 | 4500 | ≤630 | 3859 | 223.3 | 8.9 | ≥1140 | ≥1600 |
| DM-BL3640-024-6000 | 24 | ≤170 | 6000 | ≤850 | 5073 | 237.0 | 12.4 | ≥1290 | ≥3300 |
减速电机数据
说明：以上数据仅供参考。如需其他配置，可按下方给定公式计算，或直接联系我们。
| DC Gear Motor Model | Rated voltage | No Load | Max Efficiency Load | Stall | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Current | Speed | Torque | P.out | Torque | Current | |||||||||||
| V | A | r/min | A | r/min | N.m | W | N.m | A | ||||||||||
| DM-36PBL3640-0123000-3.7K | 12 | 0.2 | 765.0 | 0.8 | 601.1 | 0.08 | 5.3 | 0.4 | 2.8 | |||||||||
| DM-36PBL3640-0123000-5.2K | 12 | 0.2 | 562.5 | 0.9 | 423.5 | 0.13 | 5.9 | 0.5 | 2.8 | |||||||||
| DM-36PBL3640-0123000-14K | 12 | 0.2 | 208.9 | 0.8 | 165.1 | 0.27 | 4.6 | 1.2 | 2.8 | |||||||||
| DM-36PBL3640-0123000-19K | 12 | 0.2 | 153.9 | 0.8 | 117.4 | 0.41 | 5.1 | 1.7 | 2.8 | |||||||||
| DM-36PBL3640-0123000-27K | 12 | 0.2 | 109.3 | 0.8 | 83.1 | 0.57 | 5.0 | 2.3 | 2.8 | |||||||||
| DM-36PBL3640-0123000-51K | 12 | 0.2 | 58.0 | 0.8 | 44.0 | 1.08 | 5.0 | 4.5 | 2.8 | |||||||||
| DM-36PBL3640-0123000-71K | 12 | 0.2 | 42.0 | 0.9 | 31.0 | 1.50 | 5.0 | 5.8 | 2.8 | |||||||||
| DM-36PBL3640-0123000-100K | 12 | 0.2 | 30.7 | 0.9 | 22.0 | 2.30 | 5.4 | 8.3 | 2.8 | |||||||||
| DM-36PBL3640-0123000-139K | 12 | 0.2 | 22.2 | 0.8 | 16.6 | 2.87 | 5.0 | 11.5 | 2.8 | |||||||||
| DM-36PBL3640-0123000-189K | 12 | 0.3 | 15.6 | 0.8 | 12.0 | 3.00 | 3.7 | 12.8 | 2.8 | |||||||||
| DM-36PBL3640-0123000-264K | 12 | 0.3 | 11.1 | 0.8 | 8.5 | 4.41 | 4.0 | 18.5 | 2.8 | |||||||||
| DM-36PBL3640-0123000-369K | 12 | 0.3 | 8.1 | 0.8 | 6.0 | 5.80 | 3.7 | 22.4 | 2.8 | |||||||||
| DM-36PBL3640-0123000-515K | 12 | 0.3 | 5.7 | 0.7 | 4.5 | 6.20 | 3.0 | 30.0 | 2.8 | |||||||||
| DM-36PBL3640-0123000-721K | 12 | 0.3 | 4.1 | 0.7 | 3.1 | 9.50 | 3.1 | 41.0 | 2.8 | |||||||||
| DM-36PBL3640-0124500-3.7K | 12 | 0.3 | 1163.4 | 1.6 | 917.6 | 0.12 | 11.5 | 0.6 | 6.0 | |||||||||
| DM-36PBL3640-0124500-5.2K | 12 | 0.3 | 865.1 | 2.0 | 630.3 | 0.21 | 14.0 | 0.8 | 6.0 | |||||||||
| DM-36PBL3640-0124500-14K | 12 | 0.3 | 318.2 | 1.7 | 242.8 | 0.44 | 11.3 | 1.8 | 6.0 | |||||||||
| DM-36PBL3640-0124500-19K | 12 | 0.3 | 235.6 | 1.7 | 178.5 | 0.62 | 11.5 | 2.5 | 6.0 | |||||||||
| DM-36PBL3640-0124500-27K | 12 | 0.3 | 168.2 | 1.9 | 122.7 | 0.94 | 12.1 | 3.5 | 6.0 | |||||||||
| DM-36PBL3640-0124500-51K | 12 | 0.3 | 86.6 | 1.6 | 66.6 | 1.40 | 9.7 | 6.0 | 6.0 | |||||||||
| DM-36PBL3640-0124500-71K | 12 | 0.3 | 64.7 | 1.8 | 46.5 | 2.26 | 11.0 | 8.0 | 6.0 | |||||||||
| DM-36PBL3640-0124500-100K | 12 | 0.3 | 44.8 | 1.8 | 34.0 | 2.95 | 10.5 | 12.0 | 6.0 | |||||||||
| DM-36PBL3640-0124500-139K | 12 | 0.3 | 31.6 | 1.6 | 24.9 | 3.63 | 9.5 | 17.0 | 6.0 | |||||||||
| DM-36PBL3640-0124500-189K | 12 | 0.4 | 23.8 | 1.7 | 17.6 | 4.75 | 8.8 | 18.0 | 6.0 | |||||||||
| DM-36PBL3640-0124500-264K | 12 | 0.4 | 17.2 | 1.9 | 12.5 | 7.29 | 9.6 | 26.0 | 6.0 | |||||||||
| DM-36PBL3640-0124500-369K | 12 | 0.4 | 12.2 | 1.8 | 9.1 | 9.12 | 8.7 | 35.0 | 6.0 | |||||||||
| DM-36PBL3640-0124500-515K | 12 | 0.4 | 8.8 | 1.6 | 6.7 | 10.50 | 7.4 | 43.0 | 6.0 | |||||||||
| DM-36PBL3640-0124500-721K | 12 | 0.4 | 6.0 | 1.6 | 4.7 | 15.70 | 7.8 | 73.0 | 6.0 | |||||||||
| DM-36PBL3640-0126300-3.7K | 12 | 0.4 | 1669.6 | 3.0 | 1203.2 | 0.17 | 20.9 | 0.6 | 9.0 | |||||||||
| DM-36PBL3640-0126300-5.2K | 12 | 0.4 | 1246.3 | 3.0 | 876.6 | 0.24 | 21.6 | 0.8 | 9.0 | |||||||||
| DM-36PBL3640-0126300-14K | 12 | 0.4 | 452.5 | 3.2 | 316.9 | 0.58 | 19.2 | 1.9 | 9.0 | |||||||||
| DM-36PBL3640-0126300-19K | 12 | 0.4 | 336.9 | 3.1 | 233.8 | 0.79 | 19.4 | 2.5 | 9.0 | |||||||||
| DM-36PBL3640-0126300-27K | 12 | 0.4 | 240.8 | 3.1 | 166.2 | 1.12 | 19.5 | 3.6 | 9.0 | |||||||||
| DM-36PBL3640-0126300-51K | 12 | 0.4 | 123.9 | 3.0 | 87.3 | 1.84 | 16.8 | 6.2 | 9.0 | |||||||||
| DM-36PBL3640-0126300-71K | 12 | 0.4 | 91.7 | 2.9 | 65.5 | 2.48 | 17.0 | 8.6 | 9.0 | |||||||||
| DM-36PBL3640-0126300-100K | 12 | 0.4 | 65.2 | 3.1 | 45.3 | 3.76 | 17.8 | 12.0 | 9.0 | |||||||||
| DM-36PBL3640-0126300-139K | 12 | 0.5 | 45.9 | 3.1 | 32.2 | 5.15 | 17.4 | 17.0 | 9.0 | |||||||||
| DM-36PBL3640-0126300-189K | 12 | 0.5 | 33.7 | 3.0 | 23.7 | 5.75 | 14.3 | 19.4 | 9.0 | |||||||||
| DM-36PBL3640-0126300-264K | 12 | 0.5 | 24.7 | 3.2 | 17.0 | 8.86 | 15.7 | 28.2 | 9.0 | |||||||||
| DM-36PBL3640-0126300-369K | 12 | 0.5 | 17.2 | 3.1 | 12.4 | 10.94 | 14.2 | 39.0 | 9.0 | |||||||||
| DM-36PBL3640-0126300-515K | 12 | 0.5 | 12.5 | 3.2 | 8.5 | 15.68 | 14 | 48.0 | 9.0 | |||||||||
| DM-36PBL3640-0126300-721K | 12 | 0.5 | 8.7 | 3.0 | 6.2 | 21.60 | 14.1 | 76.0 | 9.0 | |||||||||
| DM-36PBL3640-0243000-3.7K | 24 | 0.1 | 798.7 | 0.6 | 607.3 | 0.12 | 7.3 | 0.5 | 1.8 | |||||||||
| DM-36PBL3640-0243000-5.2K | 24 | 0.1 | 572.2 | 0.9 | 431.6 | 0.16 | 7.4 | 0.7 | 1.8 | |||||||||
| DM-36PBL3640-0243000-14K | 24 | 0.1 | 221.1 | 0.6 | 161.3 | 0.41 | 6.9 | 1.5 | 1.8 | |||||||||
| DM-36PBL3640-0243000-19K | 24 | 0.1 | 154.7 | 0.9 | 120.5 | 0.48 | 6.0 | 2.0 | 1.8 | |||||||||
| DM-36PBL3640-0243000-27K | 24 | 0.1 | 111.5 | 0.9 | 83.3 | 0.75 | 6.5 | 2.9 | 1.8 | |||||||||
| DM-36PBL3640-0243000-51K | 24 | 0.1 | 61.6 | 0.6 | 44.1 | 1.47 | 6.8 | 5.0 | 1.8 | |||||||||
| DM-36PBL3640-0243000-71K | 24 | 0.1 | 43.1 | 0.9 | 31.0 | 1.94 | 6.3 | 6.9 | 1.8 | |||||||||
| DM-36PBL3640-0243000-100K | 24 | 0.1 | 30.8 | 1.0 | 22.2 | 2.87 | 6.7 | 10.0 | 1.8 | |||||||||
| DM-36PBL3640-0243000-139K | 24 | 0.1 | 21.7 | 0.9 | 16.4 | 3.44 | 5.9 | 14.0 | 1.8 | |||||||||
| DM-36PBL3640-0243000-189K | 24 | 0.2 | 16.6 | 0.6 | 11.7 | 4.69 | 5.8 | 16.0 | 1.8 | |||||||||
| DM-36PBL3640-0243000-264K | 24 | 0.2 | 11.2 | 0.9 | 8.5 | 5.42 | 4.8 | 22.0 | 1.8 | |||||||||
| DM-36PBL3640-0243000-369K | 24 | 0.2 | 8.1 | 0.9 | 6.1 | 7.23 | 4.6 | 29.0 | 1.8 | |||||||||
| DM-36PBL3640-0243000-515K | 24 | 0.2 | 5.8 | 0.9 | 4.4 | 10.57 | 4.8 | 44.0 | 1.8 | |||||||||
| DM-36PBL3640-0243000-721K | 24 | 0.2 | 4.0 | 0.9 | 3.1 | 14.9 | 4.9 | 65.0 | 1.8 | |||||||||
| DM-36PBL3640-0244500-3.7K | 24 | 0.2 | 1173.2 | 0.9 | 912.2 | 0.12 | 11.7 | 0.6 | 2.8 | |||||||||
| DM-36PBL3640-0244500-5.2K | 24 | 0.2 | 856.5 | 0.9 | 645.8 | 0.19 | 13 | 0.8 | 2.8 | |||||||||
| DM-36PBL3640-0244500-14K | 24 | 0.2 | 324.7 | 1.0 | 239.9 | 0.46 | 11.5 | 1.7 | 2.8 | |||||||||
| DM-36PBL3640-0244500-19K | 24 | 0.2 | 235.4 | 0.9 | 177.6 | 0.60 | 11.3 | 2.5 | 2.8 | |||||||||
| DM-36PBL3640-0244500-27K | 24 | 0.2 | 165.4 | 0.8 | 128 | 0.79 | 10.6 | 3.5 | 2.8 | |||||||||
| DM-36PBL3640-0244500-51K | 24 | 0.2 | 91.1 | 0.9 | 66.3 | 1.61 | 11.2 | 5.8 | 2.8 | |||||||||
| DM-36PBL3640-0244500-71K | 24 | 0.2 | 63.3 | 0.9 | 48 | 2.07 | 10.4 | 8.5 | 2.8 | |||||||||
| DM-36PBL3640-0244500-100K | 24 | 0.2 | 44.9 | 0.9 | 33.5 | 2.96 | 10.4 | 11.6 | 2.8 | |||||||||
| DM-36PBL3640-0244500-139K | 24 | 0.2 | 32.8 | 0.9 | 24.4 | 4.23 | 10.8 | 16.4 | 2.8 | |||||||||
| DM-36PBL3640-0244500-189K | 24 | 0.3 | 24.5 | 1.0 | 17.3 | 4.93 | 9.0 | 16.6 | 2.8 | |||||||||
| DM-36PBL3640-0244500-264K | 24 | 0.3 | 17.2 | 1.0 | 12.4 | 7.23 | 9.4 | 26.0 | 2.8 | |||||||||
| DM-36PBL3640-0244500-369K | 24 | 0.3 | 12.4 | 0.9 | 9 | 9.10 | 8.6 | 32.7 | 2.8 | |||||||||
| DM-36PBL3640-0244500-515K | 24 | 0.3 | 8.7 | 0.8 | 6.6 | 9.22 | 6.4 | 38.9 | 2.8 | |||||||||
| DM-36PBL3640-0244500-721K | 24 | 0.3 | 6.3 | 0.9 | 4.6 | 15.4 | 7.5 | 57.0 | 2.8 | |||||||||
| DM-36PBL3640-0246000-3.7K | 24 | 0.3 | 1506.5 | 1.2 | 1210.87 | 0.13 | 16.9 | 0.7 | 4.5 | |||||||||
| DM-36PBL3640-0246000-5.2K | 24 | 0.3 | 1101.2 | 1.2 | 878.8 | 0.19 | 17.3 | 0.9 | 4.5 | |||||||||
| DM-36PBL3640-0246000-14K | 24 | 0.3 | 412.0 | 1.2 | 328.79 | 0.45 | 15.6 | 2.2 | 4.5 | |||||||||
| DM-36PBL3640-0246000-19K | 24 | 0.3 | 298.7 | 1.1 | 239.1 | 0.62 | 15.4 | 3.0 | 4.5 | |||||||||
| DM-36PBL3640-0246000-27K | 24 | 0.3 | 215.2 | 1.2 | 168.3 | 0.93 | 16.3 | 4.2 | 4.5 | |||||||||
| DM-36PBL3640-0246000-51K | 24 | 0.3 | 111.9 | 1.2 | 87.2 | 1.72 | 15.7 | 7.7 | 4.5 | |||||||||
| DM-36PBL3640-0246000-71K | 24 | 0.3 | 81.0 | 1.2 | 64.3 | 2.16 | 14.6 | 10.4 | 4.5 | |||||||||
| DM-36PBL3640-0246000-100K | 24 | 0.3 | 58.6 | 1.3 | 44.1 | 3.56 | 16.5 | 14.0 | 4.5 | |||||||||
| DM-36PBL3640-0246000-139K | 24 | 0.3 | 41.8 | 1.2 | 32.8 | 4.29 | 14.7 | 19.1 | 4.5 | |||||||||
| DM-36PBL3640-0246000-189K | 24 | 0.4 | 29.9 | 1.2 | 23.7 | 4.70 | 11.7 | 22.0 | 4.5 | |||||||||
| DM-36PBL3640-0246000-264K | 24 | 0.4 | 21.9 | 1.3 | 16.5 | 7.40 | 12.8 | 30 | 4.5 | |||||||||
| DM-36PBL3640-0246000-369K | 24 | 0.4 | 15.7 | 1.2 | 12.1 | 9.15 | 11.6 | 40.0 | 4.5 | |||||||||
| DM-36PBL3640-0246000-515K | 24 | 0.4 | 11.4 | 1.2 | 8.7 | 11.0 | 10.0 | 47.1 | 4.5 | |||||||||
| DM-36PBL3640-0246000-721K | 24 | 0.4 | 8.2 | 1.2 | 6.2 | 15.8 | 10.2 | 65.0 | 4.5 | |||||||||
| The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio (n=nm/i); Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency (t=tm*i*η). | ||||||||||||||||||
