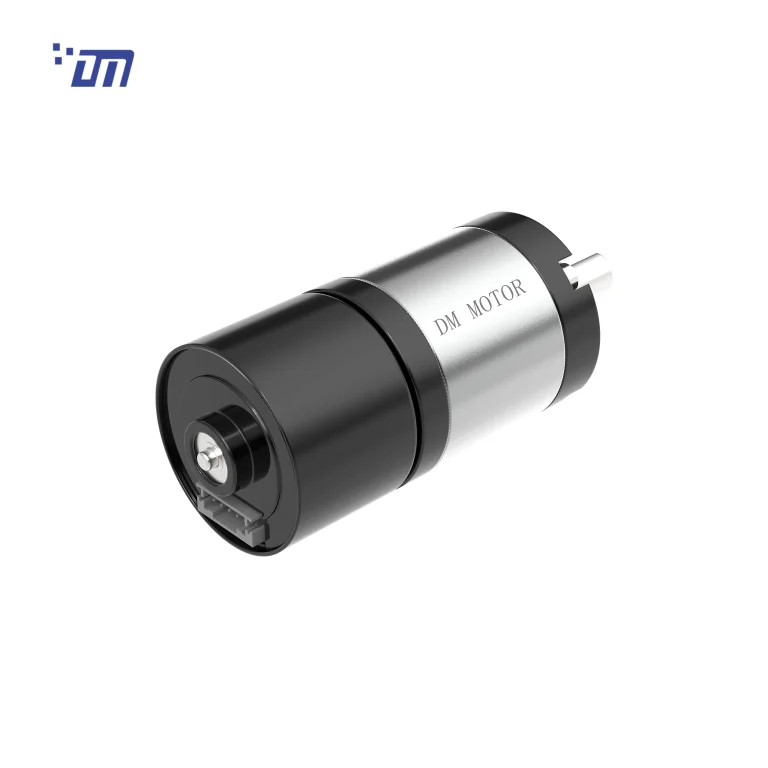

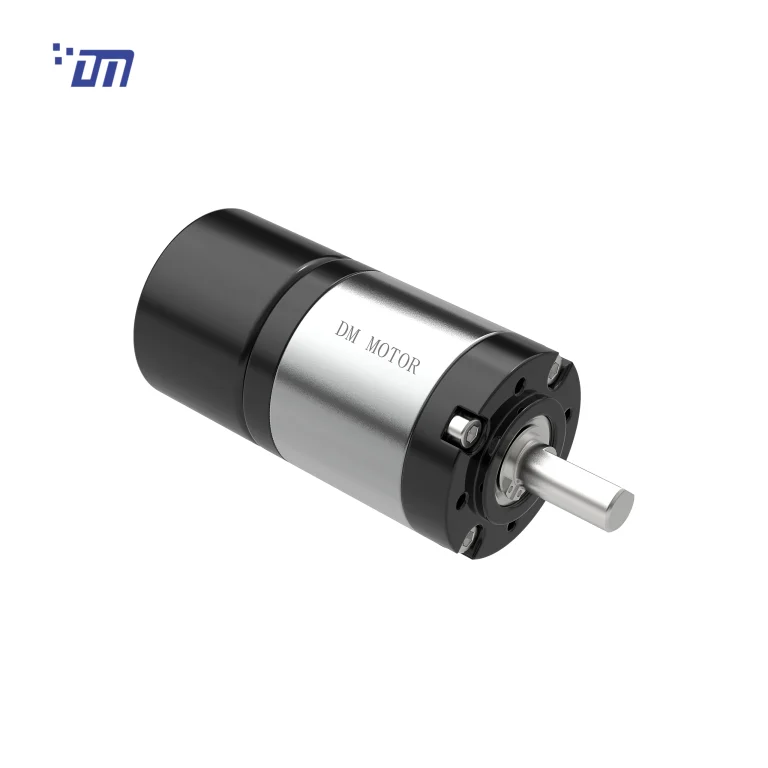

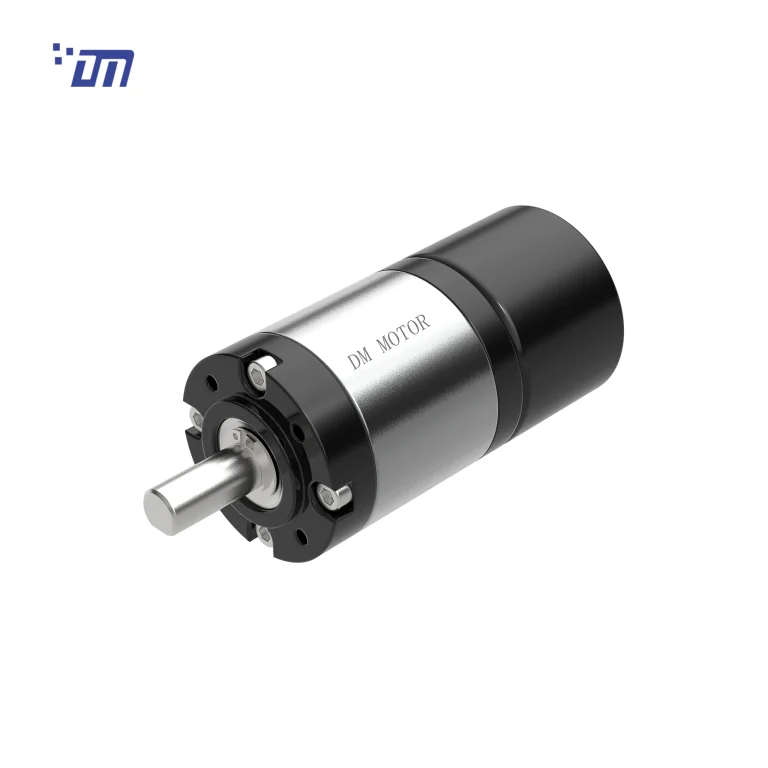

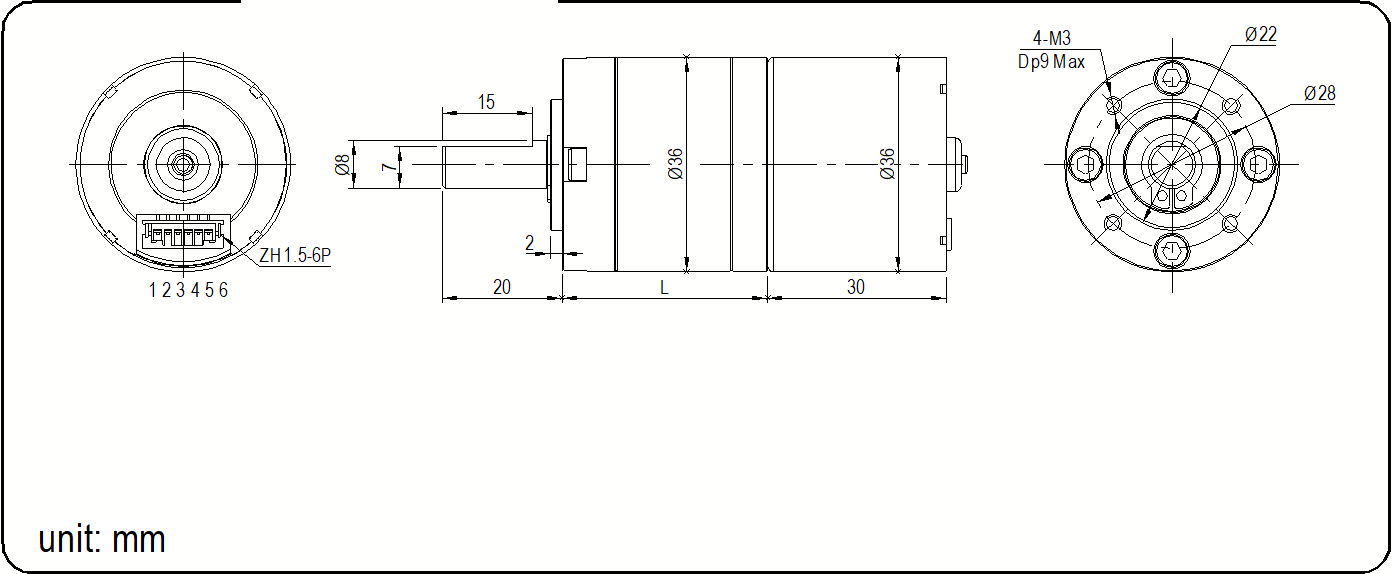

产品尺寸（单位：毫米）
变速箱数据
| Number of stages | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Reduction Ratio i | 3.7、5.2 | 14、19、27 | 51、71、100、139 | 189、264、369、515、721 | 977、1367、1910 |
| Gearbox Length L (mm) | 26.5 | 34.7 | 42.9 | 51.1 | 59.3 |
| Breaking Torque (kgf.cm) | 10 | 18 | 40 | 50 | 60 |
| Gearbox Efficiency η | 90% | 81% | 73% | 65% | 59% |
驱动电机数据
说明：以上直流电机数据用于直流减速电机的配置选型，按给定公式计算。
| DC Motor Model | Rated | No Load | Max Efficiency Load | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Volt. | Current | Speed | Current | Speed | Torque | P.out | Torque | Current | |
| V | mA | r/min | mA | r/min | g.cm | W | g.cm | mA | |
| DM-BL3630-012-3000 | 12 | ≤100 | 3000 | ≤430 | 2480 | 107.3 | 2.7 | ≥500 | ≥1350 |
| DM-BL3630-012-4500 | 12 | ≤145 | 4500 | ≤710 | 3818 | 129.1 | 5.0 | ≥690 | ≥2600 |
| DM-BL3630-012-6000 | 12 | ≤210 | 6000 | ≤1050 | 5086 | 142.0 | 7.4 | ≥760 | ≥3800 |
| DM-BL3630-024-3000 | 24 | ≤70 | 3000 | ≤220 | 2374 | 112.0 | 2.8 | ≥430 | ≥530 |
| DM-BL3630-024-4500 | 24 | ≤95 | 4500 | ≤340 | 3606 | 123.0 | 4.6 | ≥510 | ≥900 |
| DM-BL3630-024-6000 | 24 | ≤135 | 6000 | ≤590 | 4982 | 161.3 | 8.3 | ≥790 | ≥1900 |
减速电机数据
说明：以上数据仅供参考。如需其他配置，可按下方给定公式计算，或直接联系我们。
| DC Gear Motor Model | Rated voltage | No Load | Max Efficiency Load | Stall | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Current | Speed | Current | Speed | Torque | P.out | Torque | Current | |||||||||||
| V | A | r/min | A | r/min | N.m | W | N.m | A | ||||||||||
| DM-36PBL3630-0123000-3.7K | 12 | 0.2 | 782.5 | 0.5 | 615.9 | 0.05 | 2.9 | 0.2 | 1.7 | |||||||||
| DM-36PBL3630-0123000-5.2K | 12 | 0.2 | 543.8 | 0.5 | 439.9 | 0.06 | 2.6 | 0.3 | 1.7 | |||||||||
| DM-36PBL3630-0123000-14K | 12 | 0.2 | 213.7 | 0.5 | 164.3 | 0.16 | 2.7 | 0.7 | 1.7 | |||||||||
| DM-36PBL3630-0123000-19K | 12 | 0.2 | 149.6 | 0.5 | 117.7 | 0.21 | 2.6 | 1.0 | 1.7 | |||||||||
| DM-36PBL3630-0123000-27K | 12 | 0.2 | 108.6 | 0.5 | 82.5 | 0.33 | 2.9 | 1.4 | 1.7 | |||||||||
| DM-36PBL3630-0123000-51K | 12 | 0.2 | 57.5 | 0.5 | 43.5 | 0.56 | 2.5 | 2.3 | 1.7 | |||||||||
| DM-36PBL3630-0123000-71K | 12 | 0.2 | 40.9 | 0.5 | 31.4 | 0.75 | 2.5 | 3.2 | 1.7 | |||||||||
| DM-36PBL3630-0123000-100K | 12 | 0.2 | 30.0 | 0.5 | 22.6 | 1.08 | 2.6 | 4.4 | 1.7 | |||||||||
| DM-36PBL3630-0123000-139K | 12 | 0.3 | 21.2 | 0.5 | 15.9 | 1.55 | 2.6 | 6.3 | 1.7 | |||||||||
| DM-36PBL3630-0123000-189K | 12 | 0.3 | 15.4 | 0.5 | 12.0 | 1.58 | 2.0 | 7.3 | 1.7 | |||||||||
| DM-36PBL3630-0123000-264K | 12 | 0.3 | 10.9 | 0.5 | 8.6 | 2.21 | 2.0 | 10.5 | 1.7 | |||||||||
| DM-36PBL3630-0123000-369K | 12 | 0.3 | 8.2 | 0.5 | 6.2 | 3.16 | 2.0 | 13.0 | 1.7 | |||||||||
| DM-36PBL3630-0123000-515K | 12 | 0.3 | 5.4 | 0.4 | 4.4 | 3.51 | 1.6 | 19.8 | 1.7 | |||||||||
| DM-36PBL3630-0123000-721K | 12 | 0.3 | 4.1 | 0.5 | 3.14 | 5.95 | 2.0 | 24.8 | 1.7 | |||||||||
| DM-36PBL3630-0124500-3.7K | 12 | 0.2 | 1138.4 | 1.0 | 911.2 | 0.06 | 6.0 | 0.3 | 3.4 | |||||||||
| DM-36PBL3630-0124500-5.2K | 12 | 0.2 | 803.5 | 0.8 | 646.2 | 0.08 | 5.7 | 0.4 | 3.4 | |||||||||
| DM-36PBL3630-0124500-14K | 12 | 0.2 | 296.6 | 1.0 | 238.8 | 0.22 | 5.4 | 1.1 | 3.4 | |||||||||
| DM-36PBL3630-0124500-19K | 12 | 0.2 | 213.3 | 0.8 | 179.5 | 0.24 | 4.5 | 1.5 | 3.4 | |||||||||
| DM-36PBL3630-0124500-27K | 12 | 0.2 | 155.8 | 0.8 | 125.8 | 0.37 | 4.8 | 1.9 | 3.4 | |||||||||
| DM-36PBL3630-0124500-51K | 12 | 0.2 | 82.0 | 0.9 | 66.3 | 0.60 | 4.2 | 3.1 | 3.4 | |||||||||
| DM-36PBL3630-0124500-71K | 12 | 0.2 | 55.6 | 0.8 | 47.4 | 0.79 | 3.9 | 5.3 | 3.4 | |||||||||
| DM-36PBL3630-0124500-100K | 12 | 0.3 | 40.6 | 0.8 | 33.8 | 1.16 | 4.1 | 6.9 | 3.4 | |||||||||
| DM-36PBL3630-0124500-139K | 12 | 0.4 | 29.9 | 0.8 | 24.2 | 1.80 | 4.6 | 9.4 | 3.4 | |||||||||
| DM-36PBL3630-0124500-189K | 12 | 0.4 | 22.6 | 0.9 | 17.9 | 2.24 | 4.2 | 10.7 | 3.4 | |||||||||
| DM-36PBL3630-0124500-264K | 12 | 0.4 | 15.5 | 0.8 | 12.8 | 2.79 | 3.7 | 15.9 | 3.4 | |||||||||
| DM-36PBL3630-0124500-369K | 12 | 0.4 | 11.2 | 0.9 | 9.0 | 4.01 | 3.8 | 20.6 | 3.4 | |||||||||
| DM-36PBL3630-0124500-515K | 12 | 0.4 | 7.9 | 0.7 | 6.7 | 4.21 | 3.0 | 27.0 | 3.4 | |||||||||
| DM-36PBL3630-0124500-721K | 12 | 0.4 | 5.6 | 0.8 | 4.7 | 7.13 | 3.5 | 45.7 | 3.4 | |||||||||
| DM-36PBL3630-0126000-3.7K | 12 | 0.3 | 1422.1 | 1.3 | 1216.2 | 0.07 | 8.3 | 0.5 | 5.0 | |||||||||
| DM-36PBL3630-0126000-5.2K | 12 | 0.3 | 1037.7 | 1.2 | 856.2 | 0.09 | 8.5 | 0.5 | 5.0 | |||||||||
| DM-36PBL3630-0126000-14K | 12 | 0.3 | 383.6 | 1.3 | 322.6 | 0.22 | 7.4 | 1.4 | 5.0 | |||||||||
| DM-36PBL3630-0126000-19K | 12 | 0.3 | 284.4 | 1.2 | 236.6 | 0.29 | 7.3 | 1.7 | 5.0 | |||||||||
| DM-36PBL3630-0126000-27K | 12 | 0.3 | 204.4 | 1.2 | 165.8 | 0.45 | 7.9 | 2.4 | 5.0 | |||||||||
| DM-36PBL3630-0126000-51K | 12 | 0.3 | 100.8 | 1.2 | 89.0 | 0.61 | 5.7 | 5.2 | 5.0 | |||||||||
| DM-36PBL3630-0126000-71K | 12 | 0.3 | 77.4 | 1.1 | 64.5 | 0.97 | 6.5 | 5.8 | 5.0 | |||||||||
| DM-36PBL3630-0126000-100K | 12 | 0.3 | 55.1 | 1.3 | 44.0 | 1.60 | 7.4 | 7.9 | 5.0 | |||||||||
| DM-36PBL3630-0126000-139K | 12 | 0.5 | 39.5 | 1.1 | 32.8 | 1.91 | 6.5 | 11.2 | 5.0 | |||||||||
| DM-36PBL3630-0126000-189K | 12 | 0.5 | 28.3 | 1.4 | 23.7 | 2.23 | 5.5 | 13.6 | 5.0 | |||||||||
| DM-36PBL3630-0126000-264K | 12 | 0.5 | 20.7 | 1.2 | 17.0 | 3.27 | 5.8 | 18.0 | 5.0 | |||||||||
| DM-36PBL3630-0126000-369K | 12 | 0.5 | 15.3 | 1.2 | 12.1 | 4.38 | 5.5 | 21.0 | 5.0 | |||||||||
| DM-36PBL3630-0126000-515K | 12 | 0.5 | 11.0 | 1.2 | 8.5 | 5.74 | 5.1 | 25.7 | 5.0 | |||||||||
| DM-36PBL3630-0126000-721K | 12 | 0.5 | 7.7 | 1.1 | 6.3 | 7.44 | 4.9 | 42.8 | 5.0 | |||||||||
| DM-36PBL3630-0243000-3.7K | 24 | 0.1 | 774.4 | 0.2 | 616.6 | 0.04 | 2.5 | 0.2 | 0.8 | |||||||||
| DM-36PBL3630-0243000-5.2K | 24 | 0.1 | 548.2 | 0.2 | 435.2 | 0.05 | 2.4 | 0.3 | 0.8 | |||||||||
| DM-36PBL3630-0243000-14K | 24 | 0.1 | 205.3 | 0.2 | 161.3 | 0.13 | 2.2 | 0.6 | 0.8 | |||||||||
| DM-36PBL3630-0243000-19K | 24 | 0.1 | 148.8 | 0.2 | 120.0 | 0.17 | 2.1 | 0.9 | 0.8 | |||||||||
| DM-36PBL3630-0243000-27K | 24 | 0.1 | 107.9 | 0.2 | 83.8 | 0.27 | 2.4 | 1.2 | 0.8 | |||||||||
| DM-36PBL3630-0243000-51K | 24 | 0.1 | 56.0 | 0.2 | 44.8 | 0.41 | 1.9 | 2.0 | 0.8 | |||||||||
| DM-36PBL3630-0243000-71K | 24 | 0.1 | 40.8 | 0.2 | 32.1 | 0.58 | 2.0 | 2.7 | 0.8 | |||||||||
| DM-36PBL3630-0243000-100K | 24 | 0.1 | 29.6 | 0.2 | 22.4 | 0.94 | 2.2 | 3.9 | 0.8 | |||||||||
| DM-36PBL3630-0243000-139K | 24 | 0.1 | 20.8 | 0.2 | 16.7 | 1.10 | 1.9 | 5.5 | 0.8 | |||||||||
| DM-36PBL3630-0243000-189K | 24 | 0.1 | 14.9 | 0.2 | 12.0 | 1.32 | 1.7 | 6.8 | 0.8 | |||||||||
| DM-36PBL3630-0243000-264K | 24 | 0.1 | 10.8 | 0.2 | 8.6 | 1.91 | 1.7 | 9.5 | 0.8 | |||||||||
| DM-36PBL3630-0243000-369K | 24 | 0.1 | 7.8 | 0.2 | 6.2 | 2.43 | 1.6 | 12.2 | 0.8 | |||||||||
| DM-36PBL3630-0243000-515K | 24 | 0.1 | 5.4 | 0.2 | 4.4 | 3.22 | 1.5 | 17.0 | 0.8 | |||||||||
| DM-36PBL3630-0243000-721K | 24 | 0.1 | 3.9 | 0.2 | 3.1 | 4.81 | 1.5 | 22.0 | 0.8 | |||||||||
| DM-36PBL3630-0244500-3.7K | 24 | 0.1 | 1087.2 | 0.4 | 912.2 | 0.04 | 4.1 | 0.3 | 1.5 | |||||||||
| DM-36PBL3630-0244500-5.2K | 24 | 0.1 | 829.3 | 0.4 | 654.6 | 0.07 | 5.1 | 0.4 | 1.5 | |||||||||
| DM-36PBL3630-0244500-14K | 24 | 0.1 | 296.3 | 0.4 | 243.4 | 0.16 | 3.9 | 0.9 | 1.5 | |||||||||
| DM-36PBL3630-0244500-19K | 24 | 0.1 | 223.9 | 0.4 | 174.5 | 0.26 | 4.8 | 1.2 | 1.5 | |||||||||
| DM-36PBL3630-0244500-27K | 24 | 0.1 | 165.8 | 0.4 | 123.8 | 0.38 | 5.0 | 1.5 | 1.5 | |||||||||
| DM-36PBL3630-0244500-51K | 24 | 0.1 | 81.5 | 0.4 | 65.4 | 0.56 | 3.8 | 2.8 | 1.5 | |||||||||
| DM-36PBL3630-0244500-71K | 24 | 0.1 | 62.5 | 0.4 | 47.8 | 0.97 | 4.9 | 4.1 | 1.5 | |||||||||
| DM-36PBL3630-0244500-100K | 24 | 0.1 | 44.5 | 0.4 | 33.8 | 1.34 | 4.7 | 5.6 | 1.5 | |||||||||
| DM-36PBL3630-0244500-139K | 24 | 0.1 | 31.3 | 0.4 | 24.8 | 1.61 | 4.2 | 7.8 | 1.5 | |||||||||
| DM-36PBL3630-0244500-189K | 24 | 0.2 | 21.7 | 0.4 | 18.0 | 1.58 | 3.0 | 9.2 | 1.5 | |||||||||
| DM-36PBL3630-0244500-264K | 24 | 0.2 | 16.7 | 0.5 | 12.7 | 2.59 | 3.4 | 10.9 | 1.5 | |||||||||
| DM-36PBL3630-0244500-369K | 24 | 0.2 | 12.0 | 0.4 | 9.1 | 3.65 | 3.5 | 15.4 | 1.5 | |||||||||
| DM-36PBL3630-0244500-515K | 24 | 0.2 | 8.5 | 0.5 | 6.5 | 4.43 | 3.0 | 18.4 | 1.5 | |||||||||
| DM-36PBL3630-0244500-721K | 24 | 0.2 | 5.9 | 0.4 | 4.8 | 6.02 | 3.0 | 33.0 | 1.5 | |||||||||
| DM-36PBL3630-0246000-3.7K | 24 | 0.3 | 1513.4 | 0.8 | 1216.2 | 0.08 | 10.3 | 0.4 | 2.5 | |||||||||
| DM-36PBL3630-0246000-5.2K | 24 | 0.3 | 1073.3 | 0.7 | 865.4 | 0.11 | 9.8 | 0.6 | 2.5 | |||||||||
| DM-36PBL3630-0246000-14K | 24 | 0.3 | 414.6 | 0.8 | 329.4 | 0.27 | 9.3 | 1.3 | 2.5 | |||||||||
| DM-36PBL3630-0246000-19K | 24 | 0.3 | 293.4 | 0.7 | 236.8 | 0.35 | 8.7 | 1.8 | 2.5 | |||||||||
| DM-36PBL3630-0246000-27K | 24 | 0.3 | 214.2 | 0.8 | 165.4 | 0.58 | 10.0 | 2.5 | 2.5 | |||||||||
| DM-36PBL3630-0246000-51K | 24 | 0.3 | 114.7 | 0.7 | 90.6 | 0.79 | 7.5 | 3.7 | 2.5 | |||||||||
| DM-36PBL3630-0246000-71K | 24 | 0.3 | 80.3 | 0.7 | 64.3 | 1.17 | 7.9 | 5.9 | 2.5 | |||||||||
| DM-36PBL3630-0246000-100K | 24 | 0.3 | 58.2 | 0.7 | 46.4 | 1.65 | 8.0 | 8.1 | 2.5 | |||||||||
| DM-36PBL3630-0246000-139K | 24 | 0.4 | 41.3 | 0.7 | 32.9 | 2.32 | 8.0 | 11.4 | 2.5 | |||||||||
| DM-36PBL3630-0246000-189K | 24 | 0.4 | 29.9 | 0.8 | 23.4 | 2.88 | 7.1 | 13.4 | 2.5 | |||||||||
| DM-36PBL3630-0246000-264K | 24 | 0.4 | 21.5 | 0.8 | 16.8 | 4.19 | 7.4 | 19.1 | 2.5 | |||||||||
| DM-36PBL3630-0246000-369K | 24 | 0.4 | 15.4 | 0.7 | 12.4 | 4.94 | 6.4 | 24.7 | 2.5 | |||||||||
| DM-36PBL3630-0246000-515K | 24 | 0.4 | 11.53 | 0.7 | 8.62 | 6.86 | 6.2 | 27.2 | 2.5 | |||||||||
| DM-36PBL3630-0246000-721K | 24 | 0.4 | 8.1 | 0.7 | 6.2 | 8.86 | 5.8 | 38.1 | 2.5 | |||||||||
| The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio (n=nm/i); Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency (t=tm*i*η). | ||||||||||||||||||
