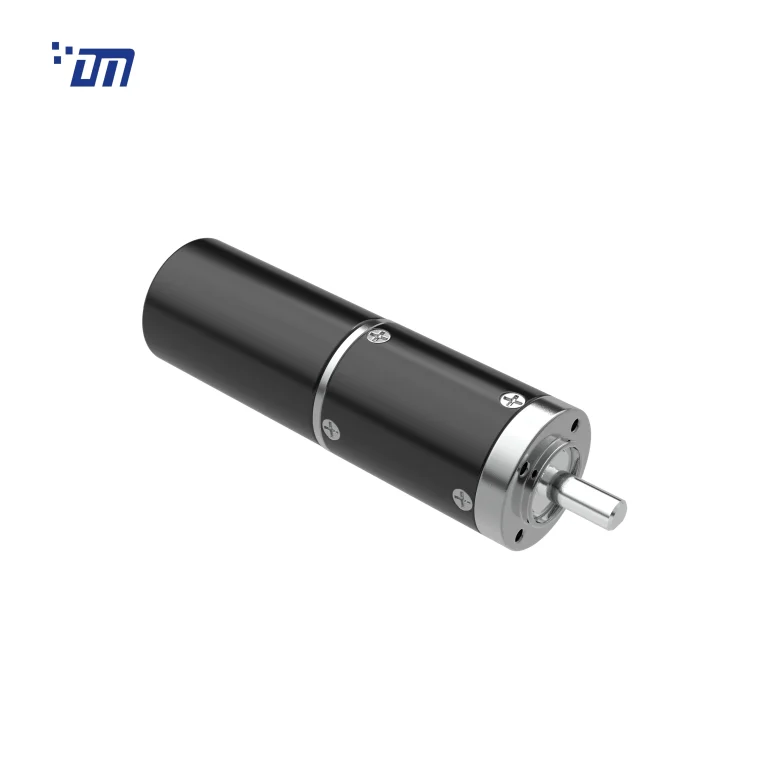

Brushless DC Gear Motor 12V DM 28PBL2847

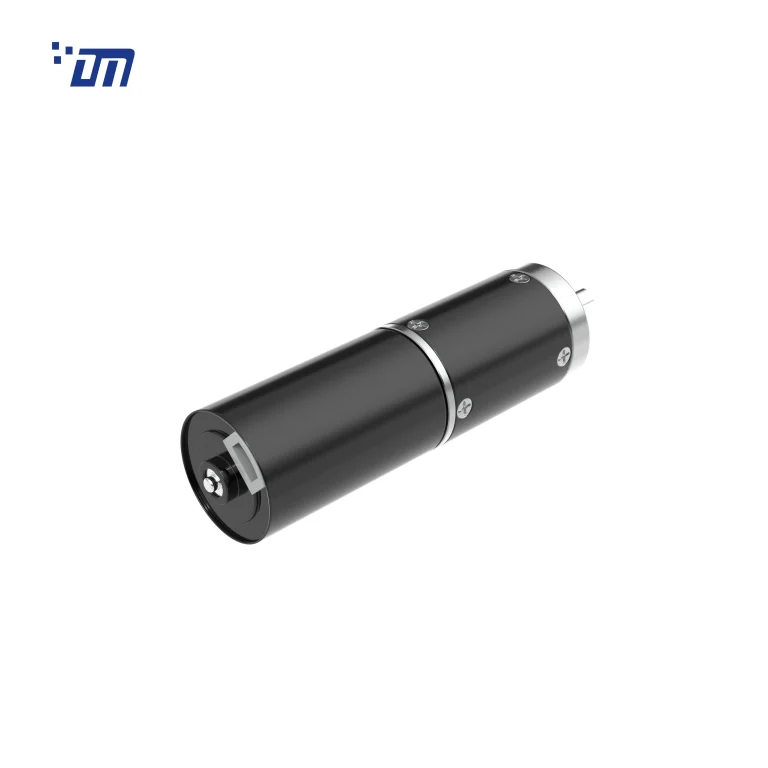

High Torque BLDC Planetary Gear Motor DM 28PBL2847

DM-28PBL2847

Key Features
Model: DM-28PBL2847

Diamater: 28mm
Voltage: 6V~24VDC
Speed: 3RPM~1500RPM
Torque: 0.5kg.cm~16kg.cm

1. CW/CCW
2. Brushless DC Mootor
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage, Current, Speed, Torque, Output Shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:

Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

Product Dimensions（unit:mm）

Gearbox Data


Number of stages	1	2	3	4
Reduction Ratio i	3.7、5.2	14、19、27	51、71、100、 139	189、264、369、515、721
Gearbox Length L (mm)	27.5	35.7	43.9	52.1
Breaking Torque(kgf.cm)	6	10	20	40
Gearbox Efficiency	90%	81%	73%	65%

Driving Motor Data


DC Motor Model	Rated	No Load		Max Efficiency Load				Stall
	Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-BL2847-012-7000	7.4	≤250	7000	≤1300	6100	122	7.6	≥800	≥5000
DM-BL2847-018-11000	12	≤300	11000	≤1600	9100	147	13.8	≥920	≥5700
DM-BL2847-024-12000	24	≤310	12000	≤1600	10000	173	18.5	≥1000	≥ 5800
