DM-32PM31ZY

Key Features
Model: DM-32PM31ZY

Diamater: 32mm
Voltage: 12V~24VDC
Speed: 3RPM-1500RPM
Torque: 0.5kg.cm~40kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage, Current, Speed, Torque, Output shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

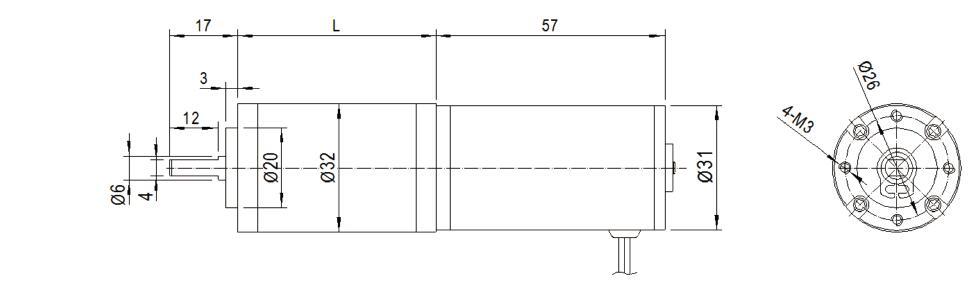

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages
1
2
3
4
Number of stages1234
Reduction Ratio i 3.7、5.2 14、19、27 51、71、100、139 189、264、369 515、721
Gearbox Length L (mm) 27.5 35.7 43,9 52.1
Breaking Torque(kgf.cm) 6 10 20 40
Gearbox Efficiency 90% 81% 73% 65%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model
Rated
No Load
Max Efficiency Load
Stall
Volt.
Current
Speed
Current
Speed
Torque
P.out
Torque
Current
V
mA
r/min
mA
r/min
gf.cm
W
gf.cm
mA
DC Motor ModelRatedNo LoadMax Efficiency LoadStall
Volt.CurrentSpeedCurrentSpeedTorqueP.outTorqueCurrent
VmAr/minmAr/mingf.cmWgf.cmmA
DM-31ZY-012-3000 12 ≤100 3000 ≤400 2200 90 2.0 ≥360 ≥1600
DM-31ZY-012-4500 12 ≤150 4500 ≤700 3300 130 4.4 ≥520 ≥2700
DM-31ZY-012-6000 12 ≤220 6000 ≤1200 4500 180 8.3 ≥720 ≥5000
DM-31ZY-024-3000 24 ≤60 3000 ≤200 2200 90 2.0 ≥360 ≥800
DM-31ZY-024-4500 24 ≤90 4500 ≤350 3300 130 4.4 ≥520 ≥1300



Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model
Rated voltage
No Load
Max Efficiency Load
Stall
Current
Speed
Current
Speed
Torque
P.out
Torque
Current
V
A
r/min
A
r/min
kgf.cm
W
kgf.cm
A
DC Gear Motor ModelRated voltageNo LoadMax Efficiency LoadStall
CurrentSpeedCurrentSpeedTorqueP.outTorqueCurrent
VAr/minAr/minkgf.cmWkgf.cmA
DM-32PM31ZY01231.7-189K 12 0,50 31.7 1.32 22.9 15.42 3.62 60.1 2.86
DM-32RP31ZY024037-189K 24 0.25 37 0.601 29.9 19.95 6.243 114.29 2.861
DM-32PM31ZY02413.6-515K 24 0.23 13.6 0.82 11.1 44.31 5.03 233.5 2.52
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
