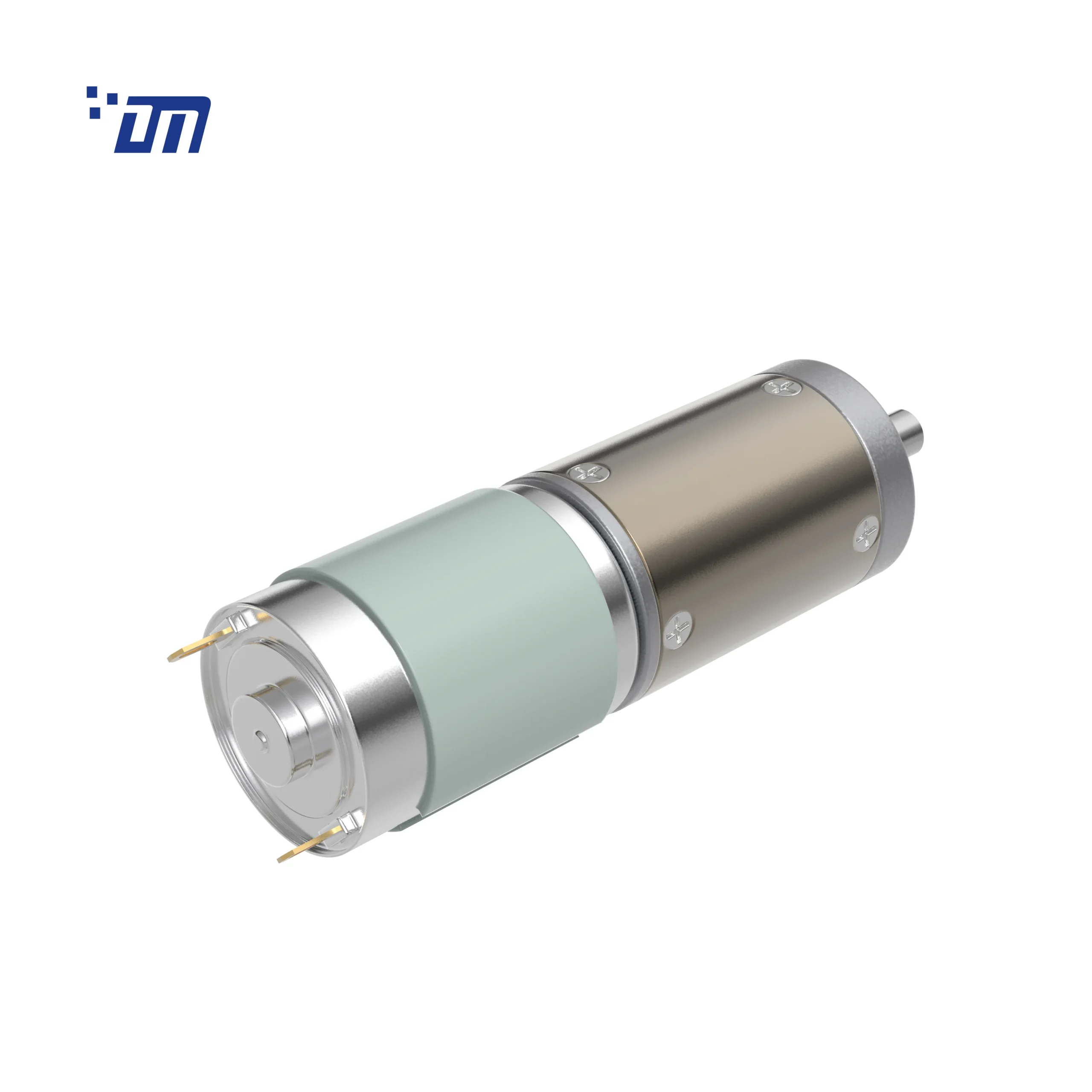

24 Volt DC Gear Motor DM 28PM395

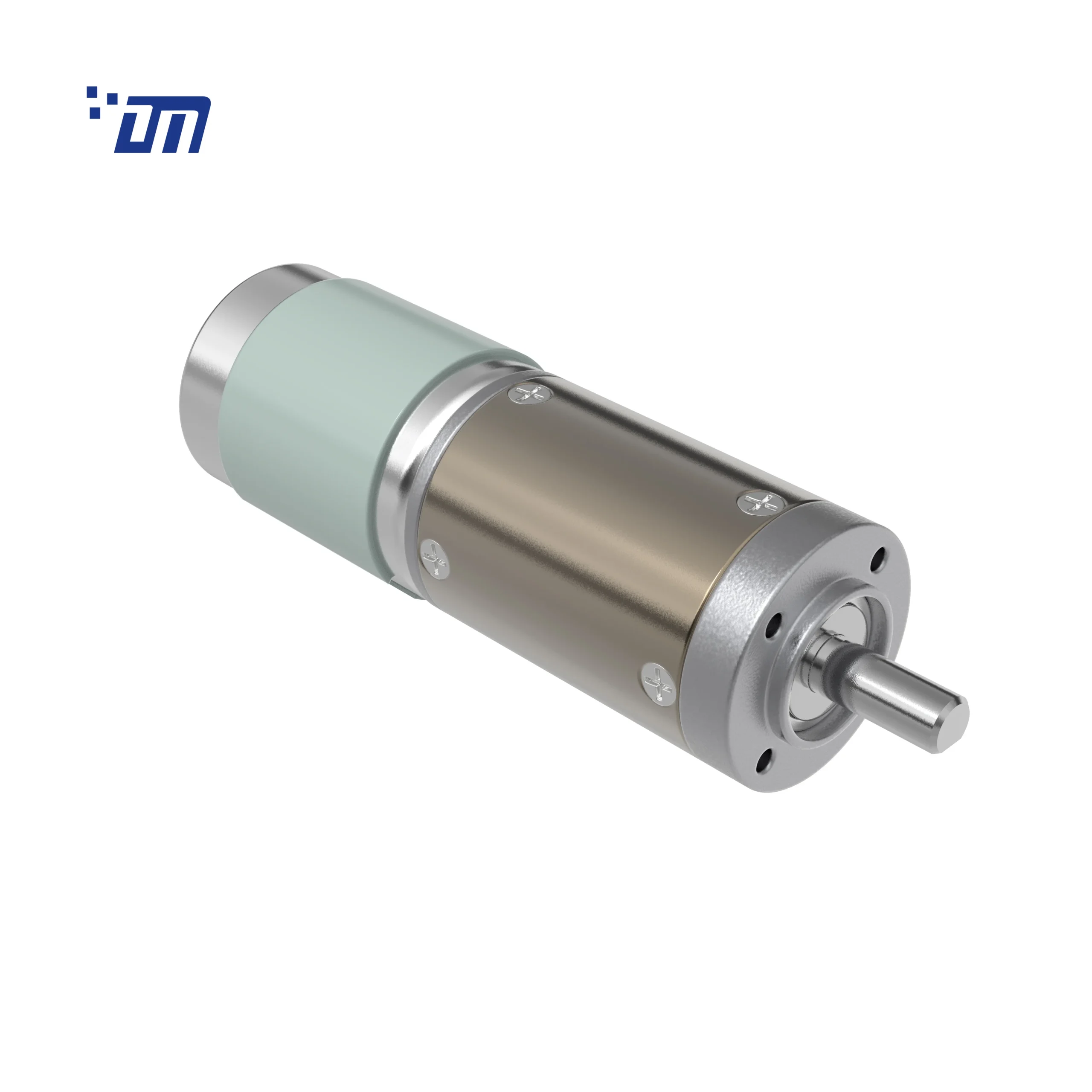

High Torque 24v DC Geared Motor DM 28PM395
Planetary Gear Motor DM 28PM395
24 Volt DC Gear Motor DM 28PM395
High Torque 24v DC Geared Motor DM 28PM395
Planetary Gear Motor DM 28PM395
QC CEQC RoHSQC SGSQC ISO

DM-28PM395

Key Features
Model: DM-28PM395

Diamater: 28mm
Voltage: 6V~24VDC
Speed: 3RPM-1500RPM
Torque: 0.5kg.cm~40kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage, Current, Speed, Torque, Output shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Product Dimensions（unit:mm）

A68b44d8 6a93 491e 9770 4bd711a5687a



Gearbox Ratio:

Number of stages 1 2 3 4
Reduction Ratio i 3.7、5.2 14、19、27 51、71、100、139 189、264、369 515、721
Gearbox Length L (mm) 27.5 35.7 43,9 52.1
Breaking Torque(kgf.cm) 6 10 20 40
Gearbox Efficiency 90% 81% 73% 65%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
DM-395-012-3000 12 ≤60 3000 ≤250 2200 65 1.5 ≥110 ≥360
DM-395-012-4500 12 ≤90 4500 ≤430 3300 80 2.7 ≥210 ≥960
DM-395-012-6000 12 ≤130 6000 ≤750 4800 100 4.9 ≥280 ≥1600
DM-395-024-3000 24 ≤40 3000 ≤120 2200 65 1.5 ≥110 ≥160
DM-395-024-4500 24 ≤60 4500 ≤220 3300 80 2.7 ≥180 ≥380



Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-28PM39501220.6-139K 12 0.07 20.6 0.21 15.6 6.0 0.95 24.5 0.66
DM-28RP39502421.5-139K 24 0.1 21.5 0.147 15.4 7.11 1.143 25.86 0.407
DM-28RP395024222.2-27K 24 0.16 222.2 0.444 174.0 2.838 5.170 13.619 1.718
DM-28RP395024147-51K 24 0.44 147 0.697 107.5 6.06 6.821 28.23 2.517
DM-28RP395024075-100K 24 0.2 75 0.521 59.1 8.51 5.263 46.63 2.354
DM-28PM39501288.3-51K 12 0.15 88.3 0.5 67.0 3.03 2.08 12.5 1.58
DM-28PM39501244.1-100K 12 0.15 44.1 0.49 32.4 6.4 2.12 24.0 1.44
DM-28PM39502412.2-369K 24 0.09 12.2 0.34 9.2 21.09 1.99 76.5 0.72
DM-28PM39502473.2-71K 24 0.26 73.2 0.66 54.9 7.52 4.23 28.27 1.36
DM-28PM395024012-369K 24 0.33 12 0.609 9.1 4.128 3.919 16.994 1.944
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
