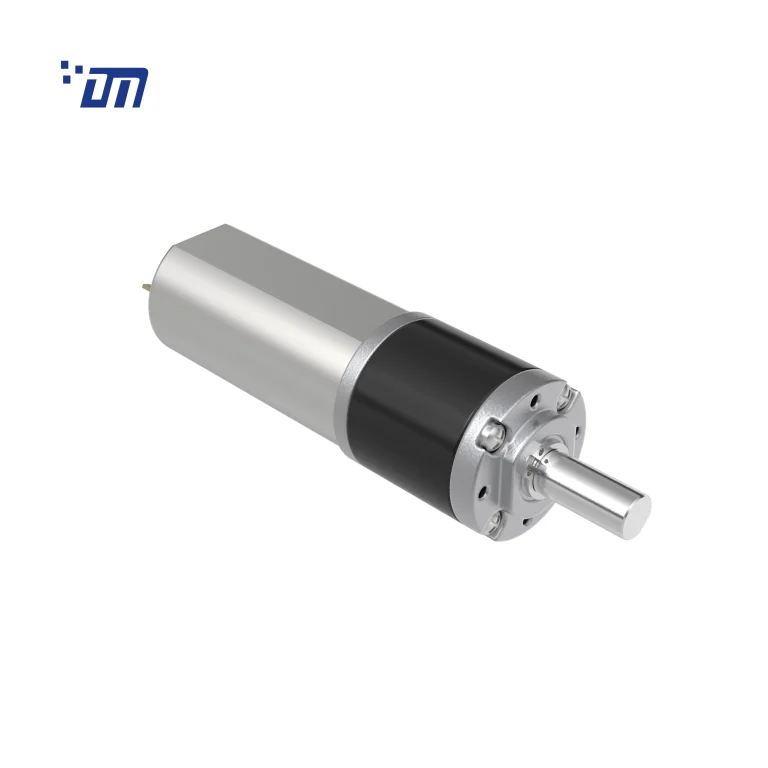

High Torque Planetary Gear Motor DM 22PM2140

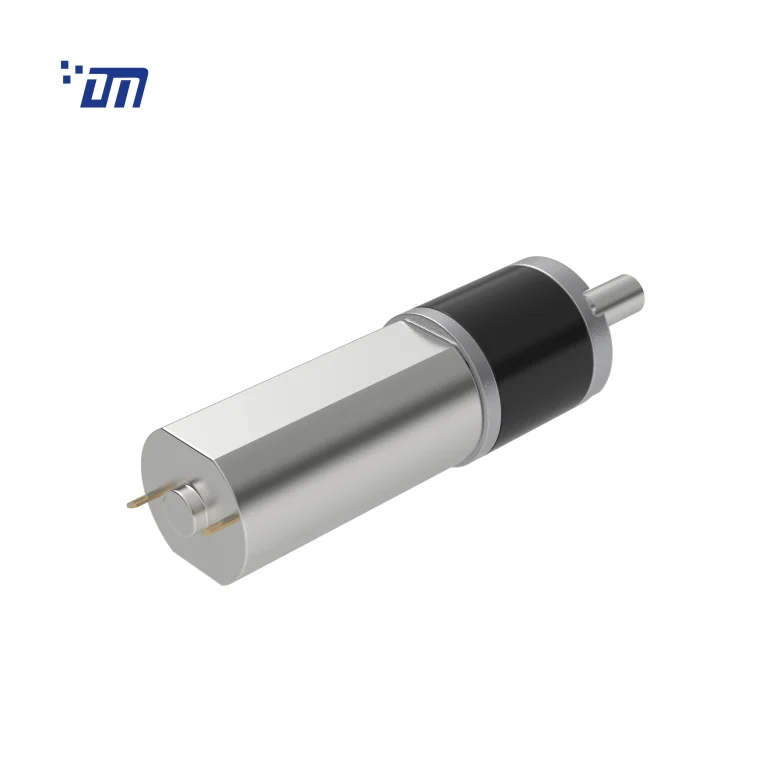

Planetary Gear Motor Manufacturer DM 22PM2140

DM-22PM2140

Key Features
Model: DM-22PM2140

Model: DM-22PM2140

Gearbox Diameter: 22mm
Voltage: 6V-24V
Output Speed: 3RPM~1500RPM
Rated Torque: 0.18kg.cm~26kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage, Current, Speed, Torque, Output shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

Product Dimensions（unit:mm）

Gearbox Ratio:


Number of stages	1	2	3	4	5
Reduction Ratio i	4、4.75	16、22.5	64、79、107	256、361、509	1024、2418
Gearbox Length L (mm)	15.2	19.8	24.4	29	33.6
Breaking Torque(kgf.cm)	2	3	4	5	5
Gearbox Efficiency	90%	81%	73%	65%	59%

DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.


DC Motor Model	Rated	No Load		Max Efficiency Load				Stall
	Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-2140-009-5000	9	≤80	5000	≤220	4600	20	0.9	≥250	≥2100
DM-2140-012-6000	12	≤80	6000	≤220	5700	20	1.1	≥400	≥2200
DM-2140-012-4500	12	≤55	4500	≤150	4050	20	0.9	≥200	≥1200
DM-2140-024-6000	24	≤40	6000	≤110	5400	20	1.2	≥200	≥800

DC Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.


DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-22PM21400945.1-107K	9	0.82	45.1	0.31	35	2.94	1.05	13.1	1.11
DM-22PM2140012056-107K	12	0.12	56	0.41	40	4.3	1.78	17.72	1.32
DM-22PM21407.4162-43K	7.4	0.2	162	0.78	112	1.5	1.83	7.75	3.09
DM-22PM21407.4164-64K	7.4	0.18	164	0.9	129	2.1	2.87	13.7	4.87
DM-22PM2140024094-64K	24	0.07	94	0.21	62	2.6	1.70	9.4	0.56
DM-22PM21400918.3-256K	9	0.84	18.3	0.3	14.5	5.74	0.85	27.18	1.12
DM-22PM214001239.7-107K	12	0.71	39.7	0.23	29.9	2.98	0.91	12.11	0.74
DM-22PM2140028148-107K	28	0.15	148	0.446	128.0	4.67	6.259	36.493	2.934
DM-22PM21400129.8-509K	12	0.26	9.8	0.56	6.1	10.75	1.08	51.75	1.05
DM-22PM21400243.7-1024K	24	0.19	3.7	0.28	2.6	26.01	0.98	91.19	0.49
The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i) Gear Motor Output Torque=DC Motor TorqueGear RatioGearbox Efficiency. ( t=tmiη)
