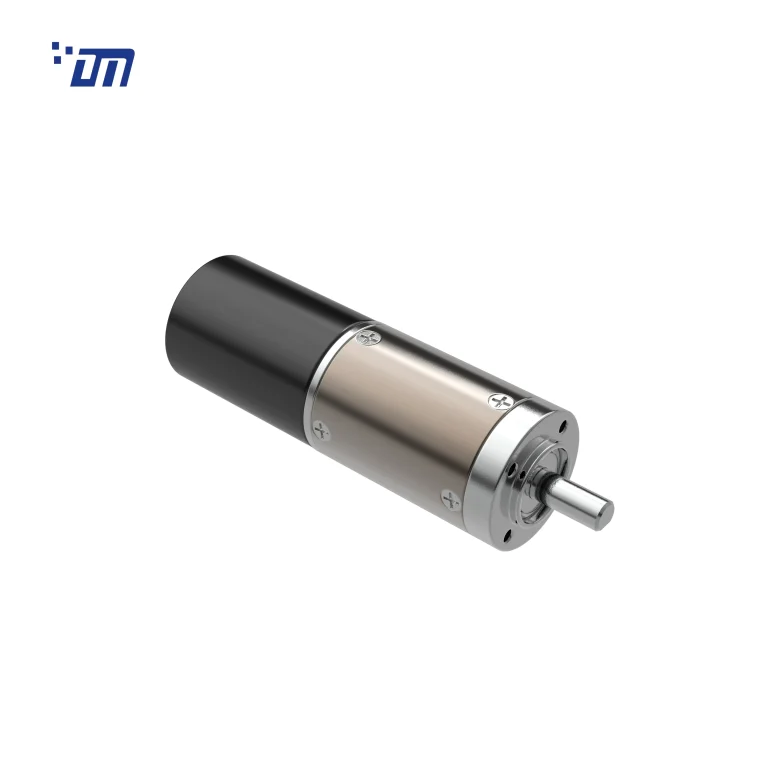

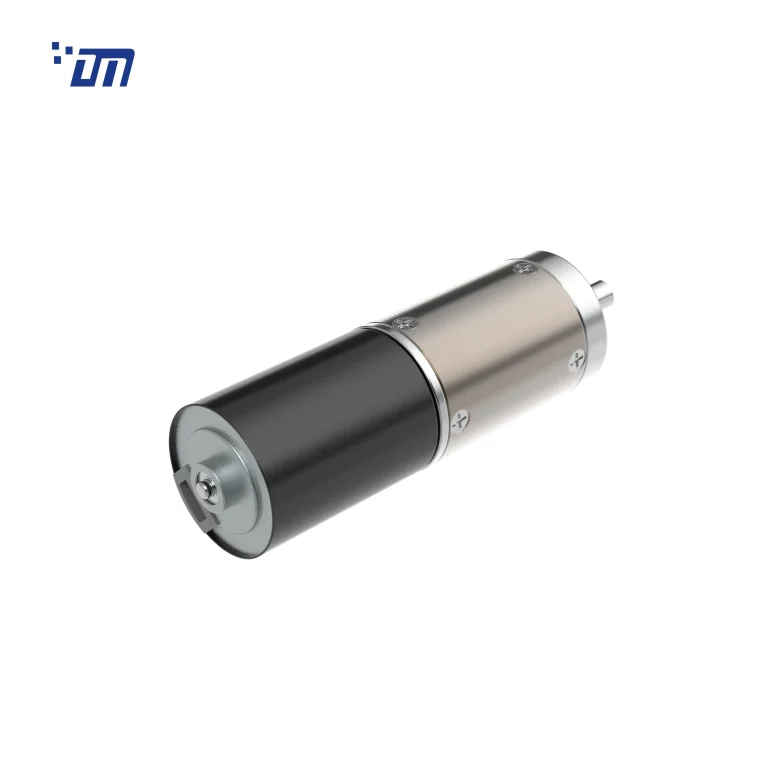

DM-28PBL2838

Key Features
Model: DM-28PBL2838

Diamater: 28mm
Voltage: 6V~24VDC
Speed: 3RPM~1500RPM
Torque: 0.5kg.cm~15kg.cm

1. CW/CCW
2. Brushless DC Mootor
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage,  Current,  Speed,  Torque,  Output Shaft,  DC Motor,  Gearbox,  Ratio,  Brush of DC Motor,  Wire, Encoder,  Gear,  Noise Level,  Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Product Dimensions（unit:mm）

Gearbox Data:

Number of stages 1 2 3 4
Reduction Ratio i 3.7、5.2 14、19、27 51、71、100、 139 189、264、369、515、721
Gearbox Length L (mm) 27.5 35.7 43.9 52.1
Breaking Torque(kgf.cm) 6 10 20 40
Gearbox Efficiency 90% 81% 73% 65%

DC Motor Data:

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
DM-BL2838-07.4-5500 7.4 ≤290 5500 ≤1200 4300 84 3.7 ≥440 ≥3300
DM-BL2838-012-9000 12 ≤350 9000 ≤1350 7300 89 3.1 ≥440 ≥3600
DM-BL2838-024-8000 24 ≤120 8000 ≤600 6800 87 5.3 ≥510 ≥2000

Gear Motor Data:

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-28PBL2838024019-189K 24 0.19 19 0.305 12.3 1.672 2.160 6.132 0.828
DM-28PBL2838024016-264K 24 0.2 16 0.270 12.3 1.757 2.257 7.956 0.969
DM-28PBL2838024222-27K 24 0.48 222 0.796 128.7 0.471 6.343 1.521 1.867
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
