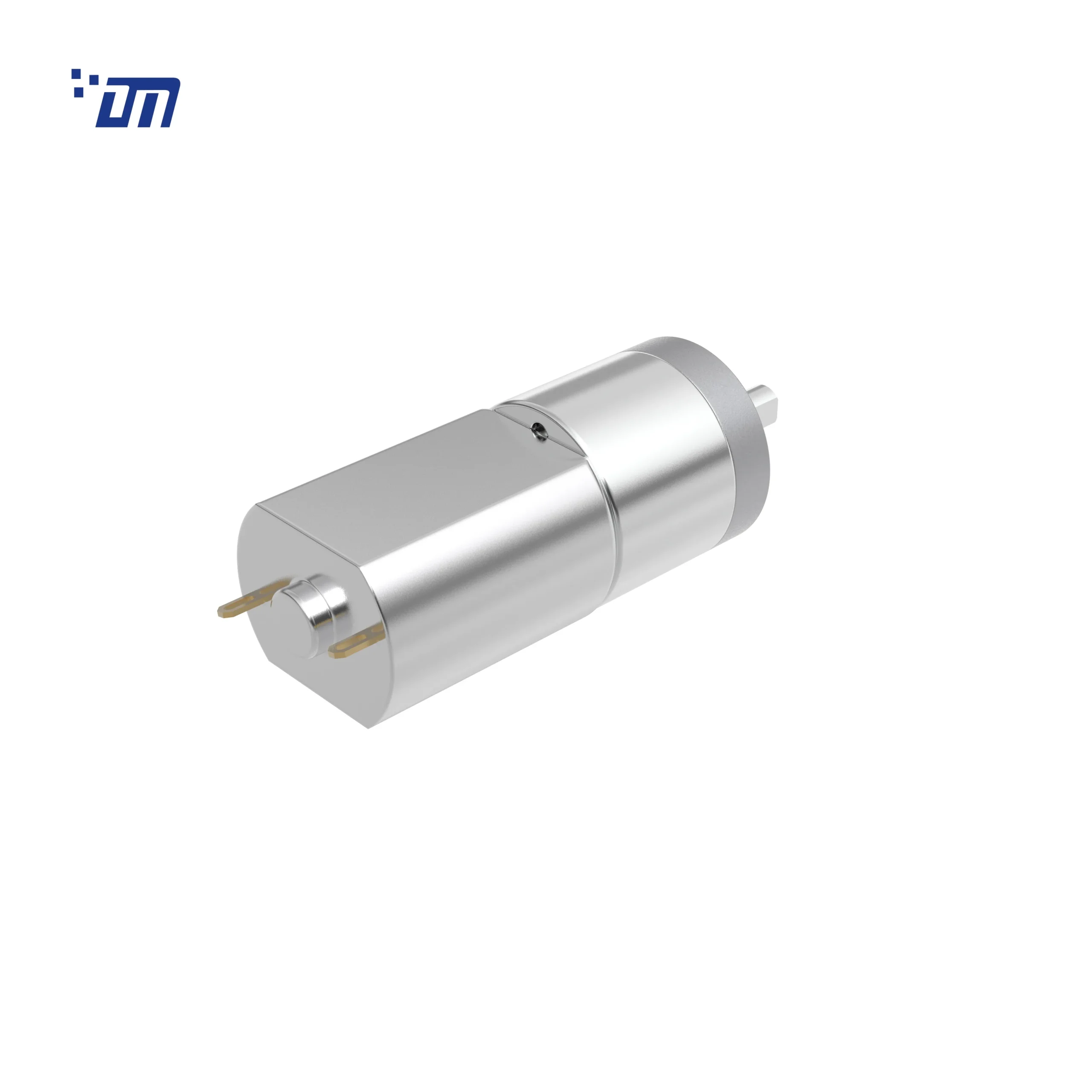

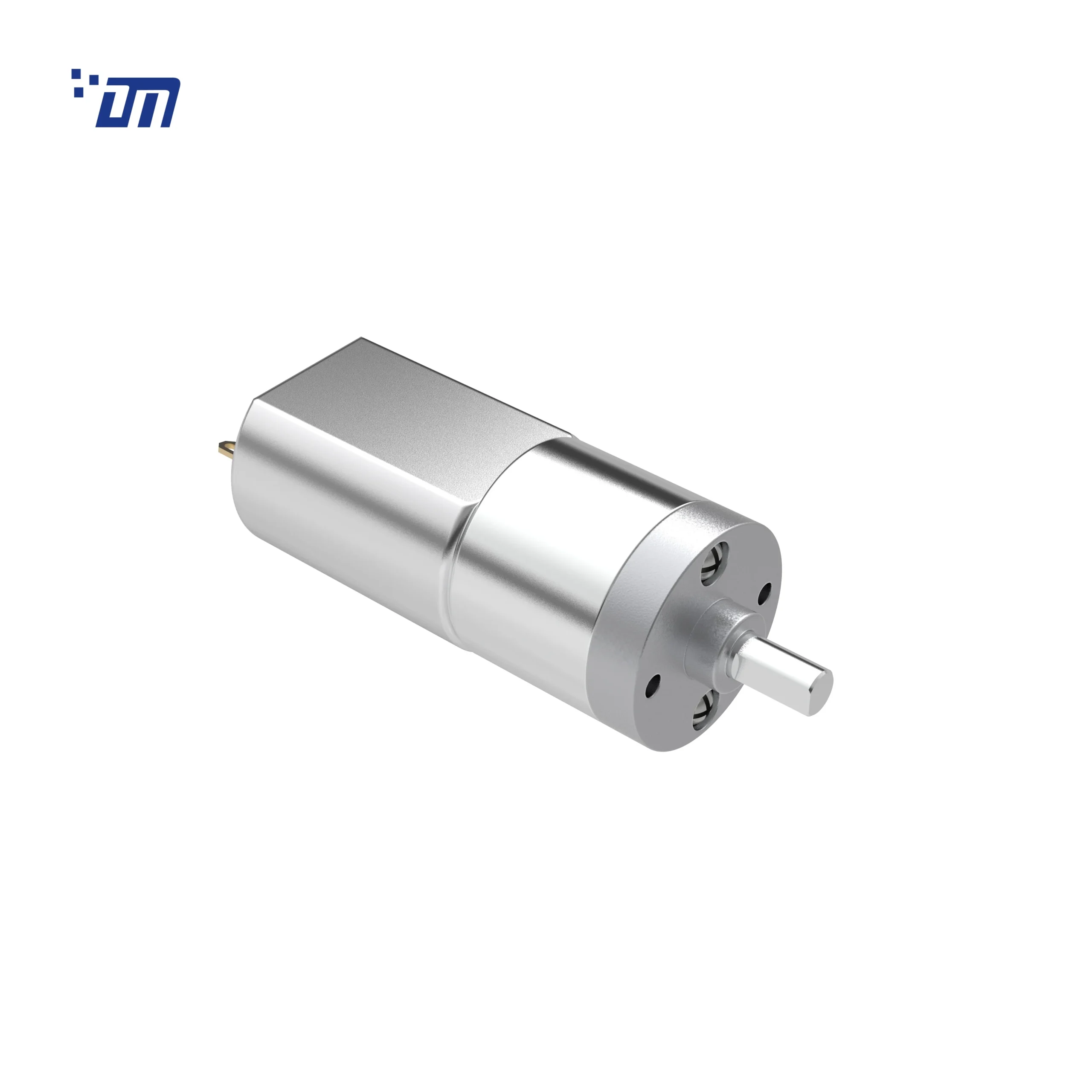

DM-20SM130

Key Features
Model: DM-20SM130

Diamater: 20mm
Voltage: 3~12VDC
Speed: 6RPM~600RPM
Torque: 0.07kg.cpm~6kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Spur Gears
4. Metal Gearbox

Customization:
Voltage,  Current,  Speed,  Torque,  Output Shaft,  DC Motor,  Gearbox,  Ratio,  Brush of DC Motor,  Wire, Encoder,  Gear,  Noise Level,  Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

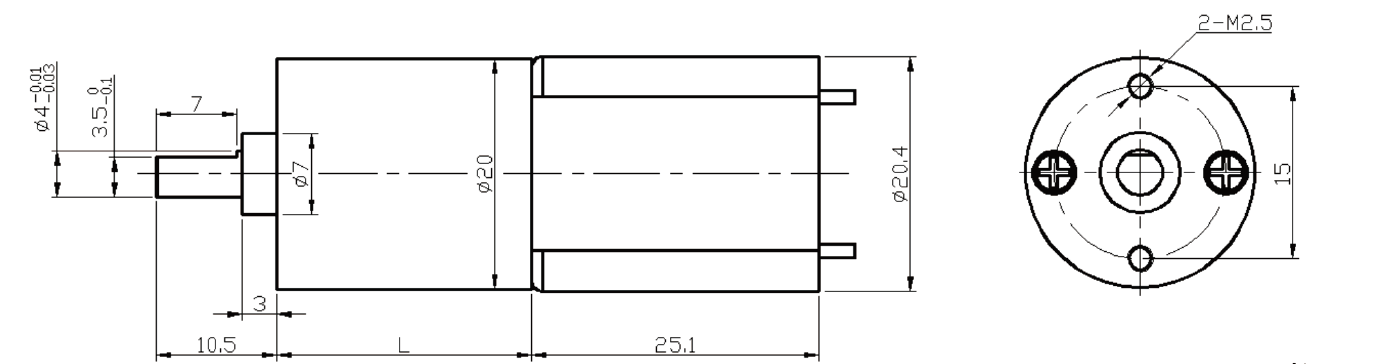

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages
4
5
6
7
8
Number of stages45678
Reduction Ratio i 18、23 35、44、55 67、84、105、132 161、202、252、316 386、484、606、758
Gearbox Length L (mm) 16.2 17.7 19.2 20.7 22.2
Breaking Torque(kgf.cm) 2 4 6 8 8
Gearbox Efficiency 65% 59% 53% 48% 43%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model
Rated
No Load
Max Efficiency Load
Stall
Volt.
Current
Speed
Current
Speed
Torque
P.out
Torque
Current
V
mA
r/min
mA
r/min
gf.cm
W
gf.cm
mA
DC Motor ModelRatedNo LoadMax Efficiency LoadStall
Volt.CurrentSpeedCurrentSpeedTorqueP.outTorqueCurrent
VmAr/minmAr/mingf.cmWgf.cmmA
DM-130-006-6000 6 ≤90 6000 ≤280 5400 10 0.6 ≥40 ≥500
DM-130-006-9000 6 ≤120 9000 ≤430 7000 15 1.1 ≥60 ≥1200
DM-130-012-6000 12 ≤45 6000 ≤140 5400 10 0.6 ≥40 ≥250
DM-130-012-9000 12 ≤60 9000 ≤200 7000 15 1.1 ≥60 ≥600



Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model
Rated voltage
No Load
Max Efficiency Load
Stall
Current
Speed
Current
Speed
Torque
P.out
Torque
Current
V
A
r/min
A
r/min
kgf.cm
W
kgf.cm
A
DC Gear Motor ModelRated voltageNo LoadMax Efficiency LoadStall
CurrentSpeedCurrentSpeedTorqueP.outTorqueCurrent
VAr/minAr/minkgf.cmWkgf.cmA
DM-20SM13000614.1-386K 6 0.07 14.10 0.23 10.50 2.40 0.26 8.80 0.67
DM-20SM130012263.6-31K 12 0.11 263.6 0.28 184.8 0.38 0.72 1.20 0.70
DM-20SM130012185.1-46K 12 0.09 185.1 0.26 134.3 0.57 0.79 2.10 0.70
DM-20SM130012128.3-71K 12 0.05 128.3 0.21 99.80 0.76 0.78 3.40 0.77
DM-20SM13002417.3-484K 24 0.04 17.30 0.10 11.80 2.50 0.31 7.90 0.23
DM-20SM13001228.9-484K 12 0.17 28.9 0.332 22.2 3.78 0.880 17.17 1.189
DM-20SM130012045-202K 12 0.09 45 0.208 34.4 1.58 0.570 7.20 0.781
DM-20SM130012055-161K 12 0.09 55 0.181 43.9 1.22 0.560 6.15 0.714
DM-20SM130012068-132K 12 0.07 68 0.175 50.8 1.15 0.612 5.72 0.704
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
