DM-13SM030

Key Features

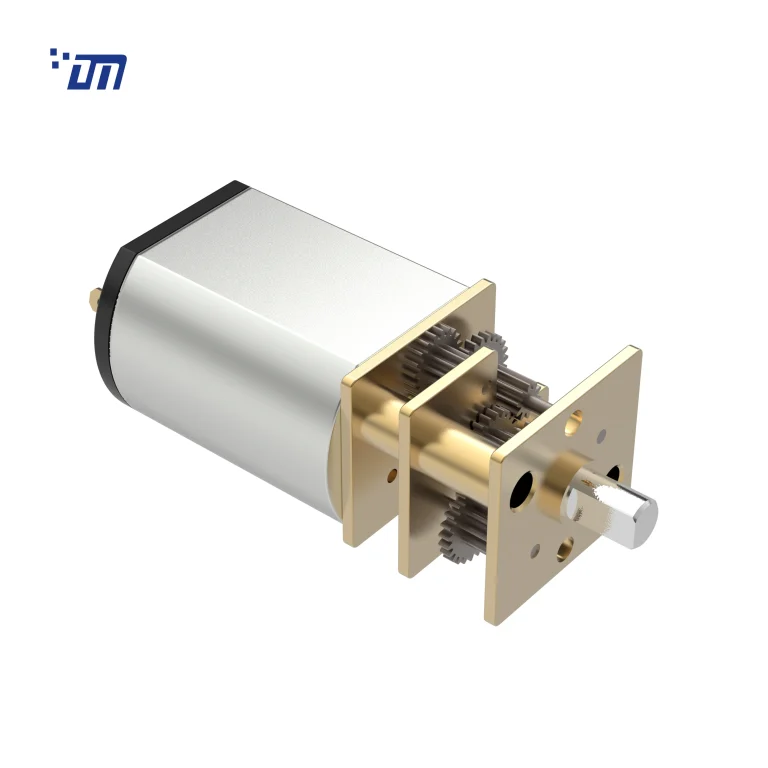

Model: DM-13SM030

Diamater: 13mm
Voltage: 3~12VDC
Speed: 7~1200RPM
Torque: 0.06kg.cm~2kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Spur Gears
4. Copper Plate Gearbox

Customization:
Voltage,  Current,  Speed,  Torque,  Output Shaft,  DC Motor,  Gearbox,  Ratio,  Brush of DC Motor,  Wire, Encoder,  Gear,  Noise Level,  Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Product Dimensions（unit:mm）

DM 13SS030 DRAWING



Gearbox Ratio:

Number of stages 2 4 5
Reduction Ratio i 3、7、10 16、17、20、30、35、50、63、70、86 115、150、210、250、360
Gearbox Length L (mm) 11 11 11
Breaking Torque(kgf.cm) 0.6 0.9 2
Gearbox Efficiency 81% 65% 59%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
DM-030-003-80000 3 ≤55 80000 ≤250 6000 4 0.2 ≥16 ≥500
DM-030-003-10500 3 ≤80 105000 ≤300 7200 5 0.4 ≥20 ≥750
DM-030-006-80000 6 ≤30 8000 ≤120 5000 4 0.2 ≥16 ≥150
DM-030-006-10500 6 ≤40 10500 ≤160 7000 5 0.4 ≥20 ≥400



Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-13SM030003784.4-10K 3 0.04 784.4 0.18 619.2 0.04 0.23 0.17 0.68
DM-13SM03000371.9-150K 3 0.12 71.9 0.32 52.9 0.33 0.18 1.25 0.90
DM-13SM03000353-150K 3 0.09 53 0.165 37.0 0.34 0.130 1.41 0.514
DM-13SM03000322-360K 3 0.09 22 0.169 15.2 0.87 0.137 3.18 0.467
DM-13SM03001241.7-360K 12 0.06 41.7 0.095 0.095 0.98 0.353 5.11 0.388
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
