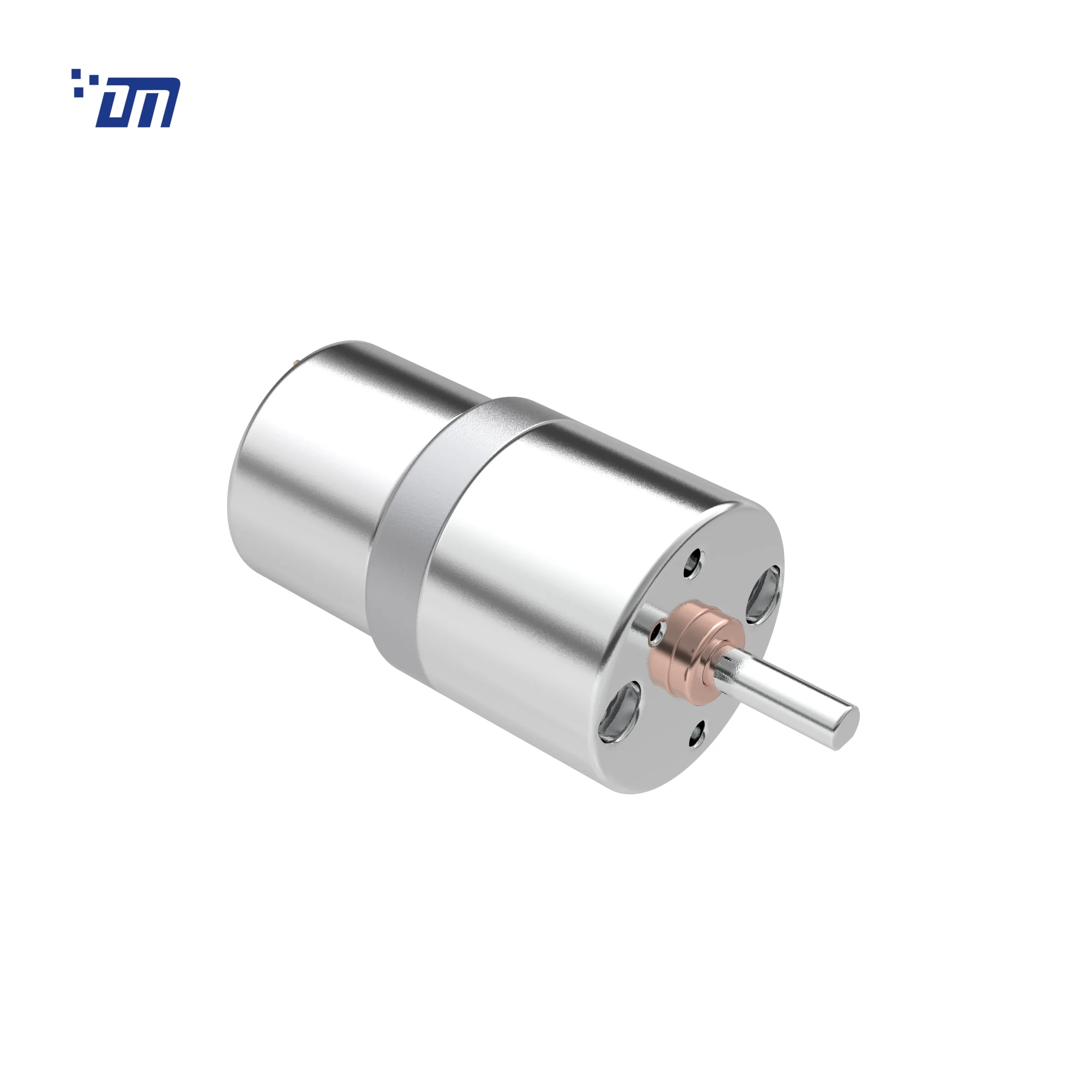

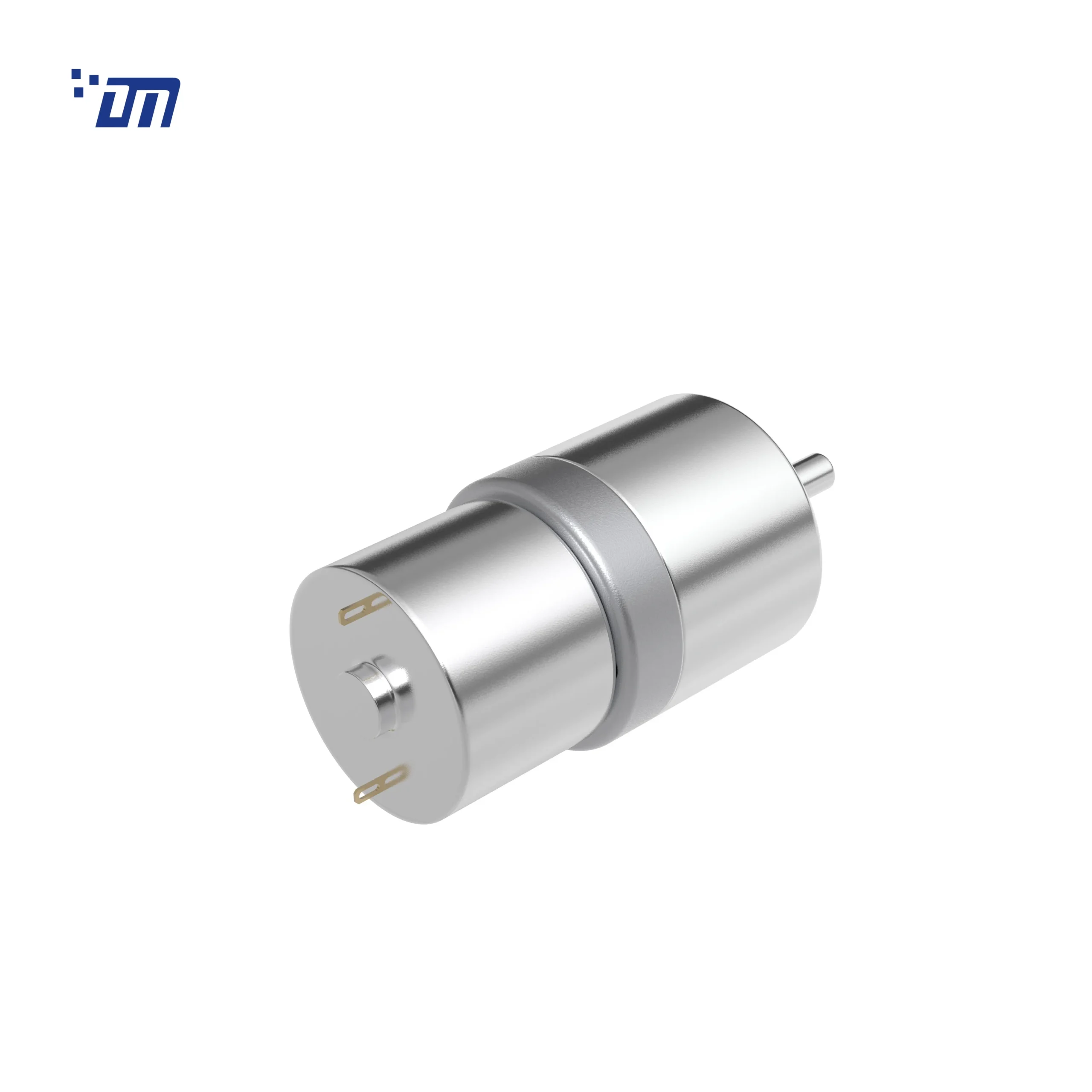

DM-27SM310

Key Features
Model: DM-27SM310

Diamater: 27mm
Voltage: 3~12VDC
Speed: 3RPM~400RPM
Torque: 0.15kg.cm~6kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Spur Gears
4. Metal Gearbox

Customization:
Voltage, Current, Speed, Torque, Output Shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

Product Dimensions（unit:mm）

Gearbox Ratio:


Number of stages	4	5	6	7	8
Reduction Ratio i	9.3、10、11.5	20.4、21、23、25、28	45、55.4、62、69	86、99、110、122、135.5	217、241、268、409
Gearbox Length L (mm)	18	20	23	25	27
Breaking Torque(kgf.cm)	10	12	12	14	14
Gearbox Efficiency	65%	59%	53%	48%	43%

DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.


DC Motor Model	Rated	No Load		Max Efficiency Load				Stall
	Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-310-006-3000	6	≤20	3000	≤60	2300	35	0.1	≥110	≥360
DM-310-006-4500	6	<40	4500	≤120	3200	55	0.2	≥210	≥960
DM-310-006-6000	6	≤35	6000	≤140	4500	80	0.5	≥280	≥1600
DM-310-012-3000	12	≤15	3000	≤40	2300	35	0.1	≥110	≥160
DM-310-012-4500	12	≤20	4500	≤55	3200	55	0.2	≥180	≥380

Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.


DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-27SM31001246.2-100K	12	0.03	46.2	0.04	37.4	0.36	0.14	1.9	0.18
DM-27SM310012572.1-12K	12	0.04	572.1	0.11	418.3	0.1	0.42	0.4	0.29
DM-27SM310012238.6-23K	12	0.04	238.6	0.1	169.5	0.19	0.34	0.7	0.27
DM-27SM310012142-52K	12	0.04	142.0	0.13	108.5	0.36	0.4	1.5	0.43
DM-27SM31001241.6-210K	12	0.07	41.6	0.21	30.1	1.54	0.48	5.6	0.58
The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i) Gear Motor Output Torque=DC Motor TorqueGear RatioGearbox Efficiency. ( t=tmiη)
