DM-16PM050

Key Features

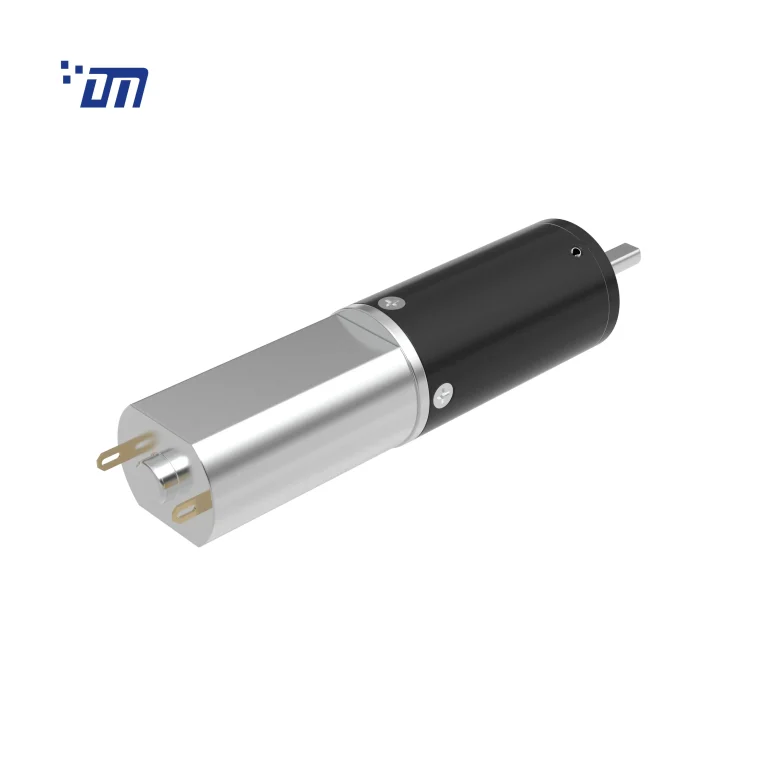

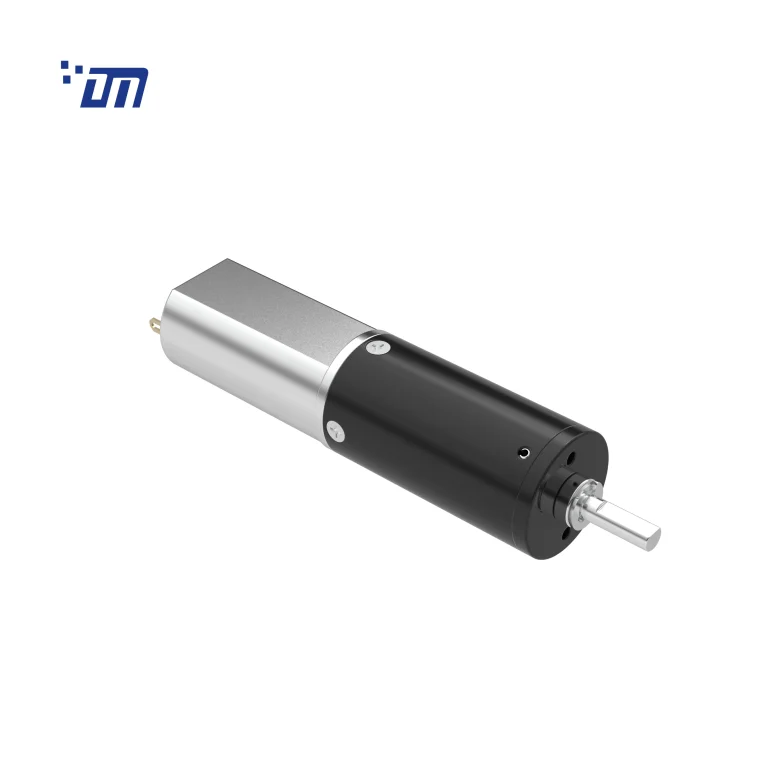

Model: DM-16PM050

Gearbox Diameter: 16mm
Voltage: 3V-12V
Output Speed: 3RPM~1600RPM
Rated Torque: 0.03kg.cm~7kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage, Current, Speed, Torque, Output shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

Product Dimensions（unit:mm）

Gearbox Ratio:


Number of stages	1	2	3	4	5
Reduction Ratio i	4、4.75	16、22.5	64、79、107	256、361、509	1024、2418
Gearbox Length L (mm)	18.1	22.7	27.3	31.9	36.5
Breaking Torque(kgf.cm)	2	3	4	5	5
Gearbox Efficiency	90%	81%	73%	65%	59%

DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.


DC Motor Model	Rated	No Load		Max Efficiency Load				Stall
	Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-050-006-9000	6	≤60	9000	≤260	7500	8	0.6	≥30	≥550
DM-050-006-12000	6	≤70	12000	< 300	9300	10	1.0	≥40	≥1000
DM-050-012-9000	12	≤30	9000	≤130	7500	8	0.6	≥30	≥300
DM-050-012-12000	12	≤50	12000	≤200	10000	10	1.0	≥40	≥600

Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.


DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-16PM050003543.5-22.5K	3	0.24	543.5	0.73	393.6	0.2	0.86	0.77	2.01
DM-16PM05000676.3-107K	6	0.11	76.3	0.29	56.6	0.9	0.52	3.5	0.82
DM-16PM05000629.3-361K	6	0.12	29.3	0.34	20.8	2.58	0.55	8.93	0,86
DM-16PM0500129000-361K	12	0.12	25	0.111	17.9	1.633	0.306	7.142	0.393
DM-16PM05000610500-64K	6	0.18	164	0.294	116.3	42.6	0.519	1.826	0.940
DM-16PM0500121037.2-16K	12	0.18	1037.2	0.51	765.8	0.31	2.53	1.23	1.47
DM-16PM050006023-509K	6	0.22	23	0.52	15	4.1	0.42	9.3	1.26
DM-16PM050012160.5-107K	12	0.12	160.5	0.41	127.6	1.44	1,.89	7.04	1.53
DM-16PM050012164-64K	12	0.04	164	0.13	116	0.32	0.39	1.3	0.4
DM-16PM050006031-256K	6	0.07	31	0.19	20	1.25	0.26	4.45	0.5
The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i) Gear Motor Output Torque=DC Motor TorqueGear RatioGearbox Efficiency. ( t=tmiη)
