DM-33SM3525

Key Features
Model: DM-33SM3525

Diamater: 33mm
Voltage: 6V~24VDC
Speed: 3RPM~300RPM
Torque: 0.3kg.cm~11kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Spur Gears
4. Metal Gearbox

Customization:
Voltage, Current, Speed, Torque, Output Shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

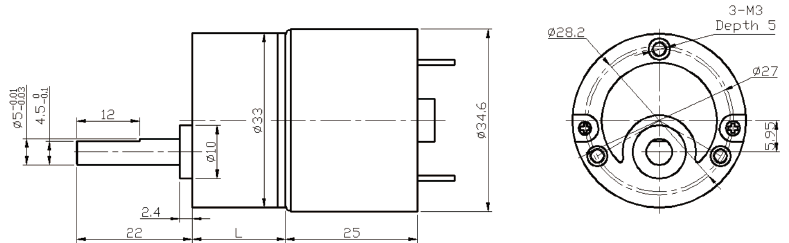

Product Dimensions（unit:mm）

Gearbox Ratio:


Number of stages	3	4	5	6	7
Reduction Ratio i	20	50	125	312.5	781
Gearbox Length L (mm)	17.7	19.9	22.2	24.4	26.75
Breaking Torque(kgf.cm)	10	15	20	24	24
Gearbox Efficiency	73%	65%	59%	53%	48%

DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.


DC Motor Model	Rated	No Load		Max Efficiency Load				Stall
	Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-3525-012-3000	12	≤40	3000	≤170	2200	25	0.6	≥120	≥600
DM-3525-012-4500	12	≤60	4500	≤250	3300	35	1.2	≥180	≥900
DM-3525-012-6000	12	≤100	6000	≤450	4500	45	2.1	>200	≥1300
DM-3525-024-3000	24	≤25	3000	≤80	2200	25	0.6	≥100	≥300
DM-3525-024-4500	24	≤30	4500	≤130	3300	35	1.2	≥180	≥450

Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.


DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-33SM35250124500-312.5K	12	0.03	14.5	0.20	12.0	6.0	0.74	34.5	0.96
DM-33SM35250245500-781K	24	0.03	6.6	0.11	5.1	11.3	0.60	52.0	0.38
DM-33SM35250247000-174K	24	0.04	40.5	0.2	33.7	4.8	1.68	28.8	1.01
The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i) Gear Motor Output Torque=DC Motor TorqueGear RatioGearbox Efficiency. ( t=tmiη)
