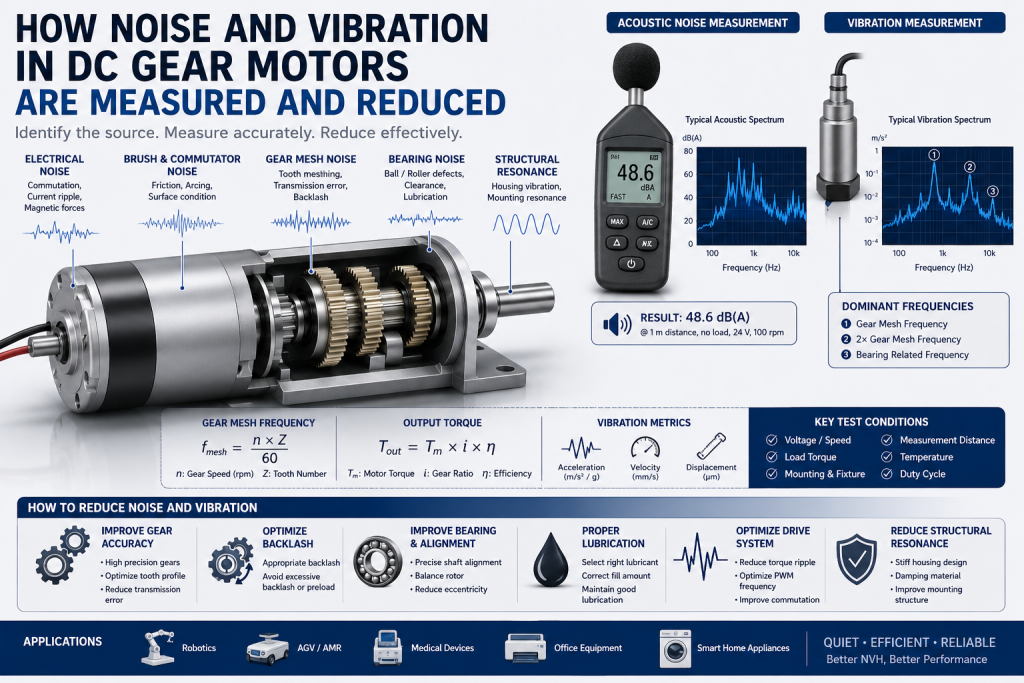

How Noise and Vibration in DC Gear Motors Are Measured and Reduced

Noise and vibration are two important performance indicators when selecting a DC gear motor for robotics, automation equipment, medical devices, smart appliances, and other noise-sensitive applications.

A gear motor may meet its rated speed and torque requirements but still fail an application because of excessive acoustic noise, gear whine, vibration, or resonance.

For engineers, the key question is not simply “How loud is the motor?” but:

Where does the noise originate, how is it measured, and which design parameter should be changed to reduce it?

The main sources are usually the motor electromagnetic system, brushes and commutator, gears, bearings, shaft imbalance, and the motor/gearbox housing. Research on DC motor NVH has also identified brush-commutator interaction, gear/worm meshing, and the shaft-bearing system as major excitation sources.



1. What Causes Noise and Vibration in a DC Gear Motor?

A DC gear motor contains several potential vibration and noise sources.

1.1 Brush and Commutator Noise

In a brushed DC motor, the brushes continuously contact the commutator.

Small variations in:

Brush contact pressure

Commutator surface condition

Brush material

Commutation timing

Armature imbalance

Electrical current

can generate mechanical vibration and acoustic noise.

Poor commutation can also produce electrical torque ripple, which can excite mechanical resonances.

For applications requiring very low noise, a BLDC gear motor can eliminate mechanical brush/commutator contact, although electromagnetic torque ripple and switching-related noise still need to be considered.



2. Gear Mesh Is Often the Dominant Noise Source

In a DC gear motor, the gearbox frequently contributes more noise than the motor itself.

As gear teeth enter and leave mesh, the stiffness of the gear pair changes periodically. Manufacturing errors, tooth deformation, alignment errors, and transmission error can create periodic excitation at the gear mesh frequency.

The basic gear mesh frequency can be estimated as:

fmesh=n×Z60f_{mesh}=\frac{n\times Z}{60}

Where:

fmeshf_{mesh} = gear mesh frequency, Hz

nn = gear rotational speed, rpm

ZZ = number of teeth

For example, if a gear rotates at 1,500 rpm and has 20 teeth:

fmesh=1500×2060=500 Hzf_{mesh}=\frac{1500\times20}{60}=500\,Hz

If a strong acoustic or vibration peak appears around 500 Hz and its harmonics, gear meshing becomes a strong candidate for the noise source.

This is much more useful than simply listening to the motor and guessing where the noise comes from.



3. Backlash Can Produce Rattle and Impact Noise

Gear backlash is necessary for proper gear operation, thermal expansion, and lubrication. However, excessive backlash can increase impact noise, particularly during:

Low-load operation

Speed changes

Start/stop cycles

Forward/reverse switching

Load reversal

When the driving and driven teeth repeatedly separate and impact each other, the resulting vibration can become clearly audible.

However, reducing backlash excessively is not always a solution. Insufficient backlash can increase friction, heat generation, tooth interference, and wear.

Therefore, the correct engineering target is controlled backlash, not simply minimum backlash.



4. Bearing, Shaft and Assembly Errors

Bearings and shafts form the mechanical transmission path between the motor, gearbox, and housing.

Typical vibration sources include:

Shaft eccentricity

Rotor imbalance

Bearing clearance

Bearing preload

Shaft misalignment

Gear eccentricity

Poor gearbox assembly

Output shaft radial load

A gearbox can therefore produce excessive vibration even when the individual gears meet dimensional specifications.

For this reason, DC gear motor vibration measurement should be performed on the complete motor/gearbox assembly rather than only on individual components.



5. How Is DC Gear Motor Noise Measured?

There are two fundamentally different measurements:

Acoustic Noise

Measured using a microphone or sound level meter.

Typical parameters include:

Sound pressure level, dB(A)

Sound power level, dB

Frequency spectrum

Tonal peaks

Mechanical Vibration

Measured using an accelerometer.

Typical parameters include:

Acceleration, m/s² or g

Velocity, mm/s

Displacement, μm

Frequency spectrum

RMS vibration

Peak vibration

These measurements answer different questions.

Microphone: How much sound reaches the surrounding environment?

Accelerometer: How much mechanical vibration is generated by the motor and transmitted through the structure?

IEC 60034-9 specifies methods for determining sound power levels and noise limits for certain rotating electrical machines, while IEC 60034-14 covers vibration measurement and evaluation for specified larger machines. Importantly, IEC 60034-9’s scope is for machines from 1 kW upward, and IEC 60034-14 applies to machines with shaft heights of 56 mm and above, so these standards should not automatically be treated as acceptance limits for small micro DC gear motors.

For small DC gear motors, manufacturers should instead establish an application-specific test method and reference sample.



6. Use FFT and Order Analysis to Find the Noise Source

A simple dB measurement tells you how much noise exists.

FFT analysis helps determine why it exists.

A typical vibration or acoustic spectrum may contain:

Frequency Component	Possible Source
1× shaft speed	Rotor imbalance, eccentricity
2× shaft speed	Misalignment or mechanical asymmetry
Gear mesh frequency	Gear tooth meshing
Gear mesh harmonics	Gear profile/mesh excitation
Broad high-frequency noise	Bearing or friction-related source
Commutation-related components	Brush/commutator system
Narrow resonance peak	Housing or structural resonance

The exact diagnosis depends on motor speed, gear tooth count, load, and construction.

For engineering troubleshooting, order analysis is particularly useful because it links vibration frequencies to rotational speed rather than relying only on fixed-frequency measurements.



7. Test the Motor Under the Same Operating Conditions

One of the most common mistakes in DC gear motor noise testing is comparing motors under different conditions.

Noise can change significantly with:

Voltage

Speed

Output torque

Load inertia

Gearbox orientation

Mounting structure

Temperature

PWM frequency

Acceleration/deceleration

A practical test specification should define at least:

Voltage + Speed + Load Torque + Mounting + Distance + Measurement Position + Temperature

For example:

24 V / 100 rpm / 1.0 Nm output load / rigid fixture / 25°C / microphone at 1 m

This creates a repeatable baseline for supplier comparison.



8. How to Reduce DC Gear Motor Noise and Vibration

Noise reduction should normally follow a source → transmission path → radiation approach.

8.1 Improve Gear Accuracy

Gear manufacturing accuracy has a direct influence on gear mesh excitation.

Important parameters include:

Tooth profile accuracy

Tooth pitch accuracy

Surface roughness

Gear eccentricity

Center distance

Tooth alignment

Improved machining tolerances and appropriate tooth geometry can reduce transmission error and gear noise.

For high-performance gear motors, tooth profile and lead modifications can also be used to control load distribution and reduce dynamic excitation.



8.2 Optimize Gear Backlash

Too much backlash can create rattle and impact noise.

Too little backlash can increase friction and risk of interference.

The optimum backlash depends on:

Gear module

Gear material

Operating speed

Load

Temperature

Manufacturing tolerance

Lubrication

Therefore, backlash should be specified as an engineering tolerance, rather than simply asking a supplier for “zero backlash.”



8.3 Improve Bearing and Shaft Alignment

Reducing eccentricity and misalignment can significantly reduce vibration.

During assembly, control:

Bearing seat concentricity

Gear shaft alignment

Gear center distance

Output shaft runout

Bearing preload

Housing dimensional tolerance

A motor with excellent gears can still become noisy if the gearbox assembly introduces shaft misalignment.



8.4 Select the Right Lubricant

Gearbox lubrication affects both friction and acoustic behavior.

The lubricant should be selected according to:

Gear material

Gear speed

Load

Temperature

Gearbox volume

Expected lifetime

Too little lubricant increases friction and wear.

Too much lubricant can increase churning losses and temperature.

For small planetary or spur gearboxes, the lubricant type and filling quantity should therefore be validated through actual life and noise testing rather than selected only by viscosity.



9. Optimize the Motor Drive System

For brushed DC motors, commutation quality is important.

For BLDC gear motors, additional factors include:

PWM frequency

Hall sensor timing

Commutation strategy

Current ripple

Torque ripple

Control-loop parameters

A BLDC motor can be mechanically quieter because it eliminates brush/commutator contact, but poorly optimized electronic commutation can still produce audible tonal noise.

Therefore, quiet BLDC gear motor design requires both mechanical and electrical optimization.



10. Avoid Housing Resonance

A frequently overlooked issue is the motor mounting structure.

The motor may generate relatively low vibration, but the housing or mounting plate can amplify it through resonance.

The vibration path is typically:

Gear Mesh → Shaft/Bearing → Gearbox Housing → Mounting Structure → Airborne Noise

The gearbox housing therefore acts as an acoustic radiator.

Changing:

Housing thickness

Housing material

Rib structure

Mounting stiffness

Mounting location

Isolation material

can shift structural natural frequencies and reduce acoustic radiation.

This is why a motor that is quiet on a laboratory fixture can become noticeably louder after installation into a thin metal enclosure.



11. Practical Engineering Troubleshooting Procedure

When a customer reports excessive DC gear motor noise and vibration, use the following sequence:

Step 1 — Establish a Reference

Test a known-good motor using exactly the same voltage, speed, load, fixture, and temperature.

Step 2 — Separate Motor and Gearbox Sources

Compare:

Motor without gearbox

Complete gear motor

Different gearbox ratio

If the motor is quiet but the assembled gear motor is noisy, investigate the gearbox.

Step 3 — Perform FFT Analysis

Identify whether the dominant frequency follows:

Motor speed

Gear output speed

Gear mesh frequency

Commutation frequency

Step 4 — Check Mechanical Assembly

Inspect:

Shaft runout

Gear backlash

Bearing clearance

Gear alignment

Housing deformation

Fastener looseness

Step 5 — Test Different Loads

Measure noise at no load, rated load, and representative application load.

This is particularly important because some gear motors exhibit different noise characteristics under unloaded and loaded conditions.



12. What Engineers Should Specify When Purchasing a Low-Noise DC Gear Motor

Instead of asking a supplier:

“Can you provide a quiet DC gear motor?”

provide measurable requirements.

A good RFQ should include:

Parameter	Recommended Specification
Rated voltage	e.g. 12 V / 24 V
Output speed	Required rpm
Continuous torque	Nm or kgf·cm
Peak torque	Nm or kgf·cm
Noise limit	dB(A), test condition defined
Vibration	RMS or peak value
Load condition	Defined output torque
Measurement distance	e.g. 0.5 m or 1 m
Mounting fixture	Defined
Operating temperature	°C
Duty cycle	Continuous / intermittent
Lifetime	Hours or cycles
Backlash	Maximum allowable value

The most important point is that noise specifications must include test conditions.

“≤50 dB” has limited engineering meaning unless the measurement distance, load, speed, environment, and measurement method are also defined.



Conclusion

Reducing DC gear motor noise and vibration requires more than simply adding lubricant or selecting a larger motor.

The correct approach is:

Measure → Identify Frequency → Locate Source → Optimize Design → Validate Under Real Load

For gearboxes, pay particular attention to gear mesh frequency, transmission error, backlash, tooth accuracy, bearing alignment, lubrication, and housing resonance.

For brushed motors, brush/commutator behavior and mechanical imbalance should also be investigated. For BLDC gear motors, electromagnetic torque ripple and drive switching become additional NVH considerations.

For engineers selecting a low-noise DC gear motor, the best specification is not simply “low noise.” It should define the actual dB(A), vibration level, speed, torque, mounting condition, measurement distance, and operating temperature.

A properly designed and tested DC gear motor can achieve the required combination of low noise, low vibration, torque, speed, efficiency, and service life without unnecessary increases in cost.



FAQ

What are the main causes of DC gear motor noise?

The main sources include gear mesh, backlash, bearings, shaft imbalance, brush and commutator interaction, electromagnetic torque ripple, misalignment, and housing resonance.

How do you measure DC gear motor noise?

Use a calibrated microphone or sound level meter for acoustic noise and an accelerometer for mechanical vibration. For engineering diagnosis, FFT and order analysis can help identify the dominant excitation source.

How can I reduce DC gear motor noise?

Start with accurate gear manufacturing, controlled backlash, proper bearing alignment, suitable lubrication, balanced rotating components, optimized motor commutation, and a stiff but acoustically optimized housing.

Are planetary gear motors quieter than spur gear motors?

Not automatically. Planetary gearboxes can provide high torque density and compact construction, but actual noise depends on gear accuracy, number of stages, backlash, carrier design, bearings, lubrication, manufacturing quality, and operating conditions.

Is a BLDC gear motor quieter than a brushed DC gear motor?

It can be mechanically quieter because it eliminates brush and commutator contact. However, BLDC systems can still generate audible noise from electromagnetic torque ripple, PWM switching, commutation, bearings, and gear meshing.

What is a good noise level for a DC gear motor?

There is no universal number. The acceptable level depends on the application and measurement method. For small DC gear motors, suppliers and customers should define a specific test condition rather than using a generic dB limit.
