DM-42PM775

Key Features

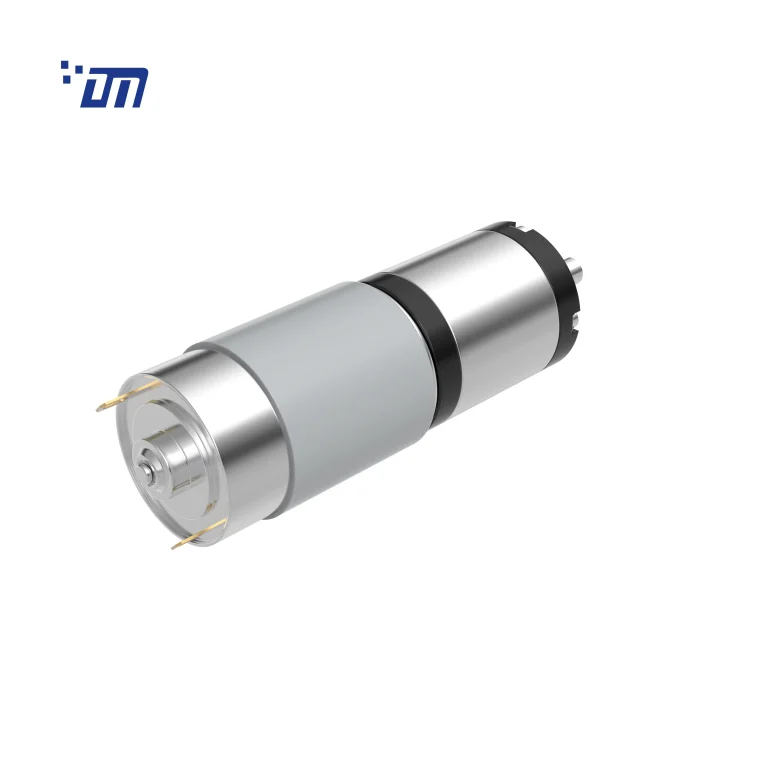

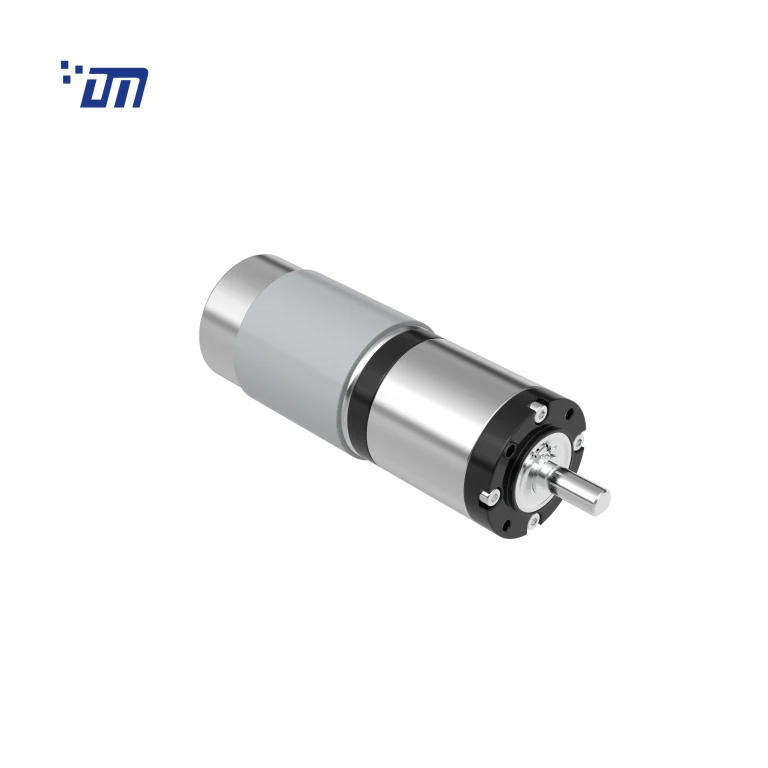

Model: DM-42PM775

Diamater: 42mm
Voltage: 12V~24VDC
Speed: 2RPM-1500RPM
Torque: 1kg.cm~60kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage, Current, Speed, Torque, Output shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

Product Dimensions（unit:mm）

Gearbox Ratio:


Number of stages	1	2	3	4
Reduction Ratio i	3.7、5	13、18、25	49、67、92、125	181、246、336、458、625
Gearbox Length L (mm)	33.2	43.6	54	64.4
Breaking Torque(kgf.cm)	15	25	50	90
Gearbox Efficiency	90%	81%	73%	65%

DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.


DC Motor Model	Rated	No Load		Max Efficiency Load				Stall
	Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-775-012-3000	12	≤280	3000	≤1300	2600	450	12	≥3600	≥8600
DM-775-012-4500	12	≤450	4500	≤2100	3800	500	19.5	≥4600	≥16200
DM-775-012-6000	12	≤680	6000	≤3600	5200	600	32	≥5600	≥27200
DM-775-024-3000	24	≤120	3000	≤920	2600	450	12	≥2800	≥5100
DM-775-024-4500	24	≤230	4500	≤1400	3800	500	19.5	≥4100	≥11000

Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.


DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-42PM775012509.1-13K	12	0.97	509.1	4.15	420.6	5.69	24.57	26.2	19.31
DM-42PM775012269.9-25K	12	0.79	269.9	4.08	218.9	10.9	24.57	46.2	18.2
DM-42PM775012444.4-18K	12	2.1	444.4	6.37	324.2	7.34	24.44	31.48	15.7
DM-42PM77502428.8-125K	24	0.29	28.8	1 .40	23.1	44.4	10.54	218.7	4.2
DM-42PM77502486.9-92K	24	0.83	86.9	3.88	73.2	21.69	16.29	114.8	12.7
DM-42PM775012020-336K	12	1.4	20	4.255	15.3	10.99	17.59	47.79	14.80
DM-42PM775012028-246K	12	1.4	28	3.331	21.9	6.54	15.00	38.20	16.34
DM-42PM775024400-25K	24	1.1	400	3.632	334.2	14.3	49.20	90	25.75
DM-42PM775012005-625K	12	0.55	5	1.176	3.7	12.14	4.740	60.44	4.793
The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i) Gear Motor Output Torque=DC Motor TorqueGear RatioGearbox Efficiency. ( t=tmiη)
