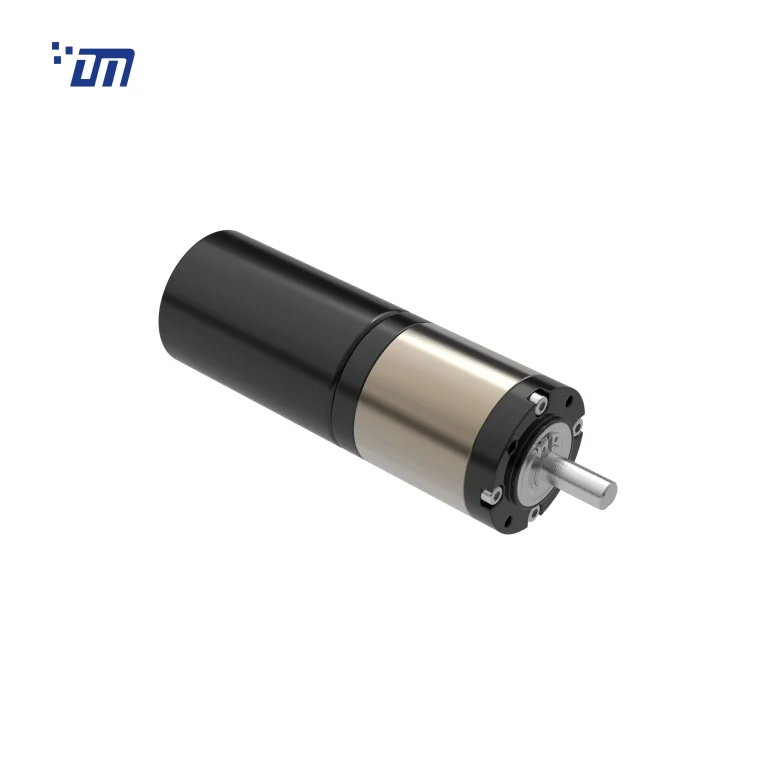

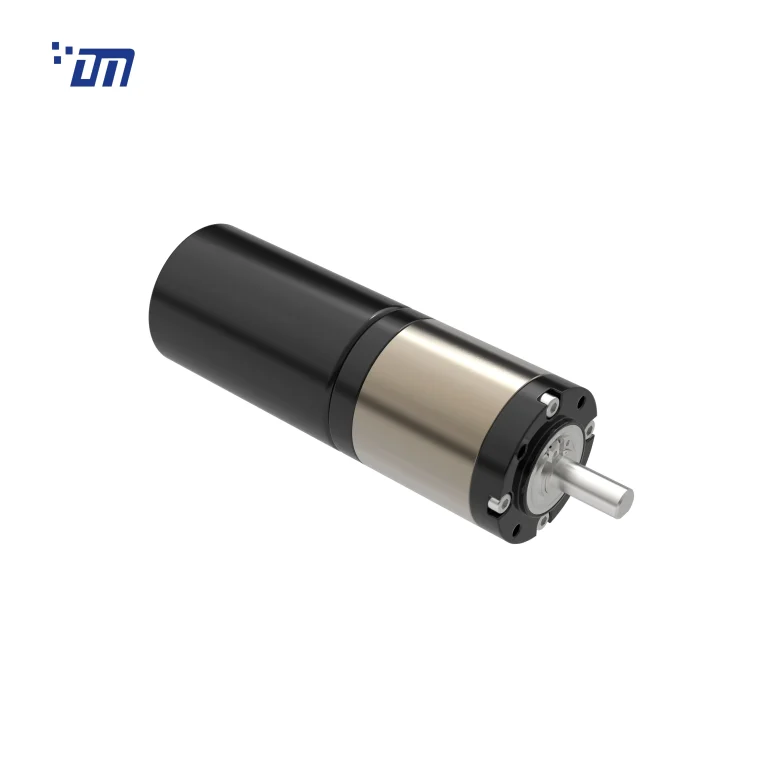

DM-42PBL4266

Key Features
Model: DM-42PBL4266

Key Features
Model: DM-42PBL4266

Diamater: 42mm
Voltage: 12V~24VDC
Speed: 4RPM~800RPM
Torque: 1kg.cm~62kg.cm

1. CW/CCW
2. Brushless DC Mootor
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage,  Current,  Speed,  Torque,  Output Shaft,  DC Motor,  Gearbox,  Ratio,  Brush of DC Motor,  Wire, Encoder,  Gear,  Noise Level,  Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Product Dimensions（unit:mm）

Gearbox Data

Number of stages 1 2 3 4
Reduction Ratio i 3.7、5.2 13、18、25 49、67、92、125 181、246、336、458、625
Gearbox Length L (mm) 33.2 43.6 54 64.4
Breaking Torque(kgf.cm) 15 25 50 50
Gearbox Efficiency 90% 81% 73% 65%

Driving Motor Data

DC Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-42PBL4266024032-246K 24 1.1 32 2.7 26.3 9.66 26.6 53.28 12.32
DM-42PBL4266024112-25K 24 0.5 112 1.3 58.5 1.8 17.66 10.2 6.3
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
