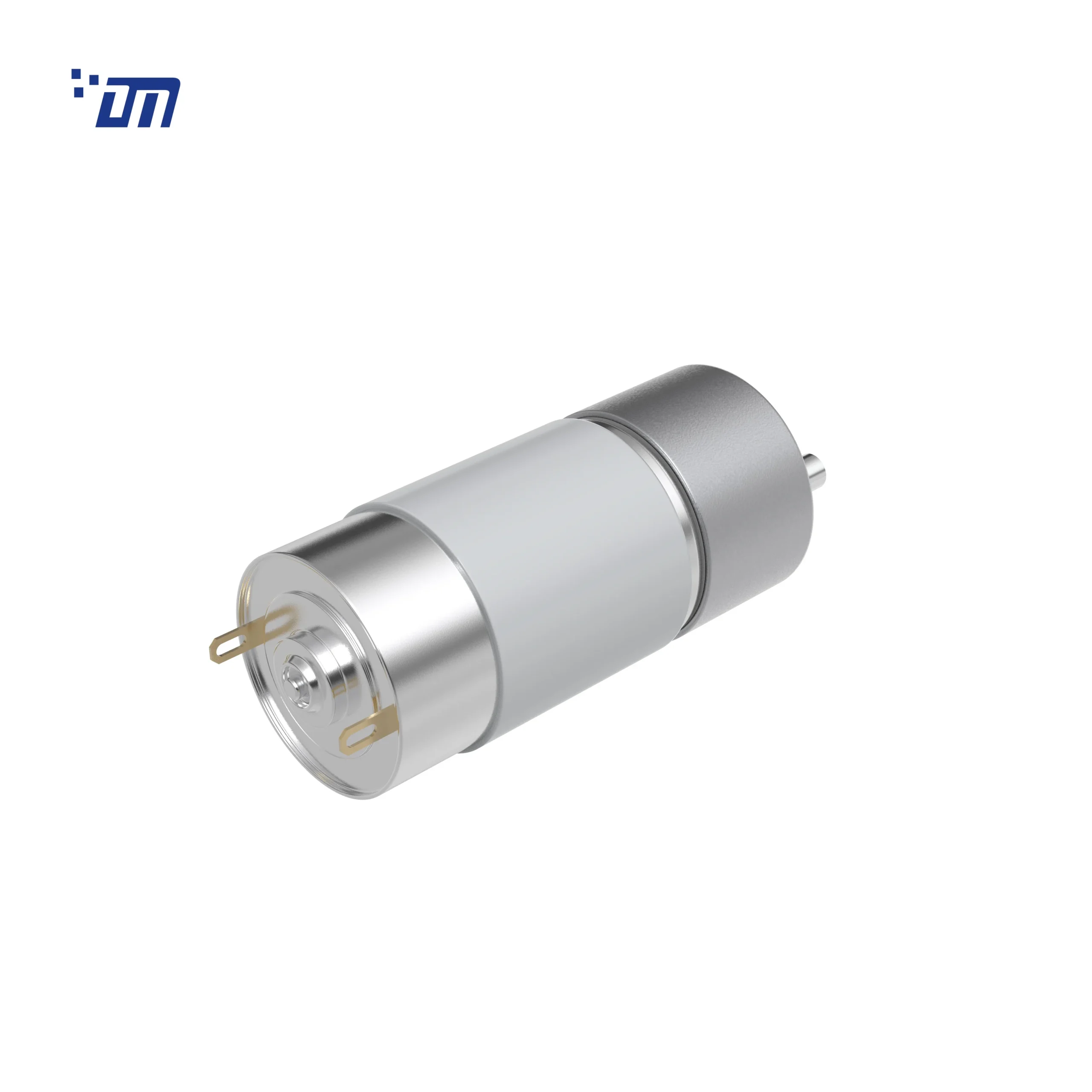

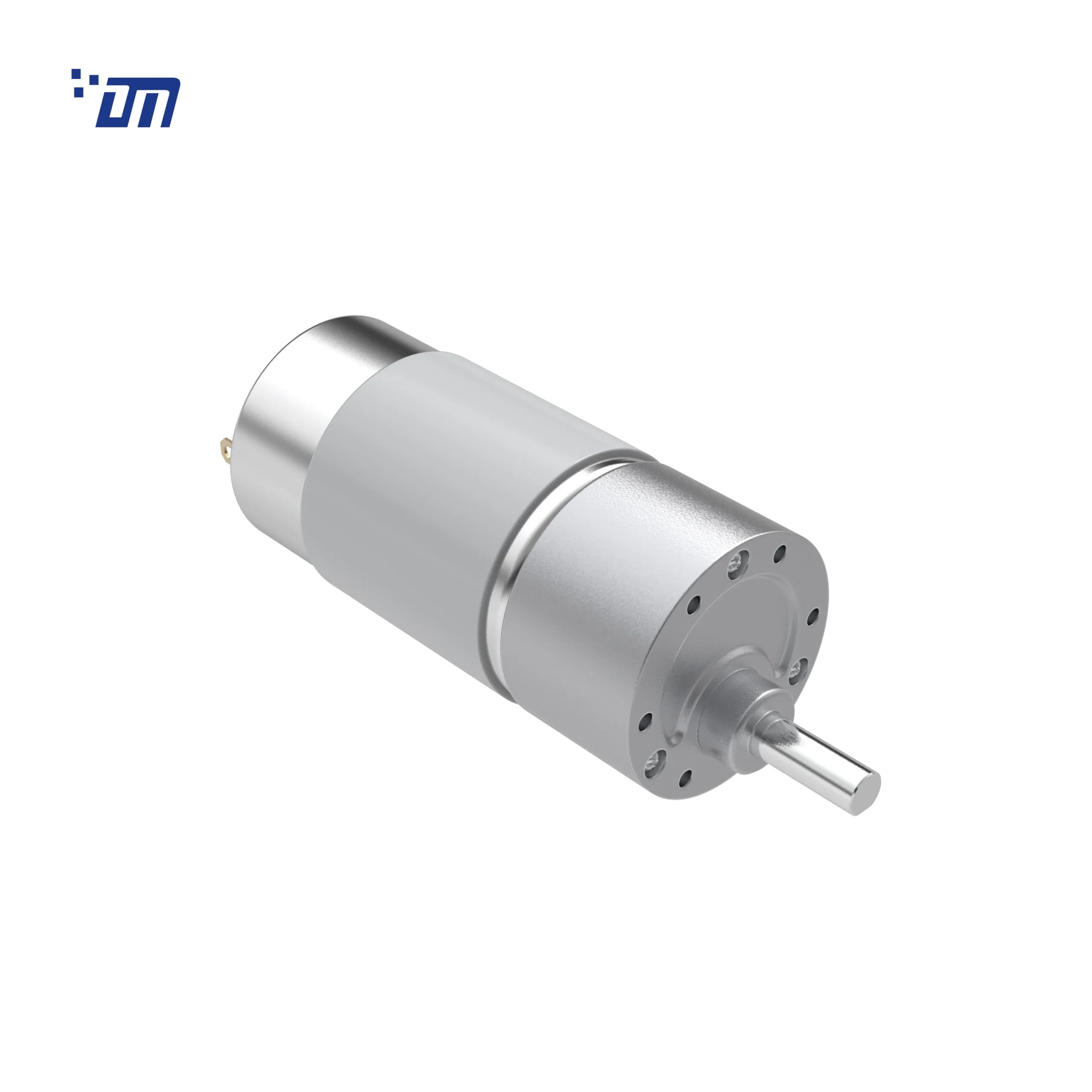

DM-37SM555

Key Features
Model: DM-37SM555

Diamater: 37mm
Voltage: 12V~24VDC
Speed: 2RPM~700RPM
Torque: 0.5kg.cm~27kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Spur Gears
4. Metal Gearbox

Customization:
Voltage,  Current,  Speed,  Torque,  Output Shaft,  DC Motor,  Gearbox,  Ratio,  Brush of DC Motor,  Wire, Encoder,  Gear,  Noise Level,  Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages 2 3 4 5 6 7
Reduction Ratio i 6、8、10 20、30 61、90 107、122、 184、270 311、414、 552、810 1243 1657、2430
Gearbox Length L (mm) 19 22.5 25 27.5 30 31.5
Breaking Torque(kgf.cm) 8 10 30 30 40 40
Gearbox Efficiency 81% 72% 65% 59% 53% 47%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
DM-555-012-3000 12 ≤140 3000 ≤800 2200 150 3.4 ≥480 ≥2400
DM-555-012-4500 12 ≤220 4500 ≤1200 3300 220 7.4 ≥700 ≥3840
DM-555-012-6000 12 ≤350 6000 ≤2000 4500 300 13.8 ≥960 ≥4800
DM-555-024-3000 24 ≤70 3000 ≤400 2200 150 3.4 ≥480 ≥1280
DM-555-024-4500 24 ≤110 4500 ≤600 3300 220 7.4 ≥700 ≥2400



Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-37SM55500695.1-61K 6 0.54 95.1 1 .99 74.0 5.4 4.13 24.4 7.1
DM-37SM55501216.2-178K 12 0.15 16.2 0.69 13.3 20.9 2.86 115.2 3.18
DM-37SM55501294.5-30K 12 0.13 94.5 0.58 78.6 4.3 3.51 25.8 2.78
DM-37SM55501272.4-61K 12 0.33 72.4 1 .68 58.8 14.4 8.72 76.9 7.55
DM-37SM555024553-15K 24 0.33 553 1.424 464.8 3.766 18.33 25.26 8.434
DM-37SM555012150-30K 12 0.38 150 1.055 108.9 4.406 5.024 20.797 4.058
DM-37SM55502466.6-90K 24 0.35 66.6 1.76 53.4 23.9 13.12 104.8 4.54
DM-37SM55501216.6-270K 12 0.42 16.6 1.199 13.2 3.8 5.366 21 5.387
DM-37SM5557.4300-20K 7.4 0.85 300 1.909 240.8 2.7 6.806 16.202 9.469
DM-37SM555012011-270K 13 0.2 11 0.592 8.5 2.8 2.558 15 2.563
DM-37SM555024038-184K 24 0.35 38 1.567 30.1 4.008 12.62 19.471 6.392
DM-37SM555012147-61K 12 1 147 1.924 127.7 7.23 9.669 58.23 13.52
DM-37SM555012100-90K 12 1 100 2.553 79.5 16.41 13.66 101.63 12.95
DM-37SM555024147-61K 24 0.45 147 1.679 122.5 15.63 20.04 104.19 9.667
DM-37SM555012600-10K 12 0.55 600 1.600 458.4 1.782 8.550 9.688 7.358
DM-37SM5554.511.2-178K 4.5 0.38 11.2 0.517 7.8 7.66 0.622 32.9 1.782
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
