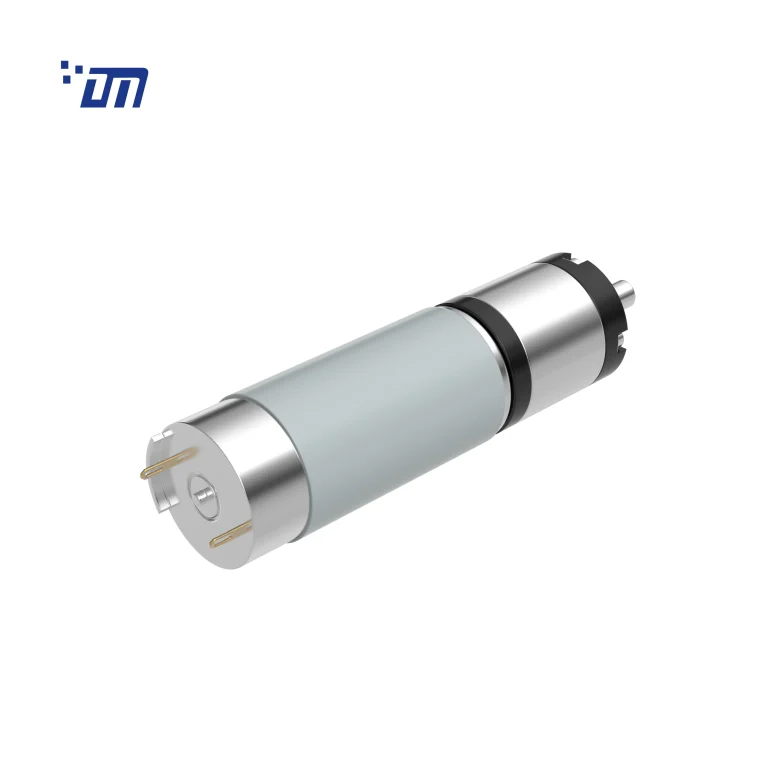

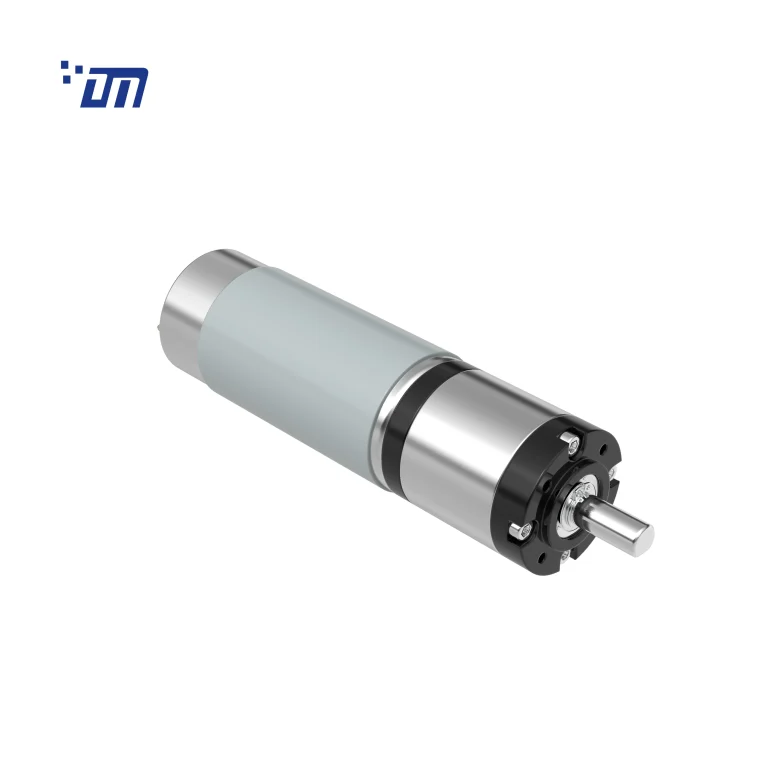

Planetary Gear Motor Manufacturer DM 36PM597

DM-36PM597

Key Features
Model: DM-36PM597

Diamater: 36mm
Voltage: 12V~24VDC
Speed: 2RPM-1500RPM
Torque: 1kg.cm~60kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage, Current, Speed, Torque, Output shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

Product Dimensions（unit:mm）

Gearbox Ratio:


Number of stages	1	2	3	4	5
Reduction Ratio i	3.7、5.2	16、19、27	51、71、100 1 39	189、264、369 515、721	977、1367、1910
Gearbox Length L (mm)	26.5	34.7	42.9	51.1	59.3
Breaking Torque(kgf.cm)	10	18	40	50	60
Gearbox Efficiency	90%	81%	73%	65%	59%

Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.


DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-36PM597012092-71K	12	0.43	92	2	75	15	11.62	93.35	10.07
DM-36PM597012120-71K	12	0.31	120	1.61	91	19	17.84	97	14.32
DM-36PM597012085-100K	12	1.51	85	1.21	60	36	22.34	120	14.96
DM-36PM597012072-139K	12	1.08	72	4.52	53	42	22.96	193.22	1
The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i) Gear Motor Output Torque=DC Motor TorqueGear RatioGearbox Efficiency. ( t=tmiη)
