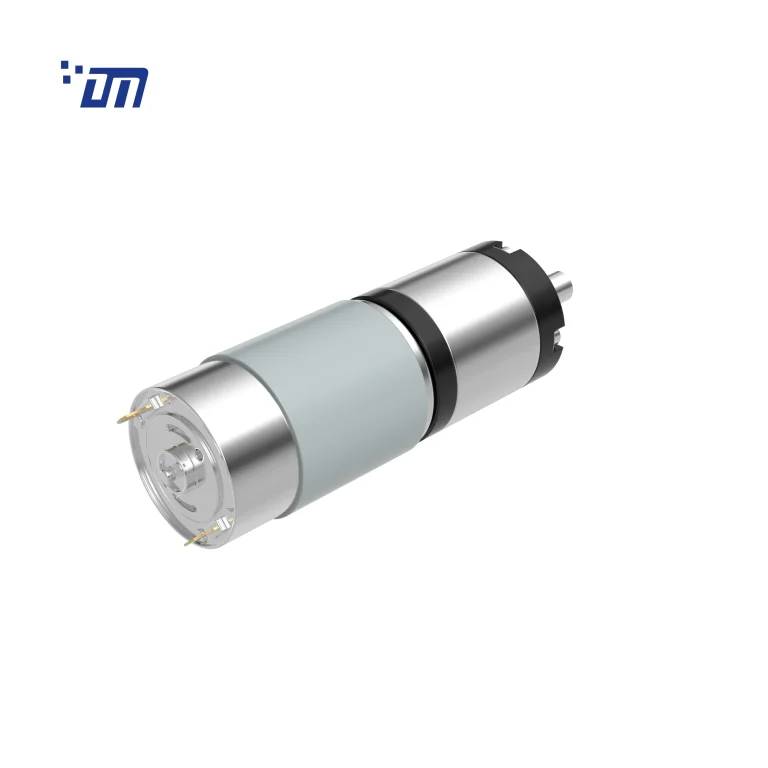

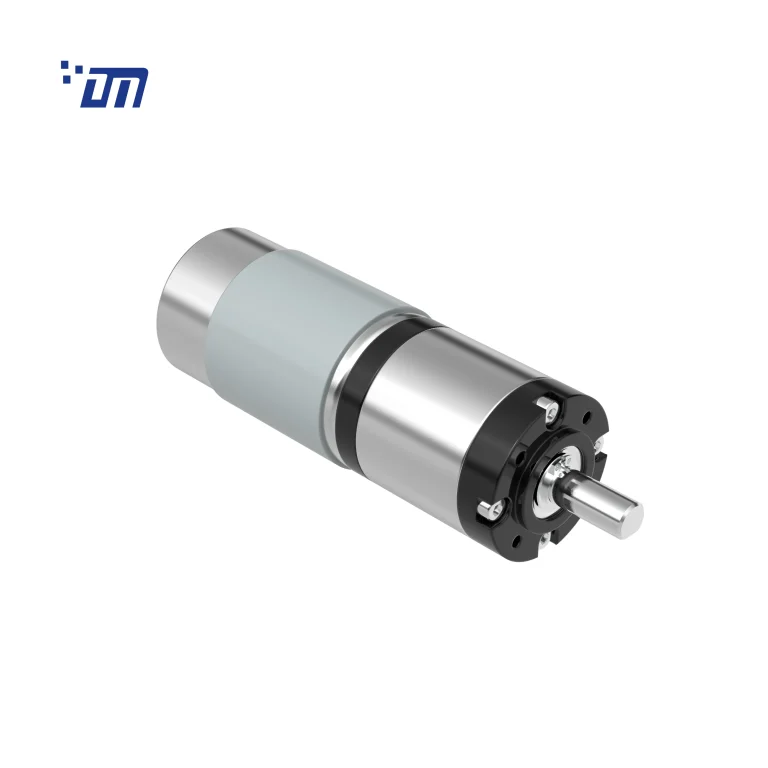

DM-36PM555

Key Features
Model: DM-36PM555

Diamater: 36mm
Voltage: 12V~24VDC
Speed: 2RPM-1500RPM
Torque: 1kg.cm~60kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage, Current, Speed, Torque, Output shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages 1 2 3 4 5
Reduction Ratio i 3.7、5.2 16、19、27 51、71、100 1 39 189、264、369 515、721 977、1367、1910
Gearbox Length L (mm) 26.5 34.7 42.9 51.1 59.3
Breaking Torque(kgf.cm) 10 18 40 50 60
Gearbox Efficiency 90% 81% 73% 65% 59%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
DM-555-012-3000 12 ≤140 3000 ≤800 2200 1 50 3.4 ≥480 ≥2400
DM-555-012-4500 12 ≤220 4500 ≤1200 3300 220 7.4 ≥700 ≥3840
DM-555-012-6000 12 ≤350 6000 ≤2000 4500 300 13.8 ≥960 ≥4800
DM-555-024-3000 24 ≤70 3000 ≤400 2200 1 50 3.4 ≥480 ≥1280
DM-555-024-4500 24 ≤110 4500 ≤600 3300 220 7.4 ≥700 ≥2400



Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-36PM55500612.3-515K 6 0.84 12.3 2.58 9.2 56.68 5.35 225.84 7.8
DM-36PM55501296.1-51K 12 0.31 96.1 1.61 80.2 11.64 9.58 70.26 8.15
DM-36PM55501217.1-264K 12 0.26 17.1 1.21 13.8 34.48 4.89 180.7 5.22
DM-36PM55501210.1-515K 12 0.22 10.1 0.87 7.7 45.85 3.62 193.22 2.99
DM-36PM55502479.3-189K 24 1.2 79.3 5.83 65.7 66.3 44.7 377.16 20.01
DM-36PM555012032-100K 12 0.24 32 0.694 23.7 12.9 3.152 50 2.707
DM-36RP555012162-3.7K 12 0.45 162 1.572 1212.0 77.3 9.809 429.9 7.096
DM-36RP55501243.1-139K 12 0.53 43.1 1.740 33.3 2.942 10.25 15.557 7.881
DM-36RP55502484.5-71K 24 0.24 84.5 0.806 70.8 1.308 9.698 9.586 5.148
DM-36RP555024065-100K 24 0.29 65 0.947 55.0 2.029 11.6 13.864 5.556
DM-36RP555024004-721K 24 0.14 4 0.398 34 10.07 3.620 62.38 2.104
DM-36RP555024500-515K 24 0.39 500 1.167 402.2 3.357 14.14 18.787 5.380
DM-36RP55502426.5-264K 24 0.39 26.5 1.007 21.7 4.523 10.30 24.971 4.561
DM-36RP5550248.7-515K 24 0.29 8.7 0.745 7.4 8.870 6.887 44.270 3.110
DM-36RP5550248.7-139K 24 0.345 57.5 1.820 48.7 4.19 21.36 26.68 9.977
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
