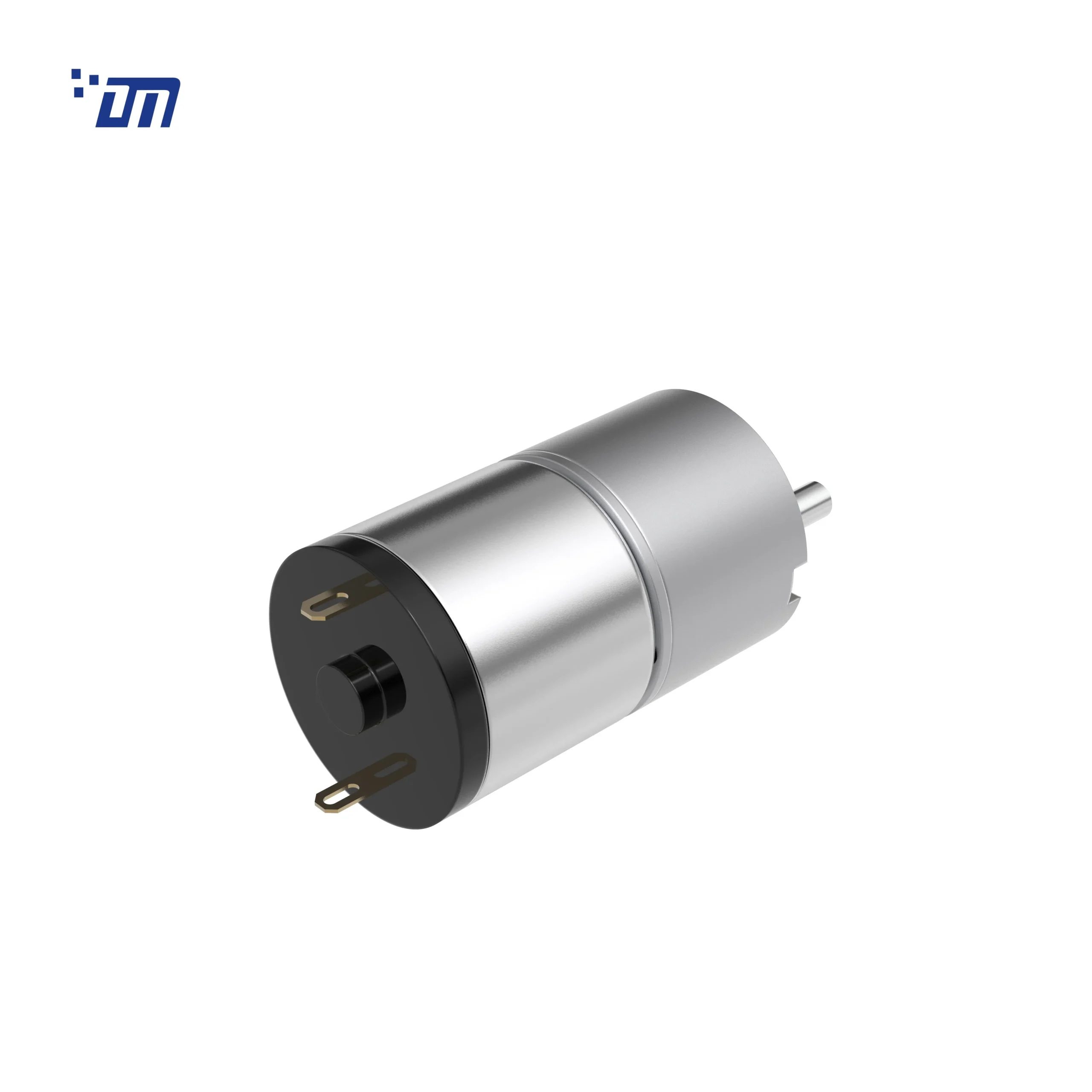

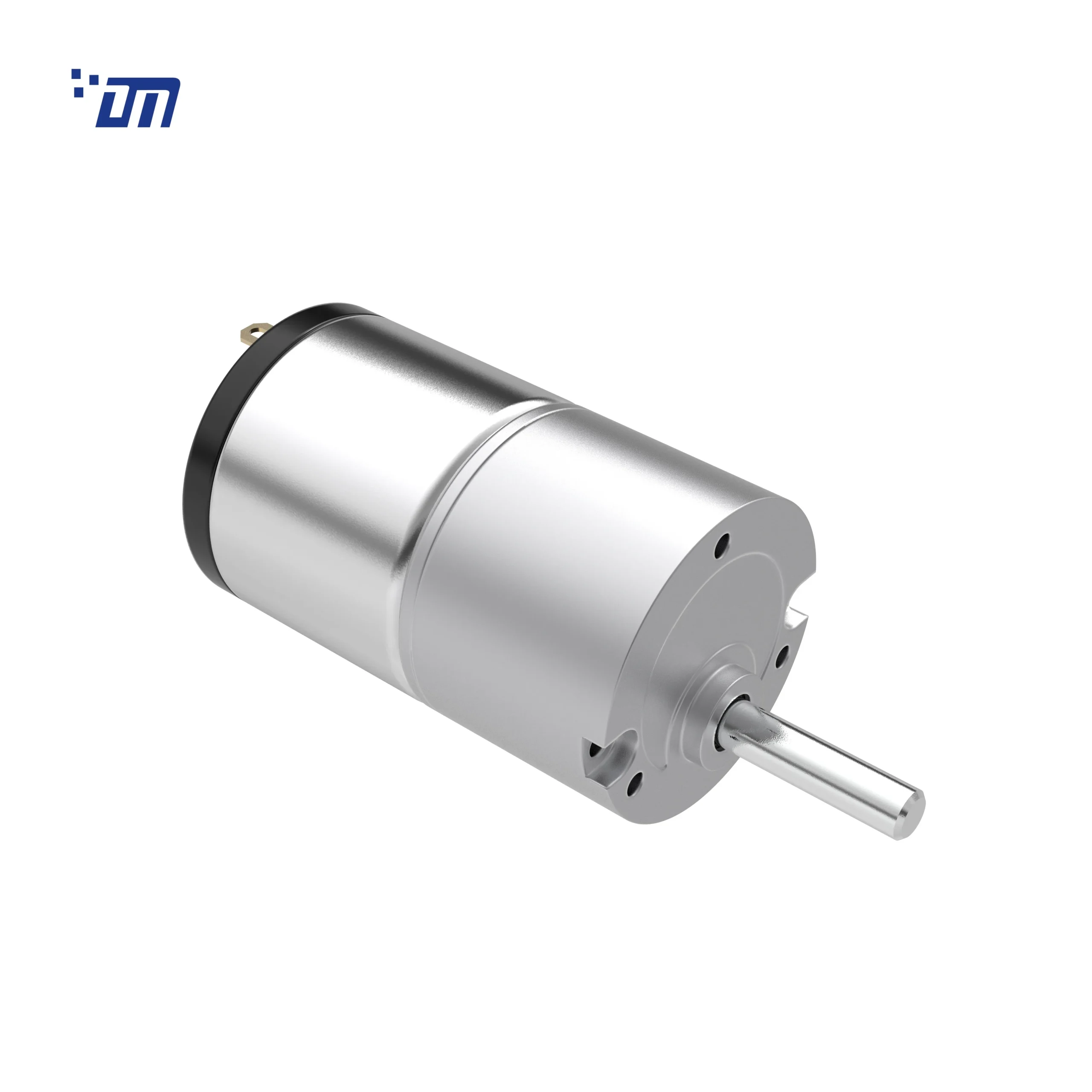

DM-33SM528

Key Features
Model: DM-33SM528

Diamater: 33mm
Voltage: 6V~24VDC
Speed: 3RPM~373RPM
Torque: 0.3kg.cm~9kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Spur Gears
4. Metal Gearbox

Customization:
Voltage, Current, Speed, Torque, Output Shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

Product Dimensions（unit:mm）

Gearbox Ratio:


Number of stages	3	4	5	6	7
Reduction Ratio i	20	50	125	312.5	781
Gearbox Length L (mm)	17.7	19.9	22.2	24.4	26.75
Breaking Torque(kgf.cm)	10	15	20	24	24
Gearbox Efficiency	73%	65%	59%	53%	48%

DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.


DC Motor Model	Rated	No Load		Max Efficiency Load				Stall
	Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-528-012-3000	12	≤40	3000	≤180	2200	40	0.9	≥160	≥720
DM-528-012-4500	12	≤60	4500	≤350	3300	60	2.0	≥210	≥1400
DM-528-012-6000	12	≤70	6000	≤720	4500	80	3.7	≥300	≥2800
DM-528-024-3000	24	≤15	3000	≤80	2200	40	0.9	≥140	≥320
DM-528-024-4500	24	≤25	4500	≤180	3300	60	2.0	≥210	≥730

Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.


DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-33SM528012210.2-20K	12	0.06	210.2	0.22	173.2	0.6	1.09	3.0	1.01
DM-33SM52802413.1-312.5K	24	0.03	13.1	0.08	9.9	4.7	0.48	19.0	0.27
The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i) Gear Motor Output Torque=DC Motor TorqueGear RatioGearbox Efficiency. ( t=tmiη)										The motor parameters are for reference only,please refer to real measured data;	The motor parameters are for reference only,please refer to real measured data;	The motor parameters are for reference only,please refer to real measured data;	The motor parameters are for reference only,please refer to real measured data;	The motor parameters are for reference only,please refer to real measured data;	The motor parameters are for reference only,please refer to real measured data;	The motor parameters are for reference only,please refer to real measured data;	The motor parameters are for reference only,please refer to real measured data;	The motor parameters are for reference only,please refer to real measured data;
