DM-BL2838

Key Features
Model: DM-BL2838

Diamater: 28mm
Voltage: 6V~24VDC
Speed: 3RPM~1500RPM
Torque: 0.5kg.cm~15kg.cm

Customization:
Voltage, Current, Speed, Torque, Output Shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

Product Dimensions（unit:mm）

Driving Motor Data


DC Motor Model	Rated	No load		Max efficiency load				Stall
	Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	mA	r/min	mA	r/min	g.cm	W	g.cm	mA
DM-BL2838-006-3100	6	≤130	3100	≤670	2360	107.6	2.6	≥421.1	≥2000
DM-BL2838-006-4500	6	≤200	4500	≤750	3600	73.4	3.9	≥387.6	≥2100
DM-BL2838-012-4600	12	≤89	4600	≤380	3650	85.9	3.2	≥4160	≥2100
DM-BL2838-012-6100	12	≤133	6100	≤660	4700	108.5	5.2	≥459	≥3500
DM-BL2838-024-4700	24	≤52	4700	≤220	3650	99.5	3.7	≥432.5	≥1100
DM-BL2838-024-6100	24	≤78	6100	≤350	4580	117	5.5	≥469.5	≥2000

Rated at peak efficiency; continuous operation constrained by winding temperature.

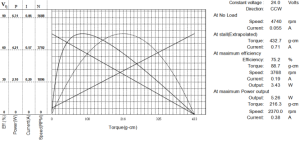

Motor Characteristic Curves

Customizable motor performance and shaft length available upon request.
