DM-27SM370

Key Features
Model: DM-27SM370

Diamater: 27mm
Voltage: 5~12VDC
Speed: 4RPM~400RPM
Torque: 0.4kg.cm~5kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Spur Gears
4. Metal Gearbox

Customization:
Voltage,  Current,  Speed,  Torque,  Output Shaft,  DC Motor,  Gearbox,  Ratio,  Brush of DC Motor,  Wire, Encoder,  Gear,  Noise Level,  Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

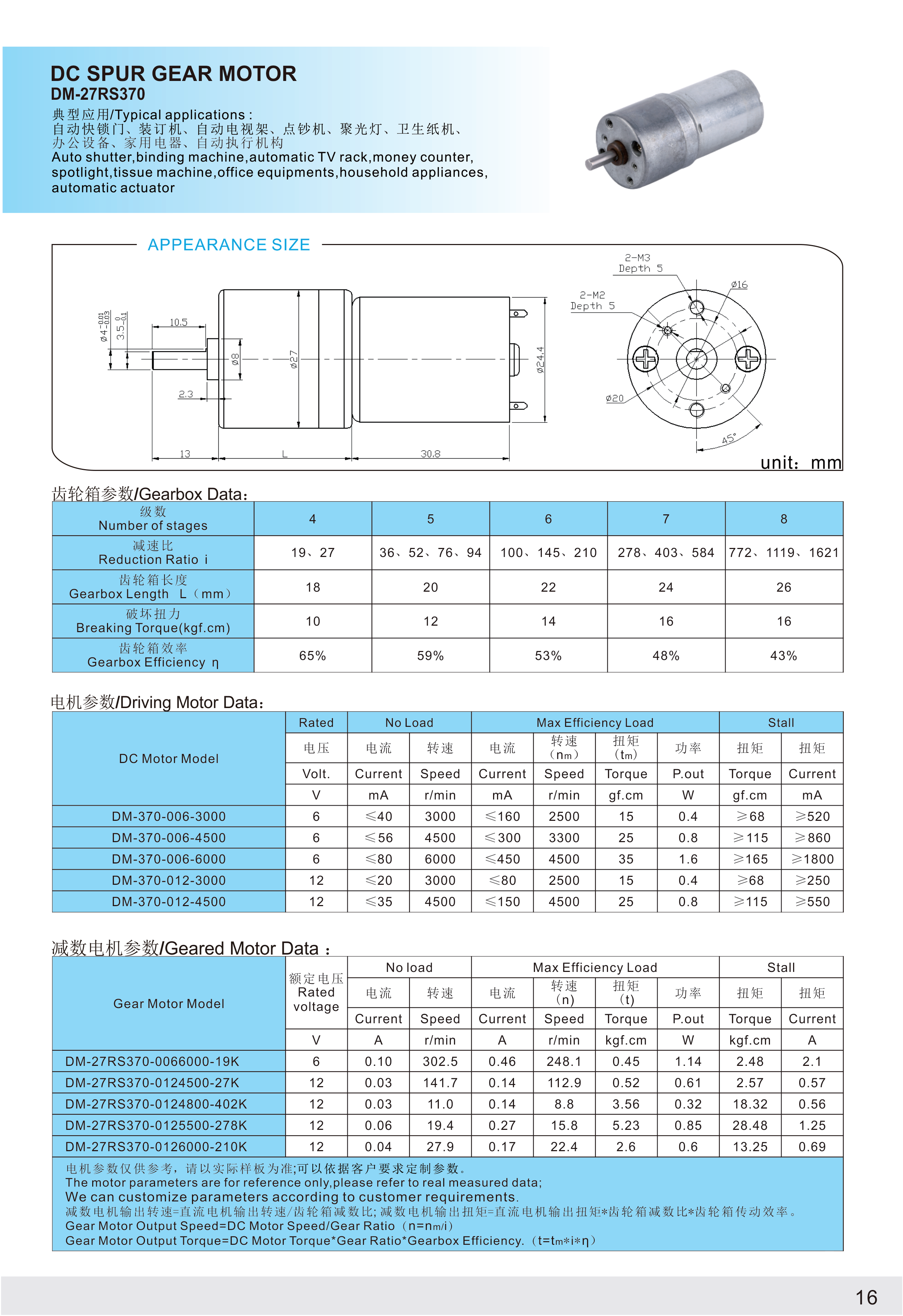

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages 4 5 6 7 8
Reduction Ratio i 19、27 36、52、76、94 100、145、210 278、403、584 772、1119、1621
Gearbox Length L (mm) 18 20 22 24 26
Breaking Torque(kgf.cm) 10 12 14 16 16
Gearbox Efficiency 65% 59% 53% 48% 43%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
DM-370-006-3000 6 ≤40 3000 ≤160 2500 15 0.4 ≥68 ≥520
DM-370-006-4500 6 ≤56 4500 ≤300 3300 25 0.8 ≥115 ≥860
DM-370-006-6000 6 ≤80 6000 ≤450 4500 35 1.6 ≥165 ≥1800
DM-370-012-3000 12 ≤20 3000 ≤80 2500 15 0.4 ≥68 ≥250
DM-370-012-4500 12 ≤35 4500 ≤150 4500 25 0.8 ≥115 ≥550



Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-27SM370006302.5-19K 6 0.10 302.5 0.46 248.1 0.45 1.14 2.48 2.1
DM-27SM370012141.7-27K 12 0.03 141.7 0.14 112.9 0.52 0.61 2.57 0.57
DM-27SM370012011-402K 12 0.03 11.0 0.14 8.8 3.56 0.32 18.32 0.56
DM-27SM37001219.4-278K 12 0.06 19.4 0.27 15.8 5.23 0.85 28.48 1.25
DM-27SM37001227.9-210K 12 0.04 27.9 0.17 22.4 2.6 0.6 13.25 0.69
DM-27SM370012079-76K 12 0.06 79 0.148 61.9 0.969 35.4 5.667 0.727
DM-27SM370012116-36K 12 0.08 116 0.132 83.9 0.559 0.492 2.486 0.456
DM-27SM370012042-100K 12 0.045 42 0.091 32.4 0.893 0.303 5.283 0.456
DM-27SM370012029-145K 12 0.045 29 0.078 23.1 1.262 0.305 7.759 0.419
DM-27SM370012020-210K 12 0.045 20 0.035 18.5 0.716 0.138 8.953 0.409
DM-27SM370012015-277K 12 0.05 15 0.103 12.3 2.478 0.318 12.599 0.438
DM-27SM370012138-36K 12 0.075 138 0.178 103.4 0.65 0.704 3.25 0.740
DM-27SM370012173-52K 12 0.25 173 0.762 145.8 2.257 3.444 11.919 3.172
DM-27SM370012115-52K 12 0.18 115 0.325 74.0 1.498 1.161 5.396 0.891
DM-27SM370012063-94K 12 0.15 63 0.306 47.3 2.06 1.019 9.351 1.097
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
