DM-13SM050

Key Features

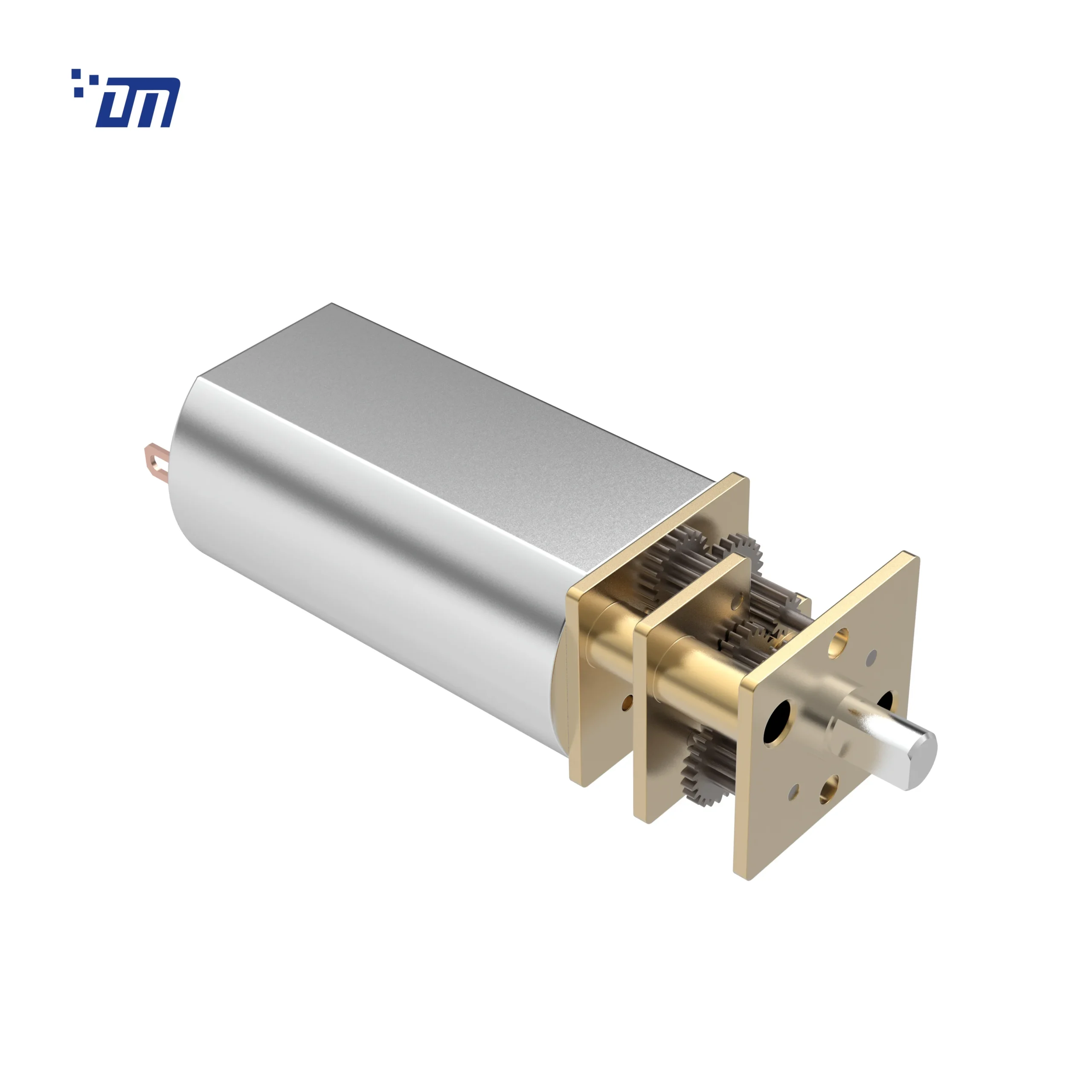

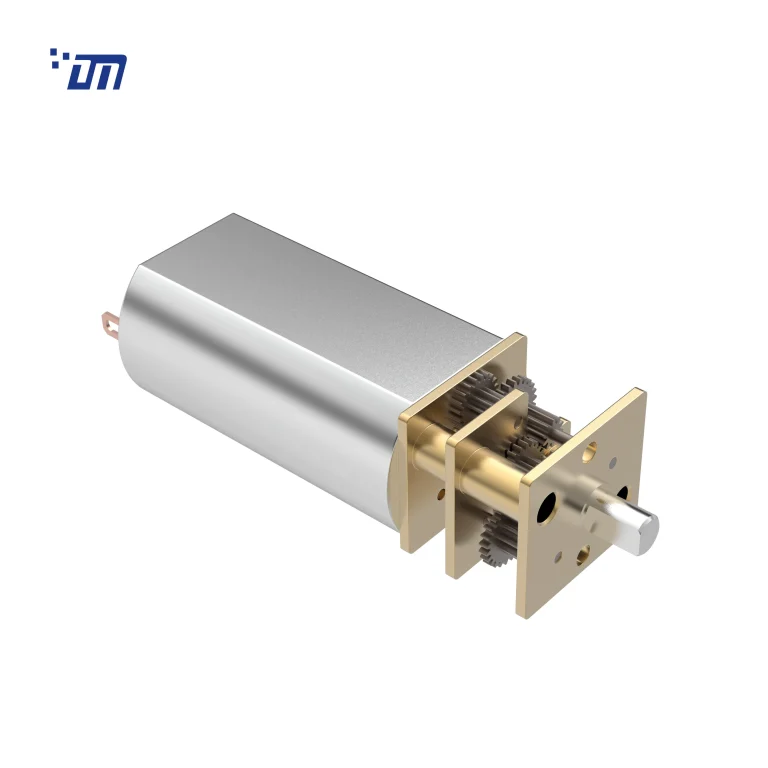

Model: DM-13SM050

Diamater: 12mm
Voltage: 3~12VDC
Speed: 7~1500RPM
Torque: 0.06kg.cm~2.5kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Spur Gears
4. Copper Plate Gearbox

Customization:
Voltage,  Current,  Speed,  Torque,  Output Shaft,  DC Motor,  Gearbox,  Ratio,  Brush of DC Motor,  Wire, Encoder,  Gear,  Noise Level,  Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages 2 4 5
Reduction Ratio i 3、7、10 16、17、20、30、35、50、63、70、86 115、150、210、250、380
Gearbox Length L (mm) 11 11 11
Breaking Torque(kgf.cm) 0.6 0.9 2
Gearbox Efficiency 81% 65% 59%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
DM-050-006-9000 6 ≤60 9000 ≤260 7500 8 0.6 ≥30 ≥550
DM-050-006-12000 6 ≤70 12000 ≤300 9300 10 1.0 ≥40 ≥1000
DM-050-012-9000 12 ≤30 9000 ≤130 7500 8 0.6 ≥30 ≥300
DM-050-012-12000 12 ≤50 12000 ≤200 10000 10 10 ≥40 ≥600



Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-13SM050005354.3-35K 5 0.11 354.3 0.45 282.5 0.31 0.90 1.53 1.74
DM-13SM050005202-63K 5 0.10 202.0 0.41 160.6 0.56 0.92 2.73 1.61
DM-13SM050005144.6-86K 5 0.10 144.6 0.38 117.8 0.66 0.80 3.60 1.69
DM-13SM050006416.1-63K 6 0.44 416.1 1.43 305.1 0.78 2.44 2.91 4.16
DM-13SM050006317.8-86K 6 0.28 317.8 1.11 257.3 0.93 2.46 4.90 4.61
DM-13SM05001225-360K 12 0.09 25 0.141 17.8 2.33 0.434 8.339 0.361
DM-13SM0500121600-10K 12 0.13 1600 0.376 1006 0.13 1.383 0.441 0.922
DM-13SM0500241100-20K 24 0.055 1100 0.034 1025 0.05 0.588 1.37 0.912
DM-13SM0500121600-10K 12 0.09 1600 0.376 1039.5 0.29 3.189 1.079 1.035
DM-13SM0500121600-10K 12 0.11 1600 0.355 1123.1 0.21 2.496 0.982 1.247
DM-13SM050012290-50K 12 0.07 290 0.117 251.0 0.26 0.672 1.596 0.626
DM-13SM050012483-30K 12 0.06 483 0.203 377.7 0.24 0.937 1.164 0.798
DM-13SM05000652-250K 6 0.23 52 0.459 36.4 1.82 0.694 6.671 1.304
DM-13SM050012254-63K 12 0.75 254 0.194 211.9 0.43 0.944 2.577 0.955
DM-13SM050012457-35K 12 0.75 457 0.250 374.8 0.301 1.183 1.442 0.949
DM-13SM050012106-150K 12 0.75 106 0.167 90.4 0.88 0.833 5.581 0.900
DM-13SM050003320-50K 3 0.26 320 0.772 212.3 0.331 0.736 1.256 2.172
DM-13SM050003320-50K 3 0.3 320 0.590 235.2 0.218 0.538 0.81 1.688
DM-13SM05000344-360K 3 0.27 44 0.609 33.0 1.621 0.560 7.194 2.109
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
