DM-16PMC1620

Key Features
Model: DM-16PMC1620

Diamater: 16mm
Voltage: 3V~12VDC
Speed: 3RPM~1600RPM
Torque: 0.03kg.cm~3kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Planetary Gears
4. Metal Planetary Gearbox

Customization:
Voltage, Current, Speed, Torque, Output shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

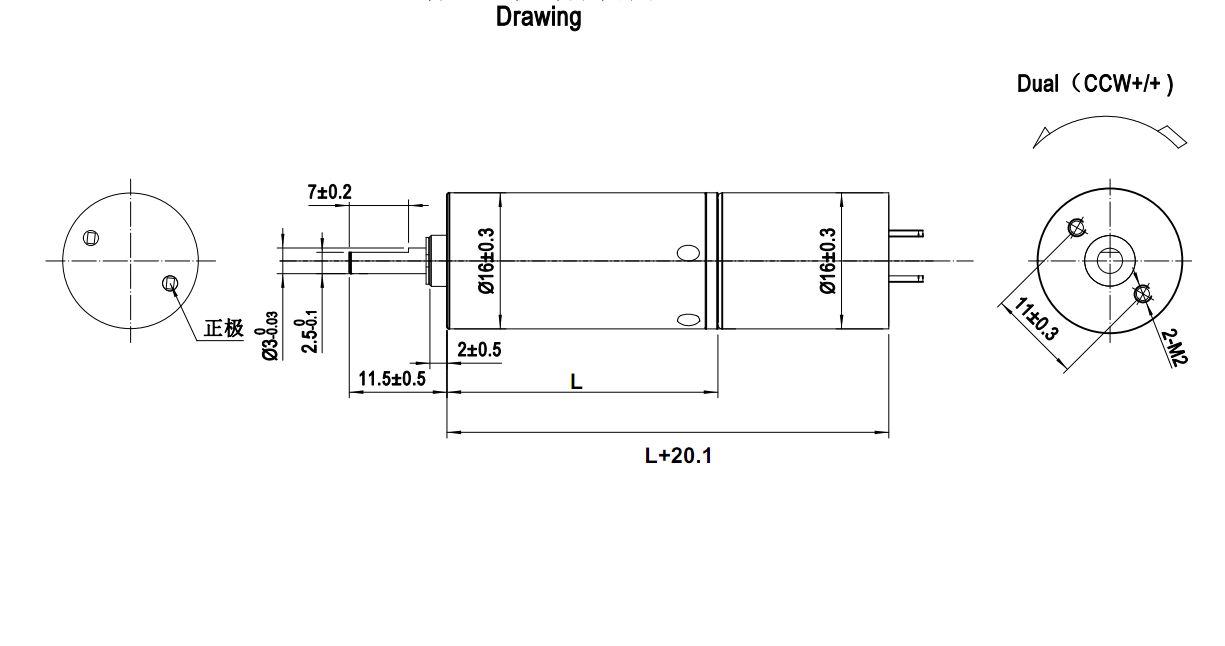

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages 1 2 3 4 5
Reduction Ratio i 4、4.75 16、22.5 64、79、107 256、361、509 1024、2418
Gearbox Length L (mm) 18.1 22.7 27.3 31.9 36.5
Breaking Torque(kgf.cm) 2 3 4 5 5
Gearbox Efficiency 90% 81% 73% 65% 59%



Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-16PMC1620024530-22.5K 24 0.05 530 0.18 419 4 1.73 19 0.73
DM-16PMC1620006030-361K 6 0.37 30 0.72 14.6 4.2 0.65 12.54 1.41
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
