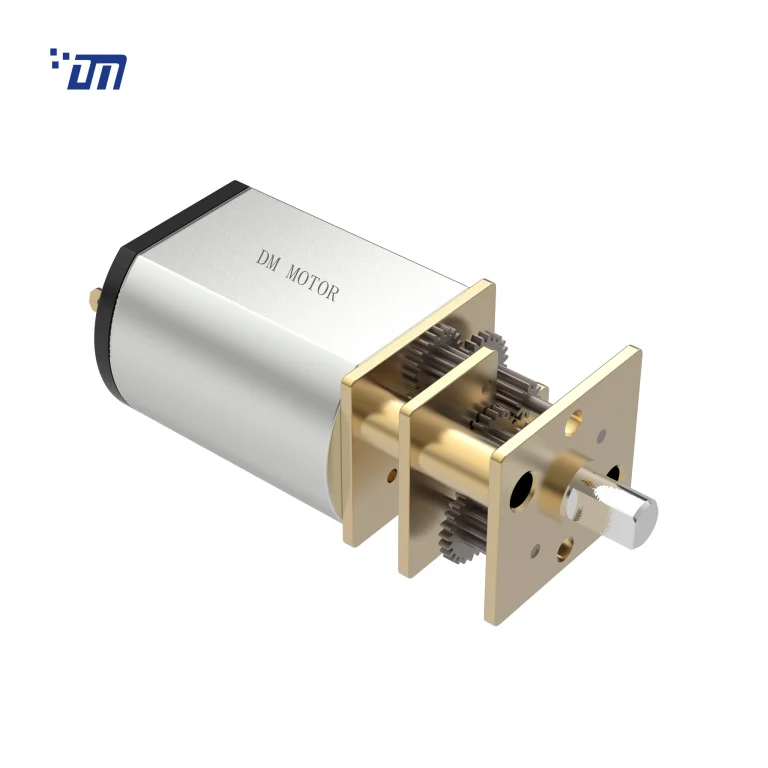

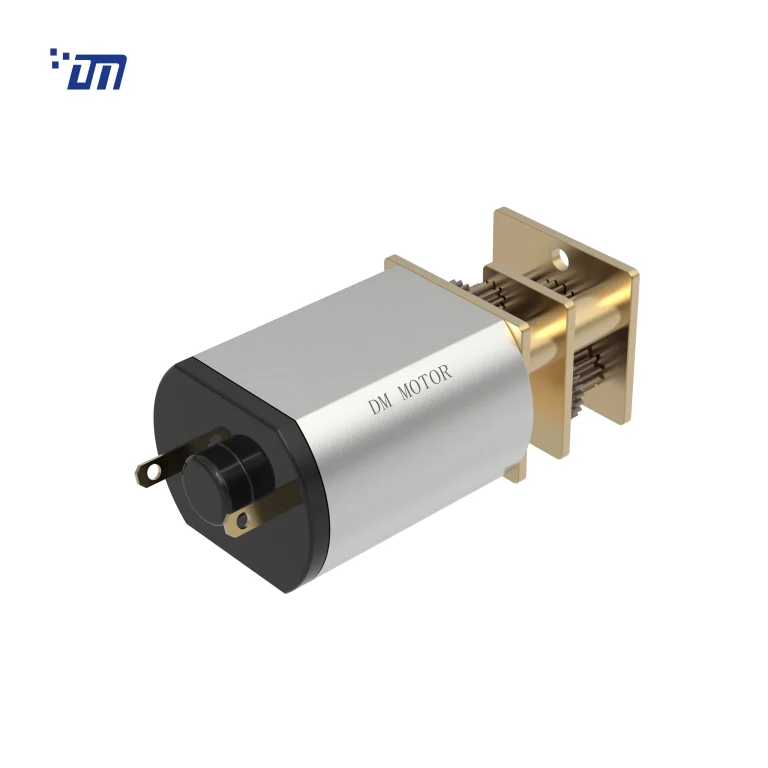

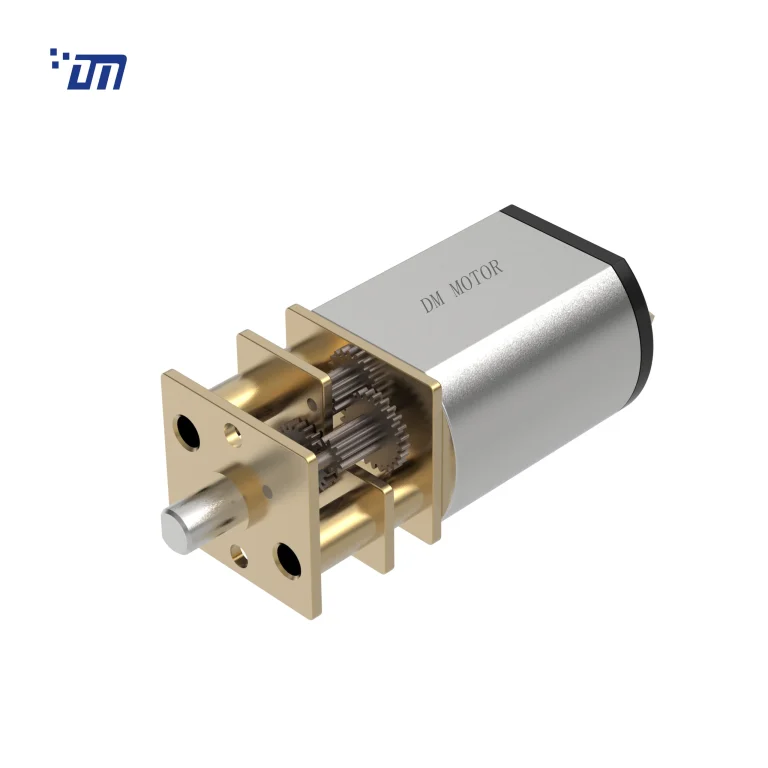

DM-13SM030

DM-13SM030

型号: DM-13SM030

Diamater: 13mm
Voltage: 3~12VDC
Speed: 7~1200RPM
Torque: 0.06kg.cm~2kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Spur Gears
4. Copper Plate Gearbox

Customization:
Voltage, Current, Speed, Torque, Output Shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

产品规格书产品3D图询盘

产品尺寸（单位：毫米）

变速箱传动比:


Number of stages	2	4	5

Number of stages	2	4	5
Reduction Ratio i	3、7、10	16、17、20、30、35、50、63、70、86	115、150、210、250、360
Gearbox Length L (mm)	11	11	11
Breaking Torque(kgf.cm)	0.6	0.9	2
Gearbox Efficiency	81%	65%	59%

直流电机数据:

备注：以上直流电机数据用于根据给定公式定制直流齿轮电机.

DC Motor Model
Rated
No Load
Max Efficiency Load
Stall

Volt.
Current
Speed
Current
Speed
Torque
P.out
Torque
Current

V
mA
r/min
mA
r/min
gf.cm
W
gf.cm
mA

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA

DM-030-003-80000 3 ≤55 80000 ≤250 6000 4 0.2 ≥16 ≥500
DM-030-003-10500 3 ≤80 105000 ≤300 7200 5 0.4 ≥20 ≥750
DM-030-006-80000 6 ≤30 8000 ≤120 5000 4 0.2 ≥16 ≥150
DM-030-006-10500 6 ≤40 10500 ≤160 7000 5 0.4 ≥20 ≥400



DC Motor Model	Rated	No Load	Max Efficiency Load	Stall
Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-030-003-80000	3	≤55	80000	≤250	6000	4	0.2	≥16	≥500
DM-030-003-10500	3	≤80	105000	≤300	7200	5	0.4	≥20	≥750
DM-030-006-80000	6	≤30	8000	≤120	5000	4	0.2	≥16	≥150
DM-030-006-10500	6	≤40	10500	≤160	7000	5	0.4	≥20	≥400

齿轮电机数据:

备注：以上图表中的数据仅供参考。如需其他配置，可根据以下公式计算，或直接联系我们.


DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A

DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-13SM030003784.4-10K	3	0.04	784.4	0.18	619.2	0.04	0.23	0.17	0.68
DM-13SM03000371.9-150K	3	0.12	71.9	0.32	52.9	0.33	0.18	1.25	0.90
DM-13SM03000353-150K	3	0.09	53	0.165	37.0	0.34	0.130	1.41	0.514
DM-13SM03000322-360K	3	0.09	22	0.169	15.2	0.87	0.137	3.18	0.467
DM-13SM03001241.7-360K	12	0.06	41.7	0.095	0.095	0.98	0.353	5.11	0.388
The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i) Gear Motor Output Torque=DC Motor TorqueGear RatioGearbox Efficiency. ( t=tmiη)
