DM-BL5772 57mm brushless DC motor, 24V, white background product photo
DM-BL5772 57mm brushless DC motor, 24V, white background product photo
QC CEQC RoHSQC SGSQC ISO

DM-BL5772

Key Features
Model: DM-BL5772

Diameter: 57mm
Voltage: 12~24VDC
Speed: 2934~6400RPM
Torque: 1020~1303g.cm
Weight: 624g
Customization: voltage, speed, shaft length and connector are customizable.

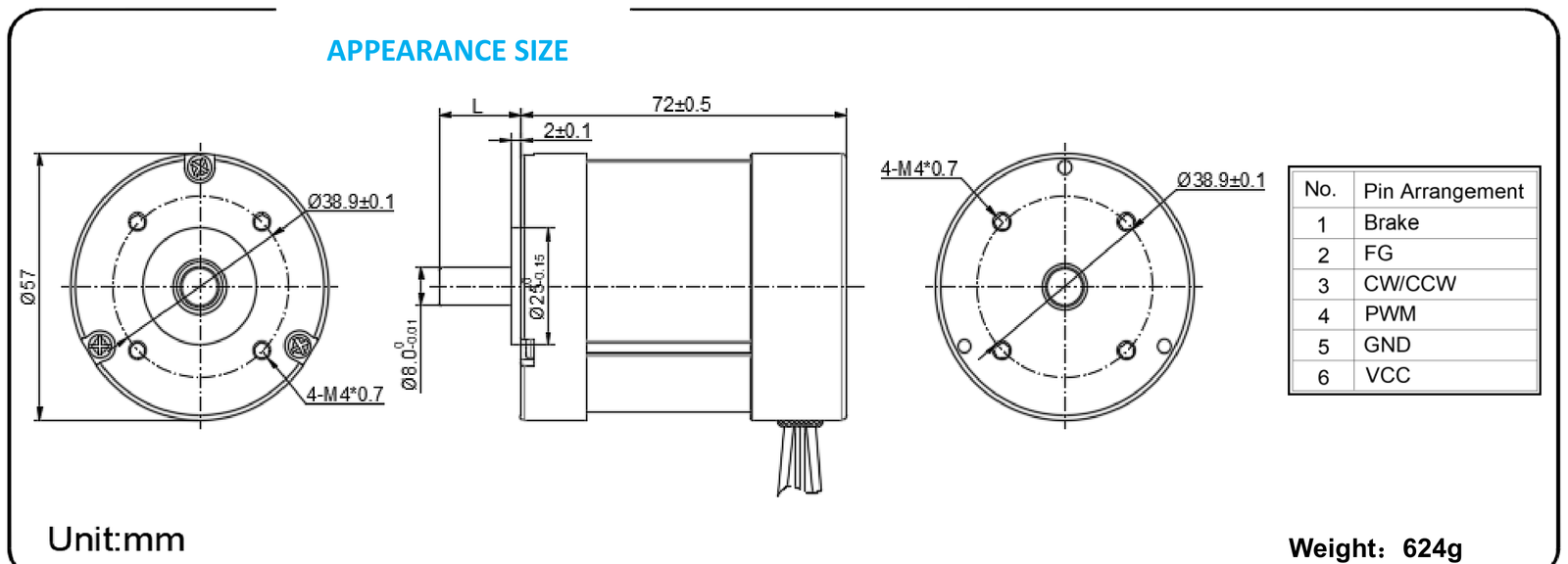

Product Dimensions（unit:mm）

DM-BL5772 dimensions

Driving Motor Data

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min g.cm W g.cm A
DM-BL5772-012-3300 12 ≤0.35 3300 ≤3.0 2934 1020 30.69 ≥8214 ≥18.0
DM-BL5772-012-6300 12 ≤0.75 6300 ≤6.3 5480 1080 60.7 ≥8297.5 ≥30.0
DM-BL5772-024-3400 12 ≤0.23 3400 ≤1.7 2953 1081 32.79 ≥8221 ≥10.0
DM-BL5772-024-6400 24 ≤0.47 6400 ≤3.8 5480 1303 73.24 ≥9065 ≥28.0
