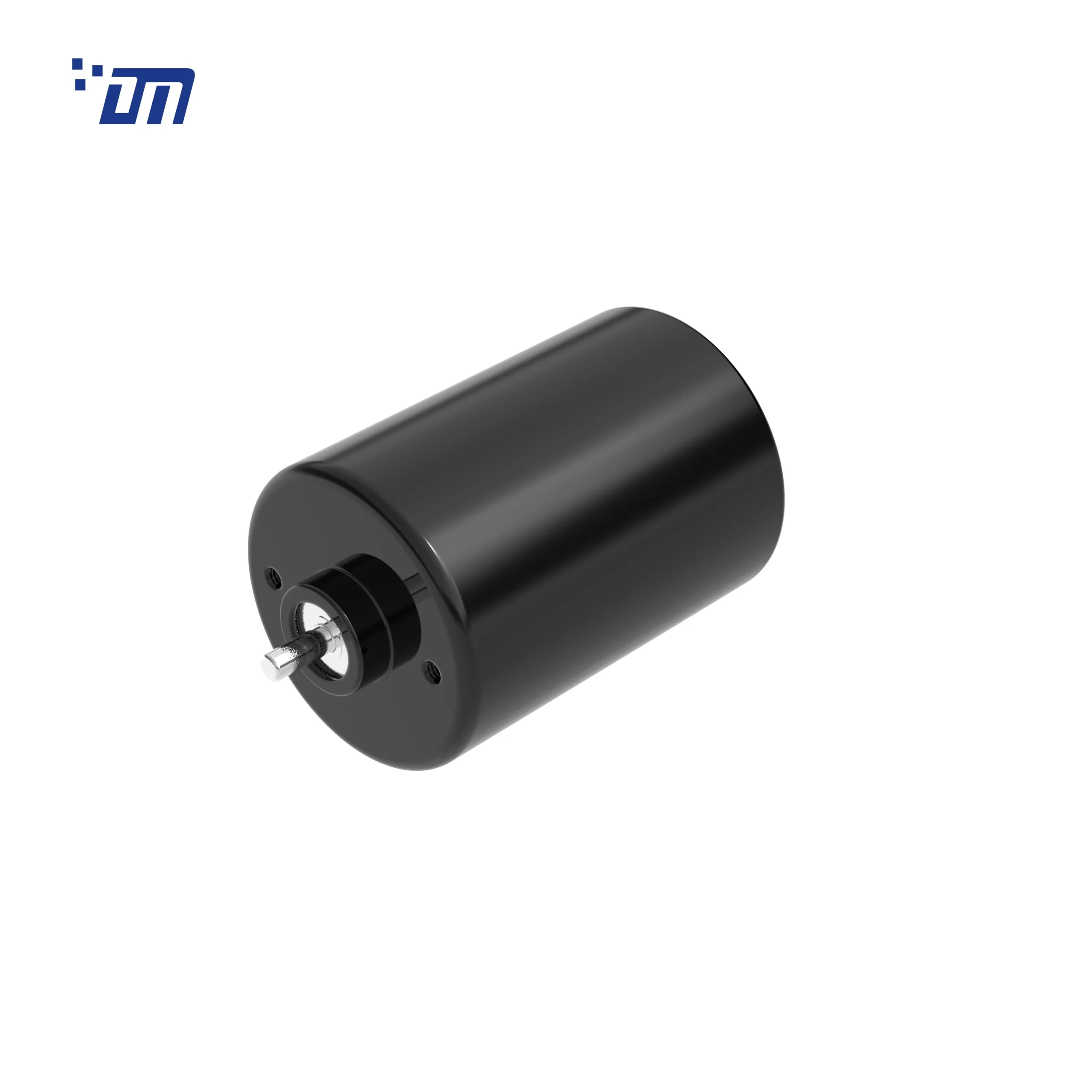

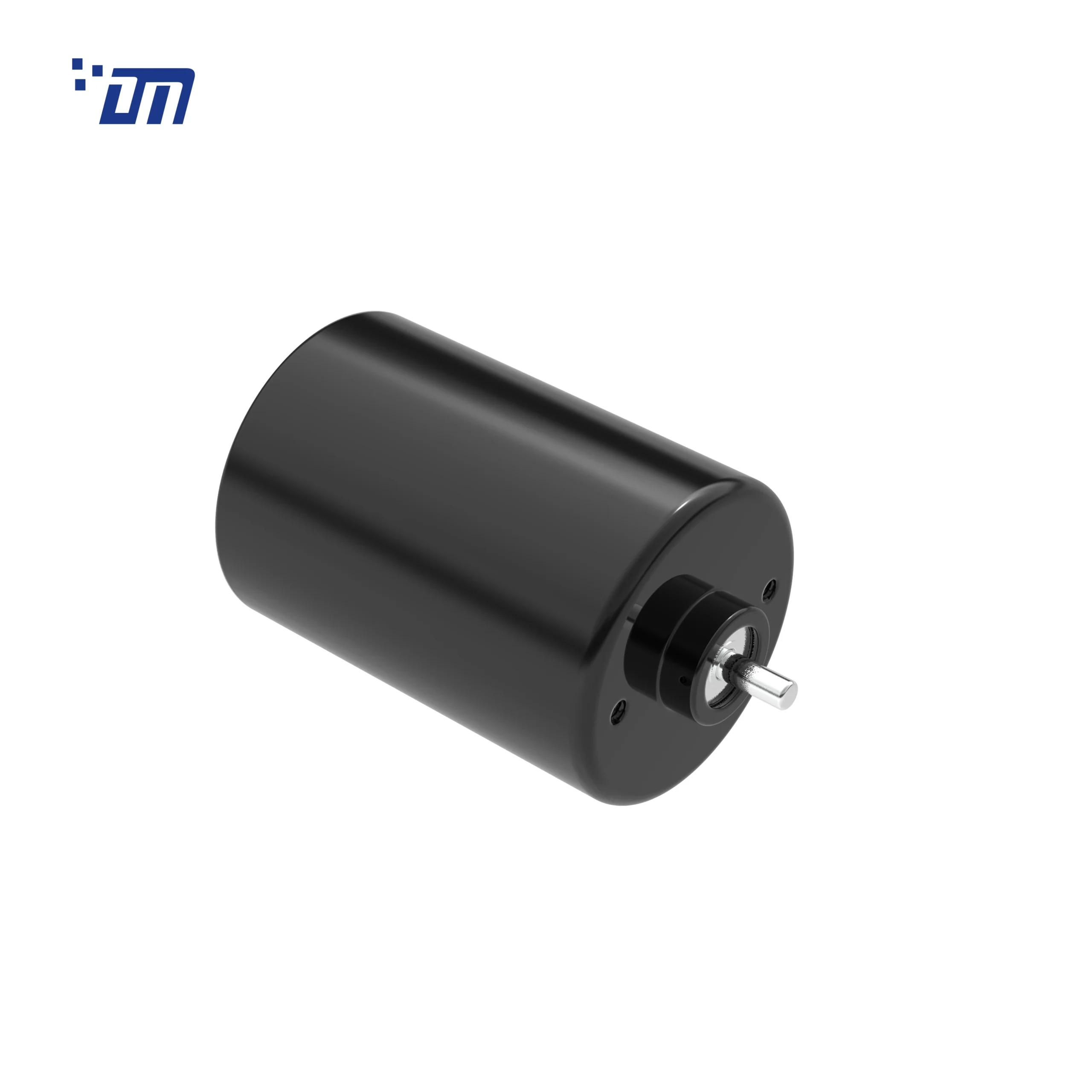

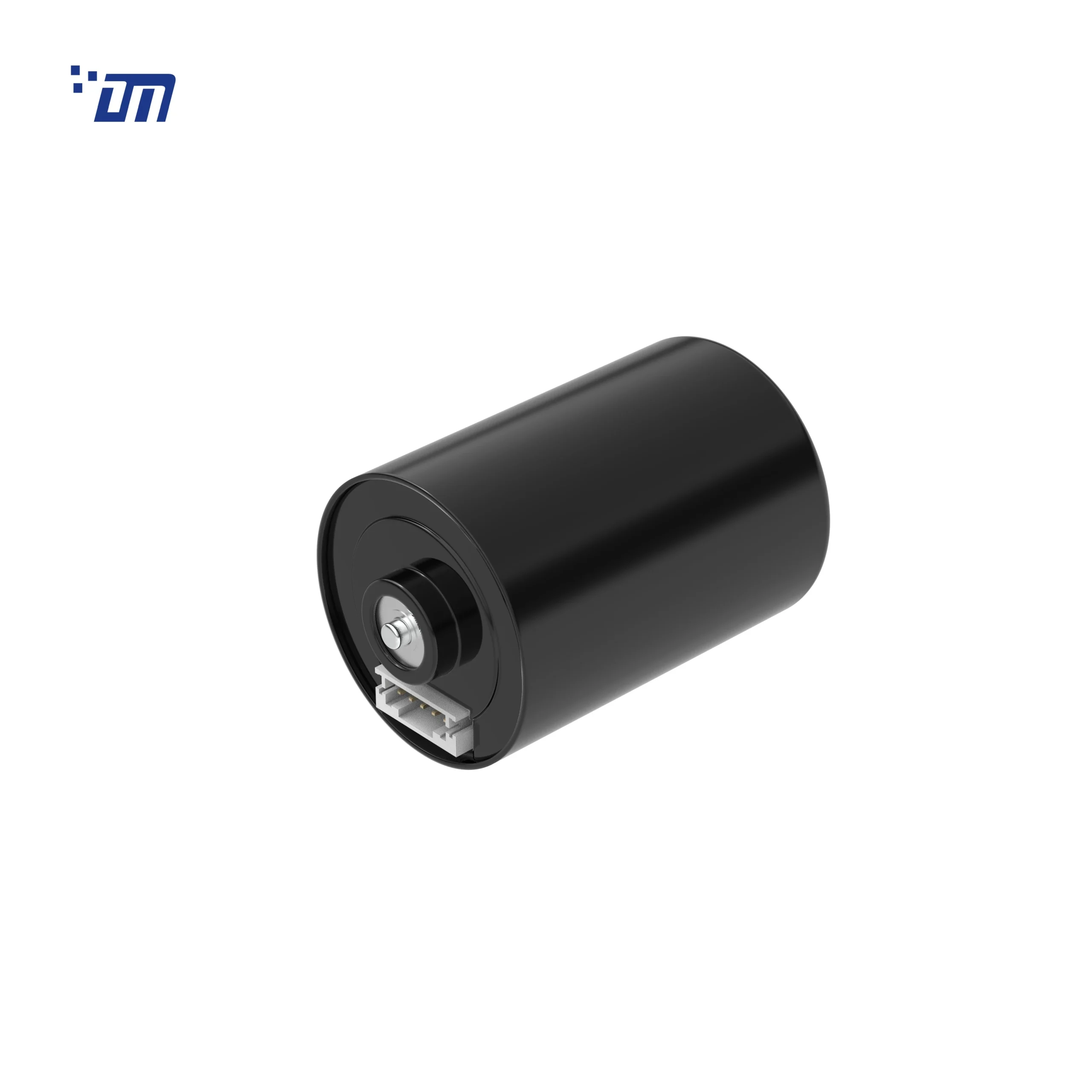

DM-BL3650

Key Features
Model: DM-BL3650

BLDC Motor
Diamater: 36mm
Voltage: 12V~24VDC
Speed: 3RPM~1500RPM
Torque: 1kg.cm~60kg.cm

Customization:
Voltage, Current, Speed, Torque, Output Shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

DataSheet3D DrawingGet Quote

Product Dimensions（unit:mm）

Driving Motor Data


DC Motor Model	Rated	No Load		Max Efficiency Load				Stall
	Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-BL3650-012-3000	12	≤170	3000	≤775	2400	1 00	2.5	≥510	≥2340
DM-BL3650-012-4500	12	≤260	4500	≤1160	3300	150	5.1	≥768	≥3520
DM-BL3650-012-6000	12	≤340	6000	≤1550	4500	200	9.2	≥1020	≥4680
DM-BL3650-024-3000	24	≤140	3000	≤600	2400	100	2.5	≥510	≥1200
DM-BL3650-024-4500	24	≤210	4500	≤900	3300	150	5.1	≥768	≥1760
DM-BL3650-012-9300	12	550	9300	2.84	7659	300	23.57	1700	13.5
DM-BL3650-012-7500	12	420	7500	2.16	6635	300	20.41	2600	16
DM-BL3650-012-7200	12	450	7200	2.25	6218	300	19.13	2200	14.20
DM-BL3650-024-6000-13	24	1400	6000	0.86	3838	400	15.75	1050	2.10

Related Products

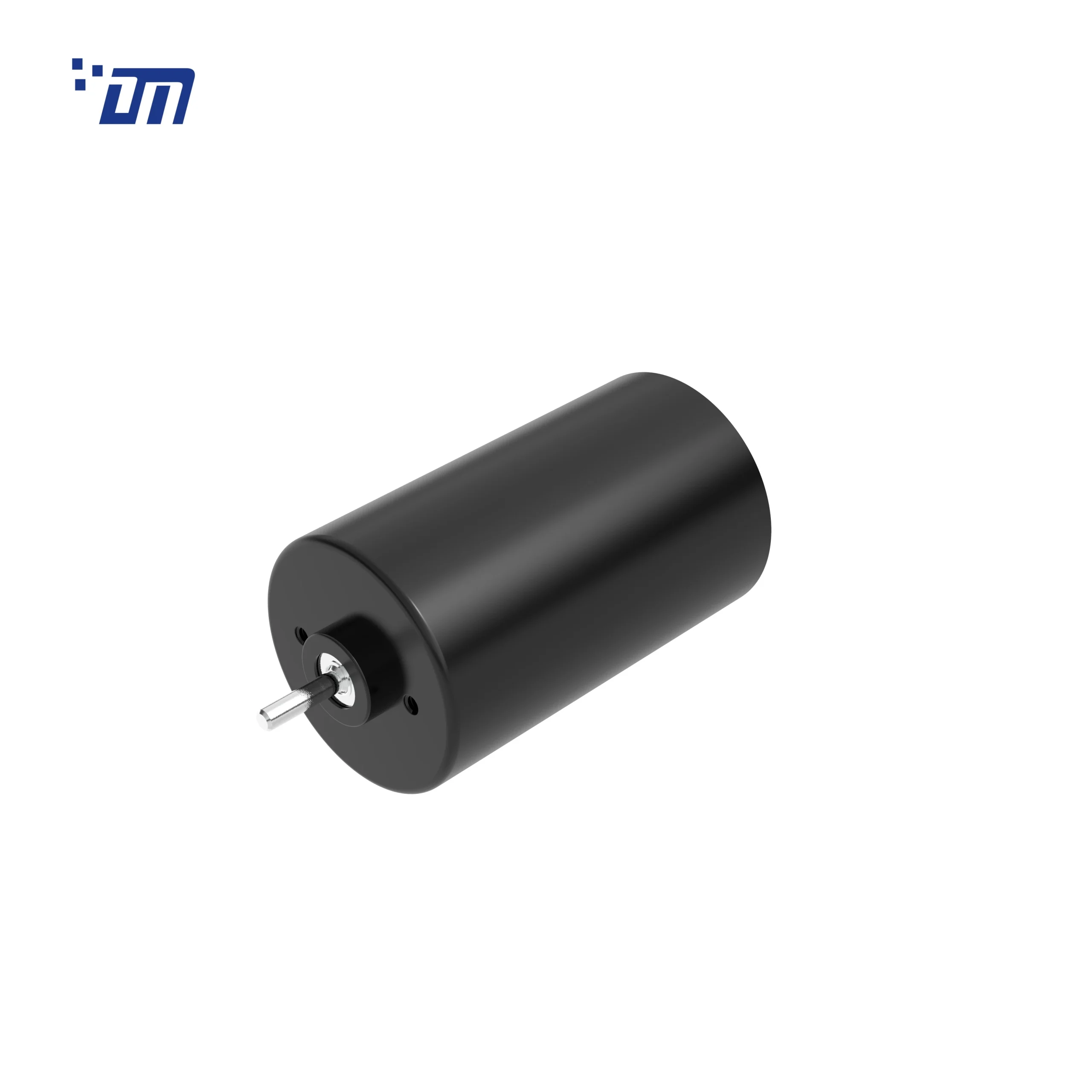

DM-BL2847

BLDC Motor Diamater: 28mm Voltage: 6V~24VDC Speed: 3RPM~1500RPM Torque: 0.5kg.cm~16kg.cm

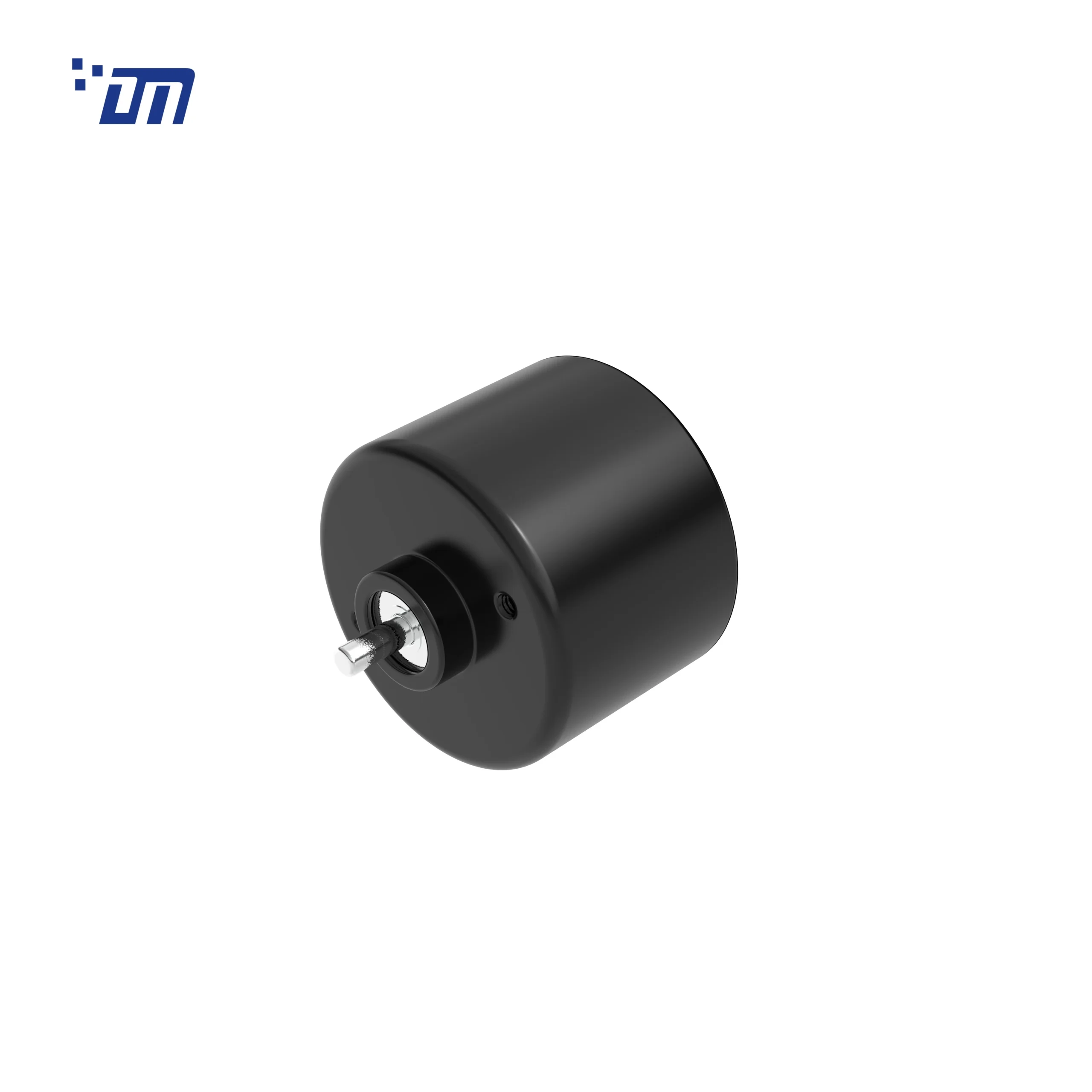

DM-BL3626

BLDC Motor Diamater: 36mm Voltage: 12V~24VDC Speed: 3RPM~1500RPM Torque: 1kg.cm~30kg.cm

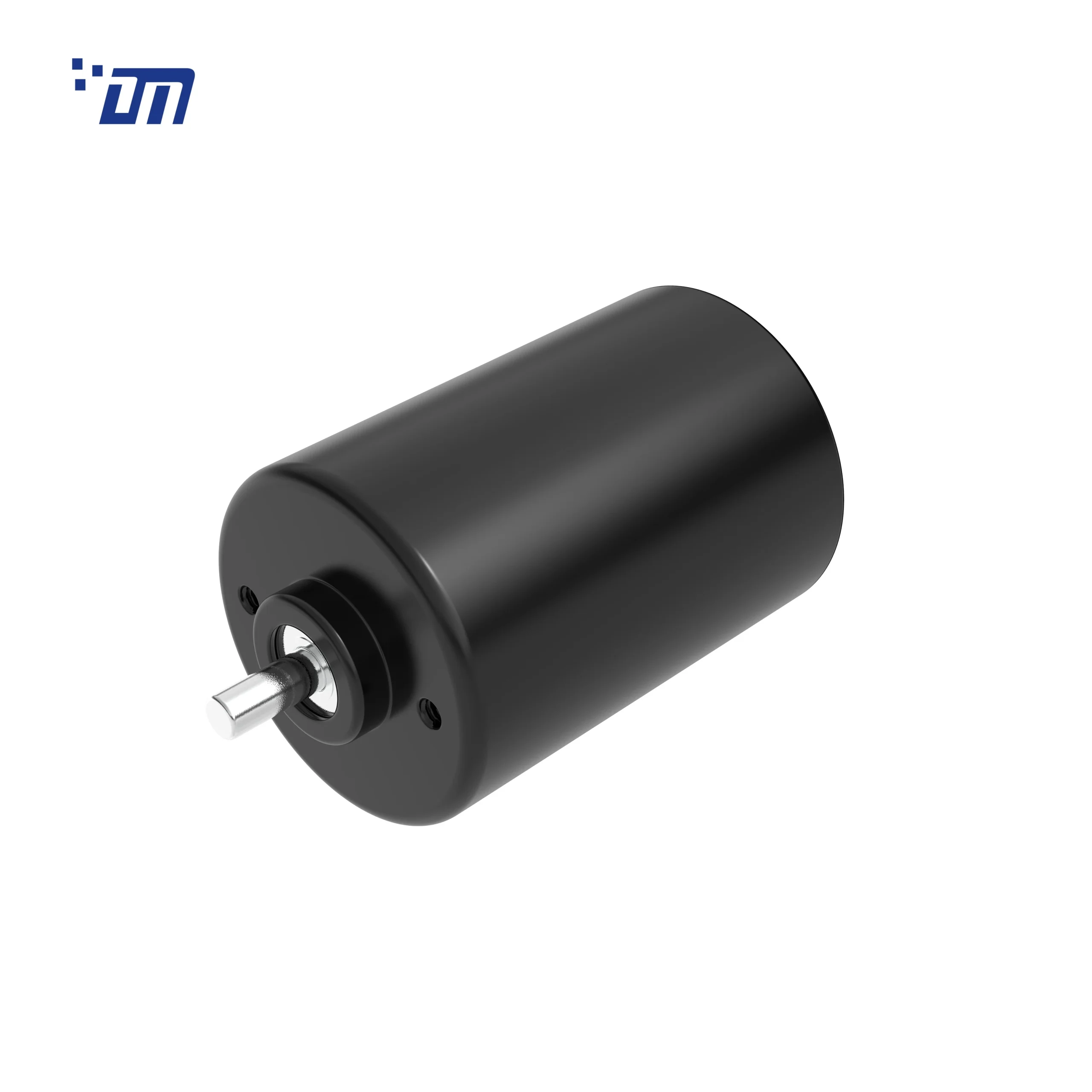

DM-BL4260

BLDC Motor Diamater: 42mm Voltage: 12V~24VDC Speed: 4RPM~800RPM Torque: 1kg.cm~62kg.cm

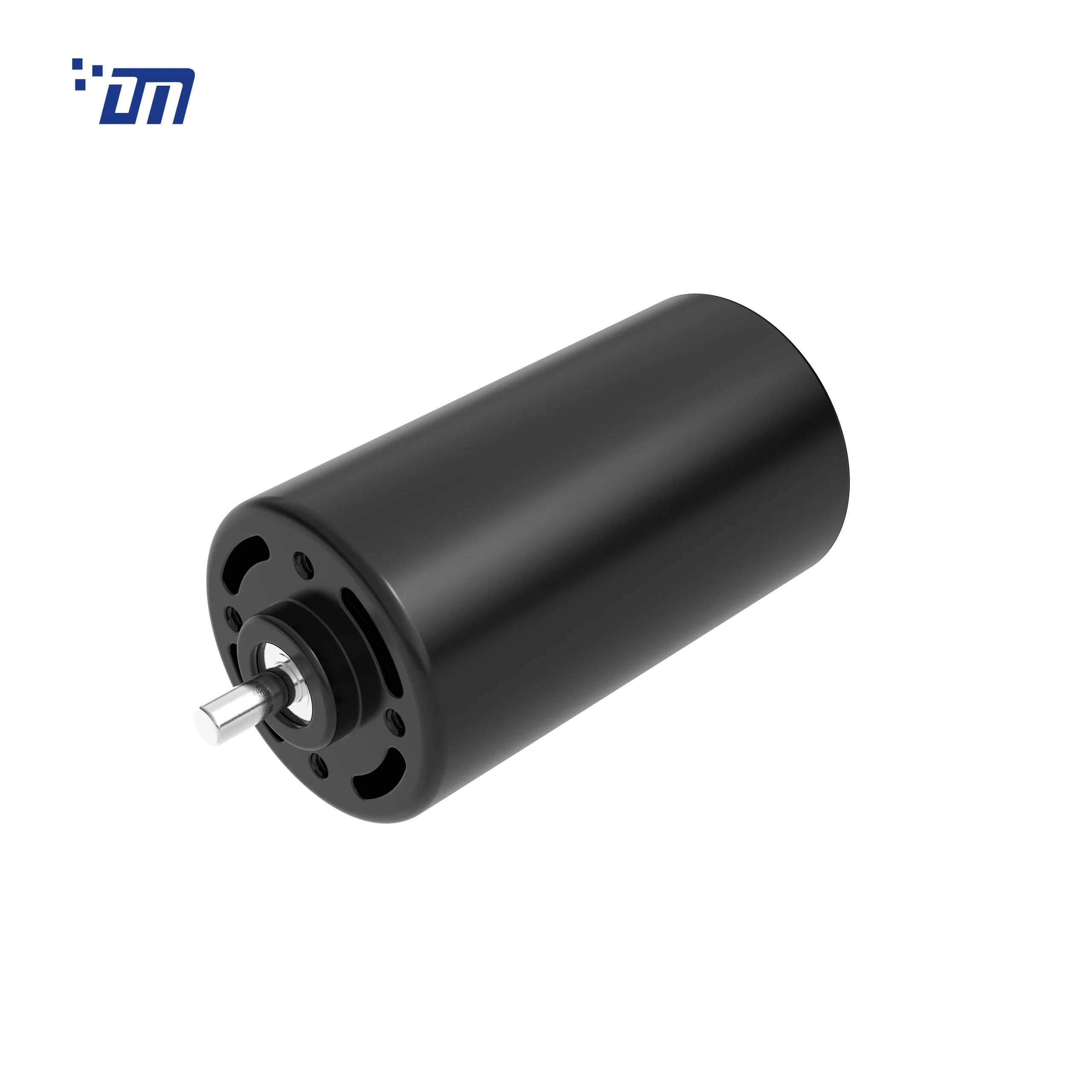

DM-BL4275

BLDC Motor Diamater: 42mm Voltage: 12V~24VDC Speed: 4RPM~800RPM Torque: 1kg.cm~62kg.cm

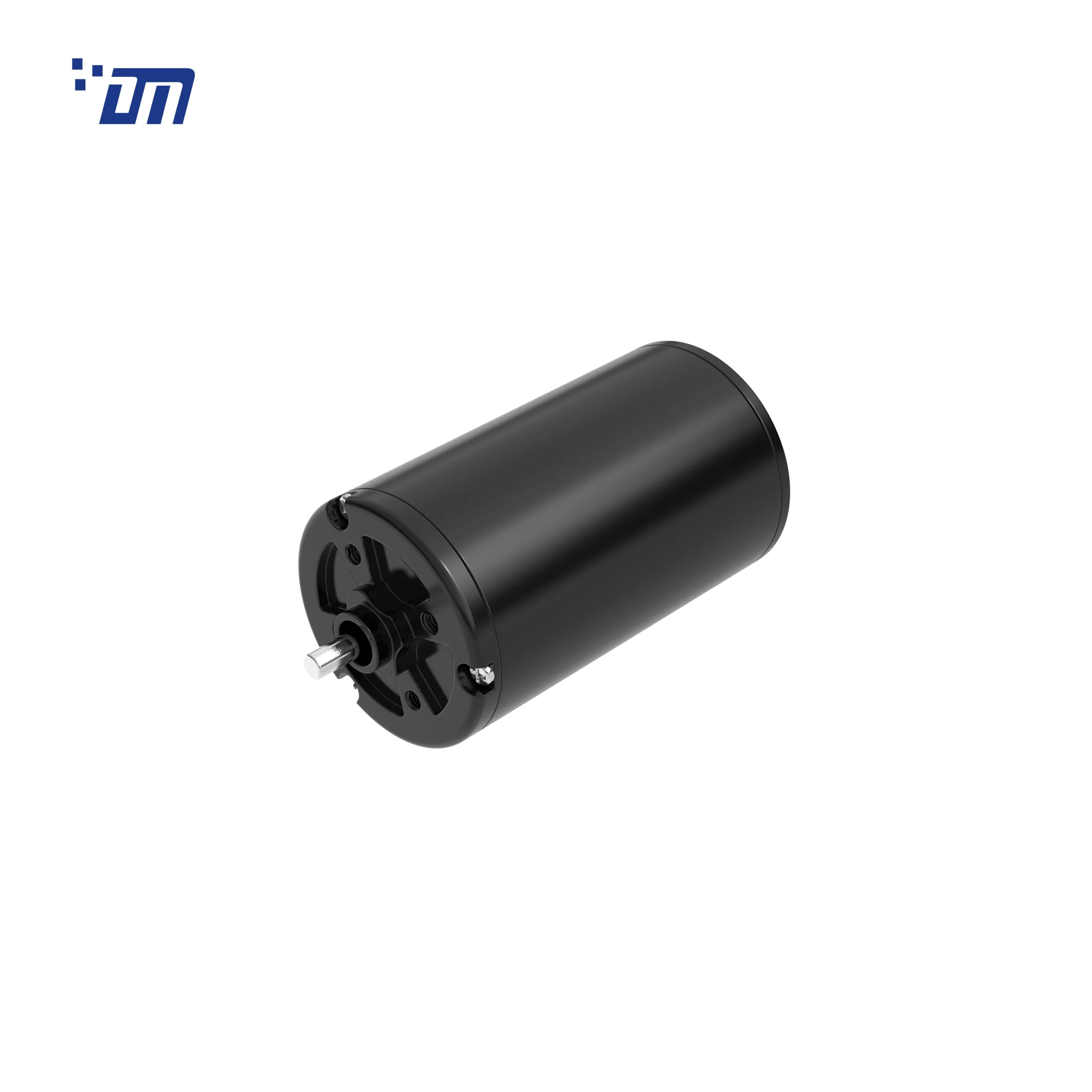

DM-BL5086
