DM-75WM555

Key Features

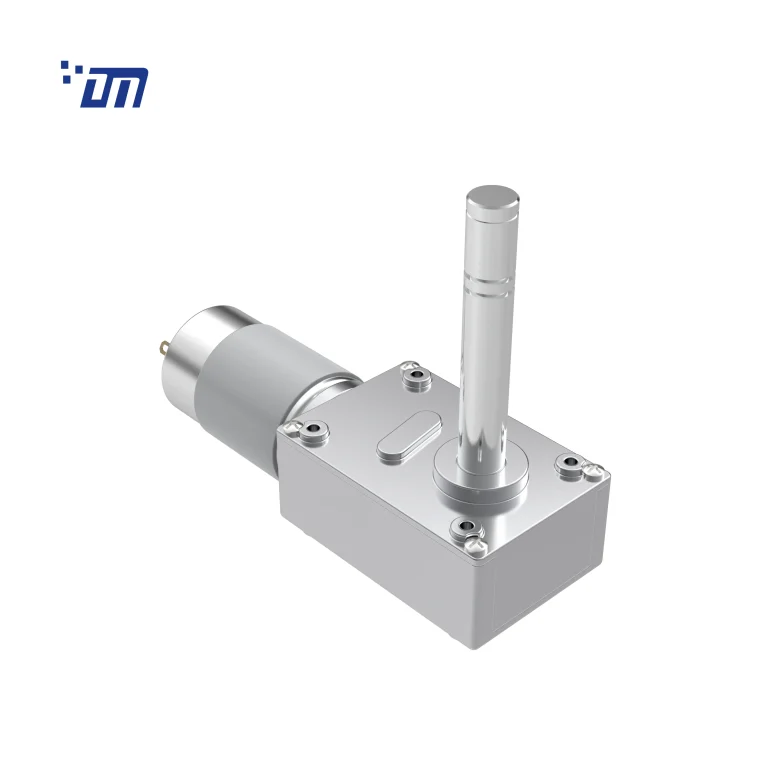

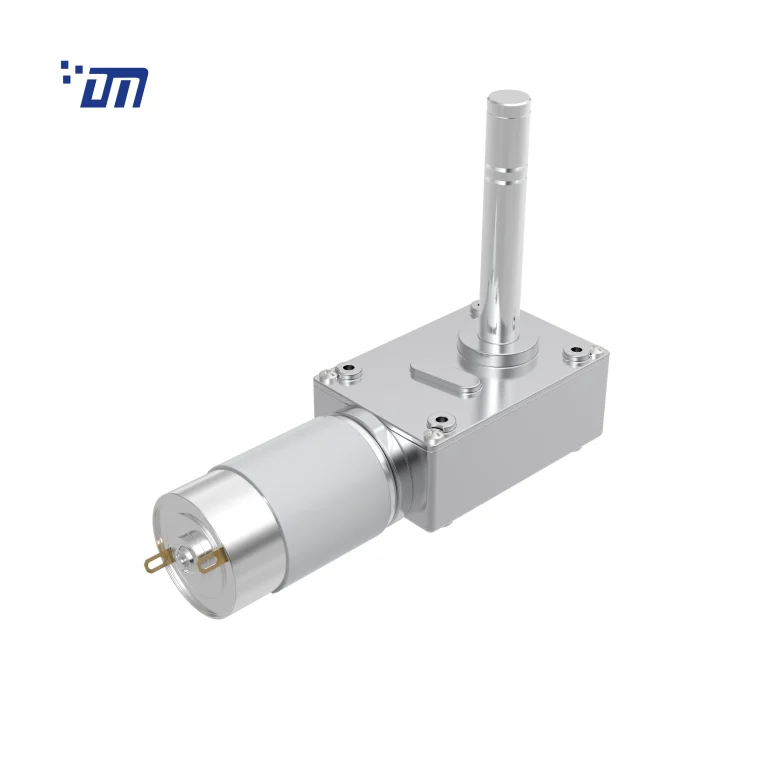

Model: DM-75WM555

Gearbox Width: 50mm
Voltage: 12V~24VDC
Speed: 2RPM~50RPM
Torque: 0.5kg.cm~70kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Worm Gears
4. Metal Right Angle Gearbox

Customization:
Voltage, Current, Speed, Torque, Output shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages 3 4
Reduction Ratio i 83、90、99、110、120、221 230、250、267、294、324、359、400、 448、506、718、800、896、1012
Gearbox Length L (mm) 75 75
Breaking Torque(kgf.cm) 70 100
Gearbox Efficiency 50% 40%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
DM-555-012-3600 12 ≤205 3600 ≤840 3000 200 6.1 ≥2400 ≥5695
DM-555-012-4500 12 ≤200 4500 ≤1200 4000 200 8.21 ≥1800 ≥7650
DM-555-012-6000 12 ≤450 6000 ≤2400 5500 200 11.28 ≥2400 ≥12750
DM-555-024-6000 24 ≤230 6000 ≤1080 5450 200 11.28 ≥2181 ≥5100



DC Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-75WM5550065.8-359K 6 0.12 5.8 0.63 4.8 18.97 0.92 82.4 2.87
DM-75WM5550128.3-359K 12 0.16 8.3 0.72 6.6 16.32 1.10 62.5 2.86
DM-75WM55501212.2-359K 12 0.15 12.2 0.95 10.4 30.09 3.22 168.74 5.79
DM-75WM55502417.6-359K 24 0.14 17.6 0.99 15.0 24.68 3.79 131.94 5.84
DM-75WM555012025-359K 12 0.8 25 2.455 20.7 39.9 8.647 238.75 12.59
DM-75WM555024026-223K 24 0.25 26 0.952 22.5 28.69 6.746 184.77 5.320
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
