DM-70SM3540

Key Features

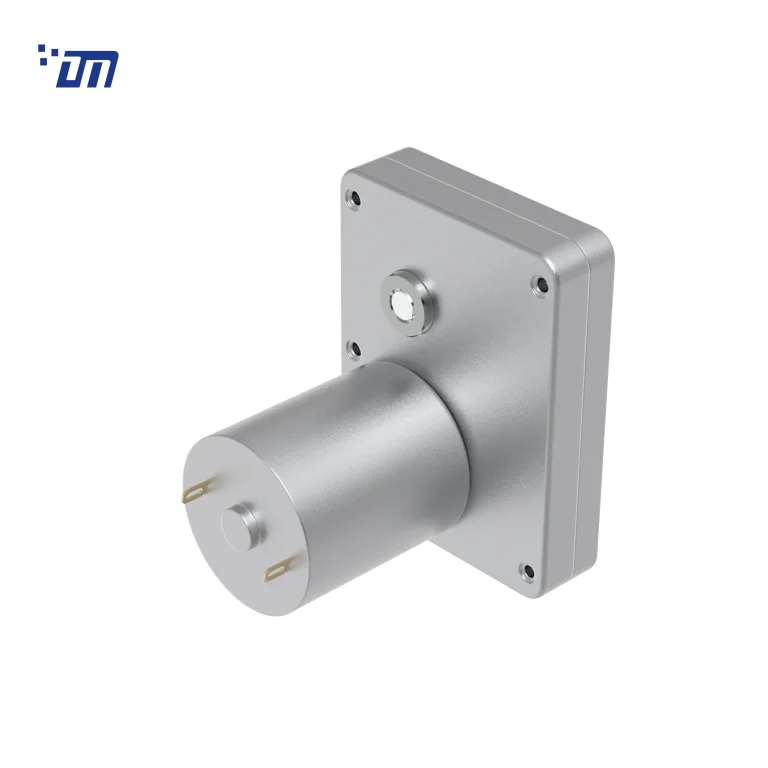

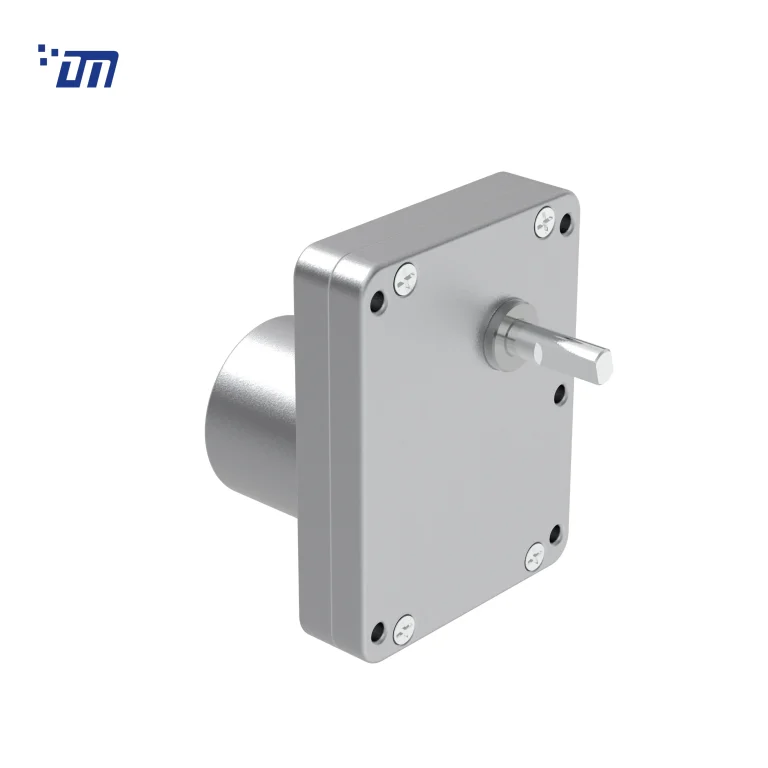

Model: DM-70SM3540

Diamater: 34.6mm
Voltage: 6V~24VDC
Speed: 3RPM~150RPM
Torque: 1kg.cm~45kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Spur Gears
4. Metal Square Gearbox

Customization:
Voltage,  Current,  Speed,  Torque,  Output Shaft,  DC Motor,  Gearbox,  Ratio,  Brush of DC Motor,  Wire, Encoder,  Gear,  Noise Level,  Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages 3 4 5
Reduction Ratio i 54、73 217、293 564、763
Gearbox Length L (mm) 15 15 15
Breaking Torque(kgf.cm) 25 35 40
Gearbox Efficiency 73% 65% 59%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
DM-3540-012 -3000 12 ≤50 3000 ≤300 2200 60 1.4 ≥240 ≥800
DM-3540-012-4500 12 ≤70 4500 ≤500 3300 70 2.4 ≥500 ≥2000
DM-3540-012-6000 12 ≤100 6000 ≤700 4500 80 3.7 ≥600 ≥2500
DM-3540-024-3000 24 ≤25 3000 ≤150 2200 60 1.4 ≥220 ≥500
DM-3540-024-4500 24 ≤35 4500 ≤250 3300 70 2.4 ≥240 ≥800



Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-70SM354000666.1-73K 6 0.16 66.1 0.84 53.4 3.9 2.16 20.5 3.65
DM-70SM35400126.4-763K 12 0.15 6.4 0. 46 5.1 34.2 1.78 1 60 1.67
DM-70SM354001214.8-564K 12 0.37 14.8 1.3 11.2 45.0 5.28 187.1 4.36
DM-70SM354002412.7-217K 24 0.02 12.7 0.09 10.2 8.5 0.89 43.6 0.39
DM-70SS35400126.9-564K 12 0.06 6.9 0.291 5.7 22.70 1.355 139.89 1.522
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
