DM-65SM520

Key Features

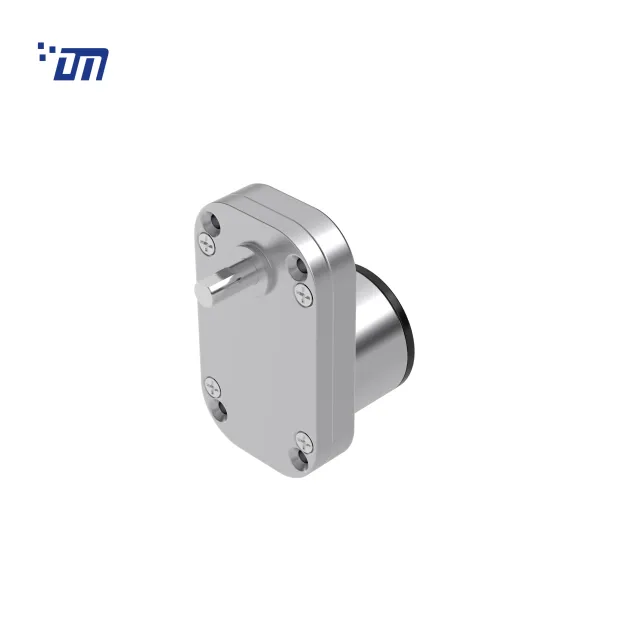

Model: DM-65SM520

Diamater: 33mm
Voltage: 6V~24VDC
Speed: 5RPM~200RPM
Torque: 0.3kg.cm~13kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Spur Gears
4. Metal Square Gearbox

Customization:
Voltage,  Current,  Speed,  Torque,  Output Shaft,  DC Motor,  Gearbox,  Ratio,  Brush of DC Motor,  Wire, Encoder,  Gear,  Noise Level,  Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

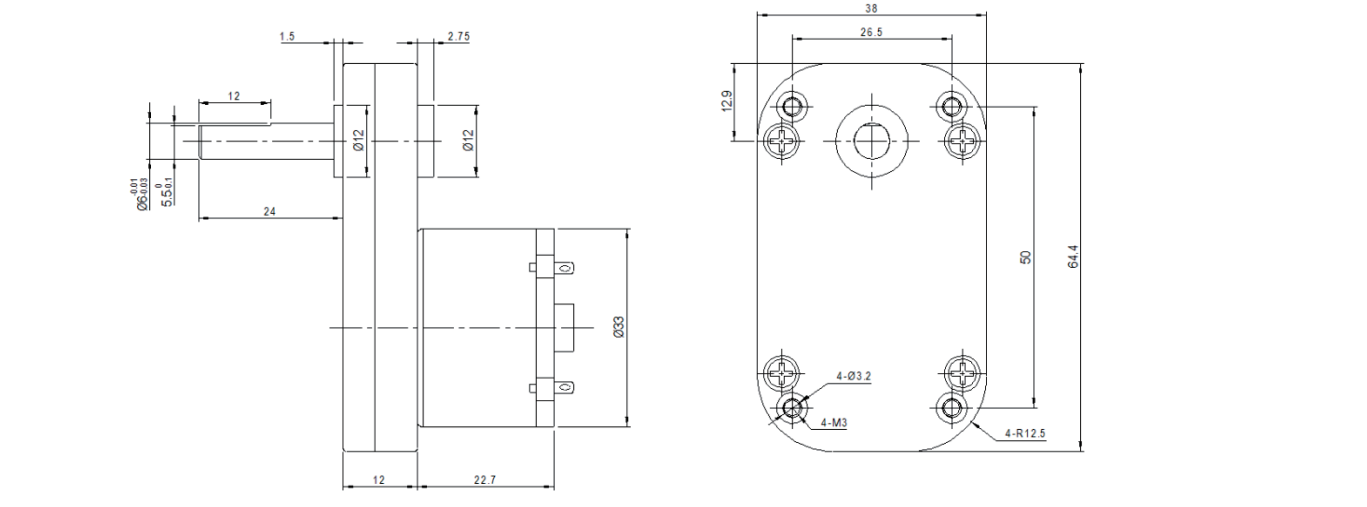

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages
3
4
5
Number of stages345
Reduction Ratio i 40.5、 67.5 135、152、225 450
Gearbox Length L (mm) 12 12 12
Breaking Torque(kgf.cm) 10 25 35
Gearbox Efficiency 73% 65% 59%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model
Rated
No Load
Max Efficiency Load
Stall
Volt.
Current
Speed
Current
Speed
Torque
P.out
Torque
Current
V
mA
r/min
mA
r/min
gf.cm
W
gf.cm
mA
DC Motor ModelRatedNo LoadMax Efficiency LoadStall
Volt.CurrentSpeedCurrentSpeedTorqueP.outTorqueCurrent
VmAr/minmAr/mingf.cmWgf.cmmA
DM-520-012-3000 12 ≤20 3000 ≤110 2200 25 0.6 ≥100 ≥400
DM-520-012-4500 12 ≤30 4500 ≤150 3300 35 1.2 ≥140 ≥850
DM-520-012-6000 12 ≤40 6000 ≤400 4500 45 2.1 ≥180 ≥1400
DM-520-024-3000 24 ≤15 3000 ≤60 2200 25 0.6 ≥100 ≥200
DM-520-024-4500 24 ≤20 4500 ≤80 3300 35 1.2 ≥140 ≥420



Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model
Rated voltage
No Load
Max Efficiency Load
Stall
Current
Speed
Current
Speed
Torque
P.out
Torque
Current
V
A
r/min
A
r/min
kgf.cm
W
kgf.cm
A
DC Gear Motor ModelRated voltageNo LoadMax Efficiency LoadStall
CurrentSpeedCurrentSpeedTorqueP.outTorqueCurrent
VAr/minAr/minkgf.cmWkgf.cmA
DM-65SM520003231.6-40,5K 3 0.42 231.6 1.56 175.5 0.92 1.65 3.78 5.13
DM-65SM520003131.7-67.5K 3 0.73 131.7 2.11 94.3 2.02 1.95 7.1 5.58
DM-65SM52001215.1-225K 12 0.02 15.1 0.14 13.3 5.14 0.7 43.35 1 .04
DM-65SM52001219.8-225K 12 0.05 19.8 0.22 16.5 6.96 1.18 41.35 1 .03
DM-65SM520012012-450K 12 0.05 12.0 0.23 9.7 10.31 1.03 54.55 1.01
DM-6538SM520005013-225K 5 0.15 13 0.240 9.9 4.1 0.422 19.96 0.938
DM-6538SM520005013-450K 5 0.24 13 0.592 10.1 8.83 0.938 50.87 2.762
DM-65SS520024059-135K 24 0.04 59 0.114 51.0 2.326 1.242 21.923 0.946
DM-65SS5207.4250-41.8K 7.4 0.3 250 0.661 204.5 1.002 2.145 6.624 3.709
DM-65SS5207.4296-40.5K 7.4 0.55 296 0.790 220.2 1.076 2.480 53.94 3.207
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
