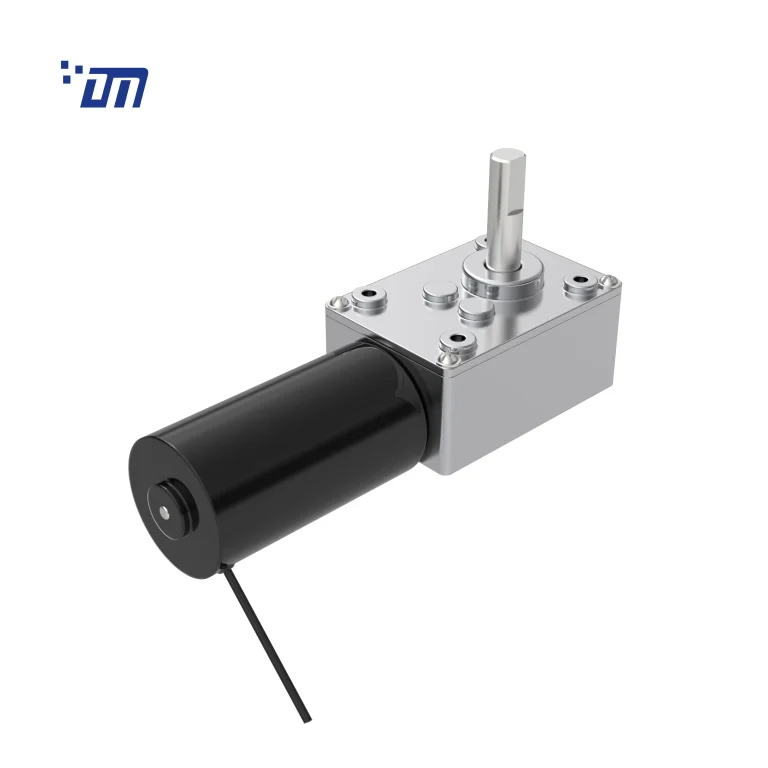

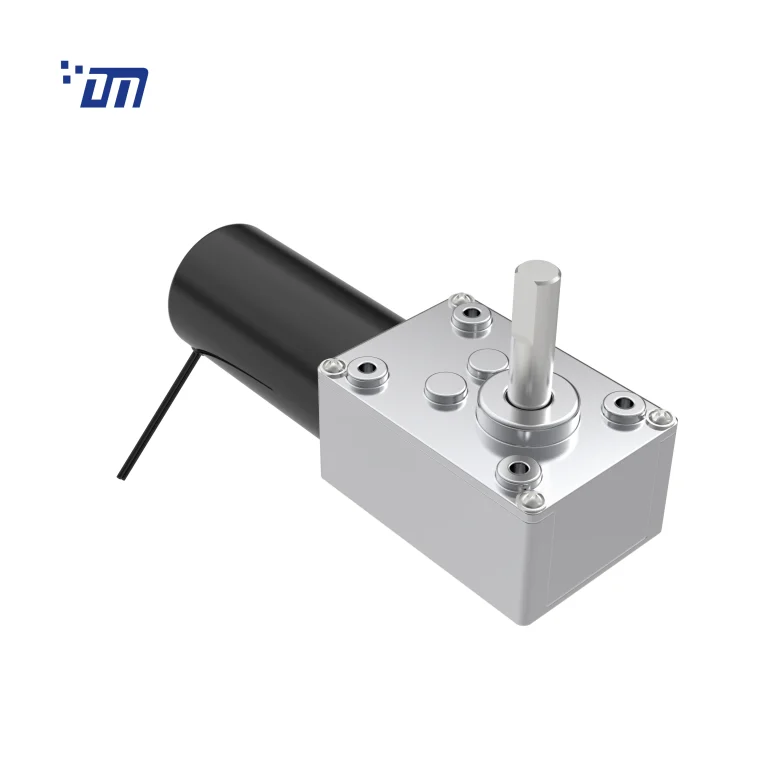

DM-58WM31ZY

Key Features
Model: DM-58WM31ZY

Gearbox Width: 40.1mm
Voltage: 12V~24VDC
Speed: 2RPM~120RPM
Torque: 0.6kg.cm~30kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Worm Gears
4. Metal Right Angle Gearbox

Customization:
Voltage, Current, Speed, Torque, Output shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages 3 4
Reduction Ratio i 54、75、109、161、167、322 313、405、402、500、548、663、708、1327
Gearbox Length L (mm) 58 58
Breaking Torque(kgf.cm) 15 35
Gearbox Efficiency 50% 40%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
DM-31ZY-012-3000 12 ≤100 3000 ≤400 2200 90 2.0 ≥360 ≥1600
DM-31ZY-012-4500 12 ≤150 4500 ≤700 3300 130 4.4 ≥520 ≥2700
DM-31ZY-012-6000 12 ≤220 6000 ≤1200 4500 180 8.3 ≥720 ≥5000
DM-31ZY-024-3000 24 ≤60 3000 ≤200 2200 90 2.0 ≥360 ≥800
DM-31ZY-024-4500 24 ≤90 4500 ≤350 3300 130 4.4 ≥520 ≥1300



DC Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-58WM31ZY012123.6-49K 12 0.14 123.6 0.84 104.4 2.7 2.87 17.0 4.67
DM-58WM31ZY01225.8-218K 12 0.12 25.8 0.94 21.8 10.6 2.37 68.0 5.41
DM-58WM31ZY012181.5-49K 12 0.36 181.5 1.93 146.5 3.7 5.64 19.0 8.52
DM-58WM31ZY012106.9-74K 12 0.15 106.9 0.83 86.4 5.7 5.09 29.9 3.66
DM-58WM31ZY-02426.3-290K 24 0.13 26.3 0.73 22.5 19.4 4.47 132.0 4.20
DM-58WM31ZY012183-49K 12 0.4 183 1.386 149.7 2.6 4.075 17.574 7.942
DM-58WM31ZY012120-54K 12 0.3 120 1.005 94.9 2.55 2.530 1.239 4.142
DM-58WM31ZY02425.5-313K 24 0.11 25.5 0.274 24.1 8.01 2.019 12.931 4.126
DM-58WM31ZY012011-402K 12 0.2 11 0.455 9.1 12.70 1.204 7.993 2.456
DM-58WM31ZY0249.9-663K 24 0.14 9.9 0.459 8.3 2.658 2.311 14.635 2.129
DM-58WM31ZY024009-663K 24 0.14 9 0.459 8.3 2.658 2.311 14.635 2.129
DM-58WM31ZY012011548K 12 0.3 11 1.308 9.3 2.445 2.368 11.375 4.866
DM-58WM31ZY0124.9-1327K 12 0.36 4.9 0.869 3.9 2.903 1.177 16.235 3.869
DM-58WM31ZY012082-109K 12 0.3 82 1.275 75.0 3.29 2.583 2.853 9.687
DM-58WM31ZY012045-121K 12 0.21 45 0.491 40.0 3.87 1.620 3.355 3.841
DM-58WM31ZY024080-75K 24 0.195 80 0.465 64.7 3.381 2.291 18.632 2.180
DM-58WM31ZY024111-54K 24 0.14 111 0.368 92.5 2.54 2.460 1.804 2.218
DM-58WM31ZY024023-313K 24 0.2 23 0.633 18.9 17 3.317 102.07 3.304
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
