DM-46WM395

Key Features

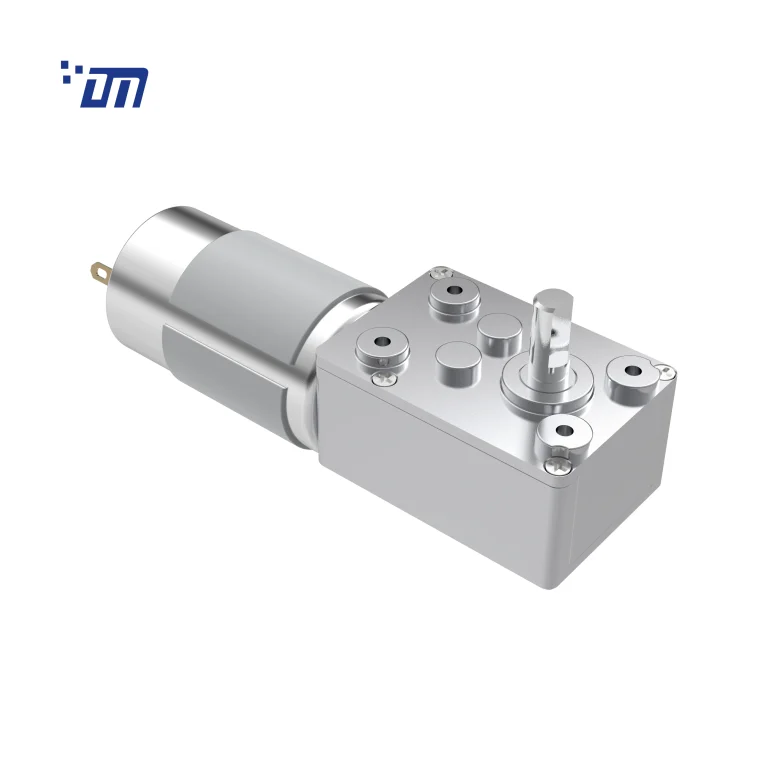

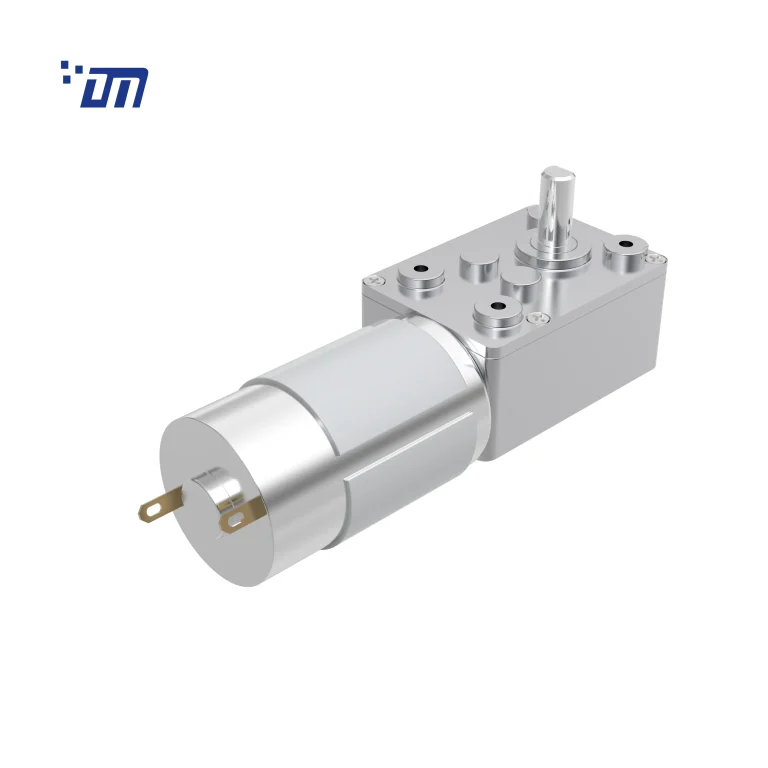

Model: DM-46WM395

Gearbox Width: 32mm
Voltage: 6V~24VDC
Speed: 2RPM~250RPM
Torque: 1kg.cm~30kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Worm Gears
4. Metal Right Angle Gearbox

Customization:
Voltage, Current, Speed, Torque, Output shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages 3 4
Reduction Ratio i 29、71、174 336、410、539、603、674、754
Gearbox Length L (mm) 46 46
Breaking Torque(kgf.cm) 8 30
Gearbox Efficiency 50% 40%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
DM-395-012-6000 12 ≤160 6000 ≤1200 4000 100 4.1 ≥300 ≥2200
DM-395-024-4500 24 ≤70 4500 ≤350 3600 100 3.6 ≥750 ≥780
DM-395-024-6000 24 ≤100 6000 ≤650 4500 100 4.6 ≥400 ≥1200
DM-370-024-9000 24 ≤43 9000 ≤210 7800 27 2.20 ≥182 ≥950



DC Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-46WM39501225.6-174k 12 0.41 25.6 0.92 15.7 3.28 0。86 17.19 1.73
DM-46WM39501212.7-336k 12 0.46 12.7 0.97 7.81 6.64 0.86 31.92 1.81
DM-46WM39502420.1-174k 24 0.18 20.1 0.41 12.6 3.58 0.73 18.29 0.76
DM-46WM395-02413.8-336k 24 0.32 13.8 0.78 8.11 10.19 1.44 55.78 1.44
DM-46WM3950249.51-539k 24 0.23 9.51 0.75 5.41 8.39 0.81 57.06 1.42
DM-46WM395024084-71K 24 0.14 84 0.372 66.6 2.624 1.829 14.88 1.777
DM-46WM39501217.8-336K 12 0.26 17.8 0.697 14.1 1.069 1.579 5.678 3.129
DM-46WM395024063-71K 24 0.11 63 50.0 2.066 2.066 1.082 9.919 0.860
DM-46WM39501219.5-461K 12 0.35 19.5 1.011 15.7 1.558 2.555 10.156 5.536
DM-46WM395024055-109K 24 0.09 55 0.340 41.8 4.30 1.883 22.915 1.439
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
