DM-46WM370

Key Features

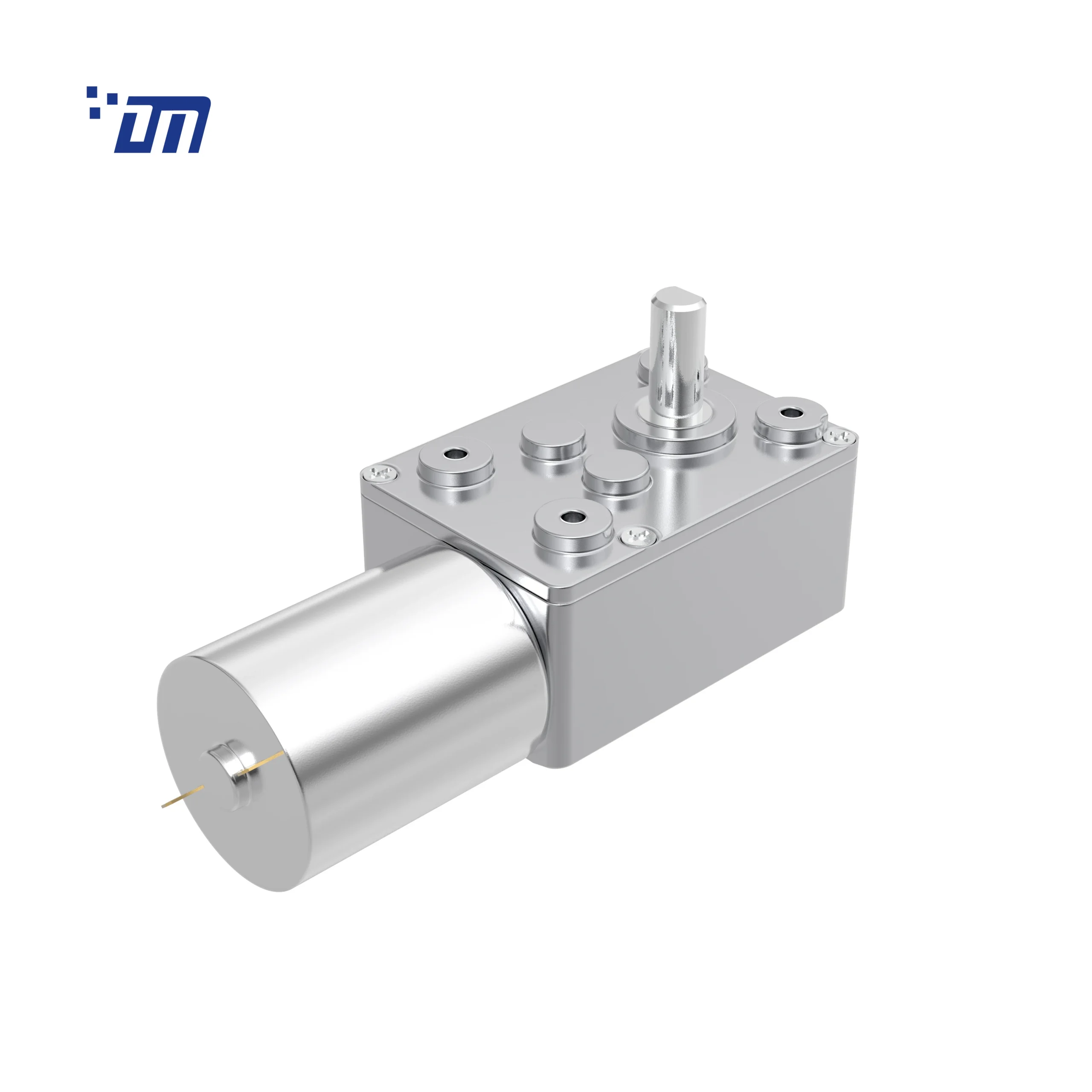

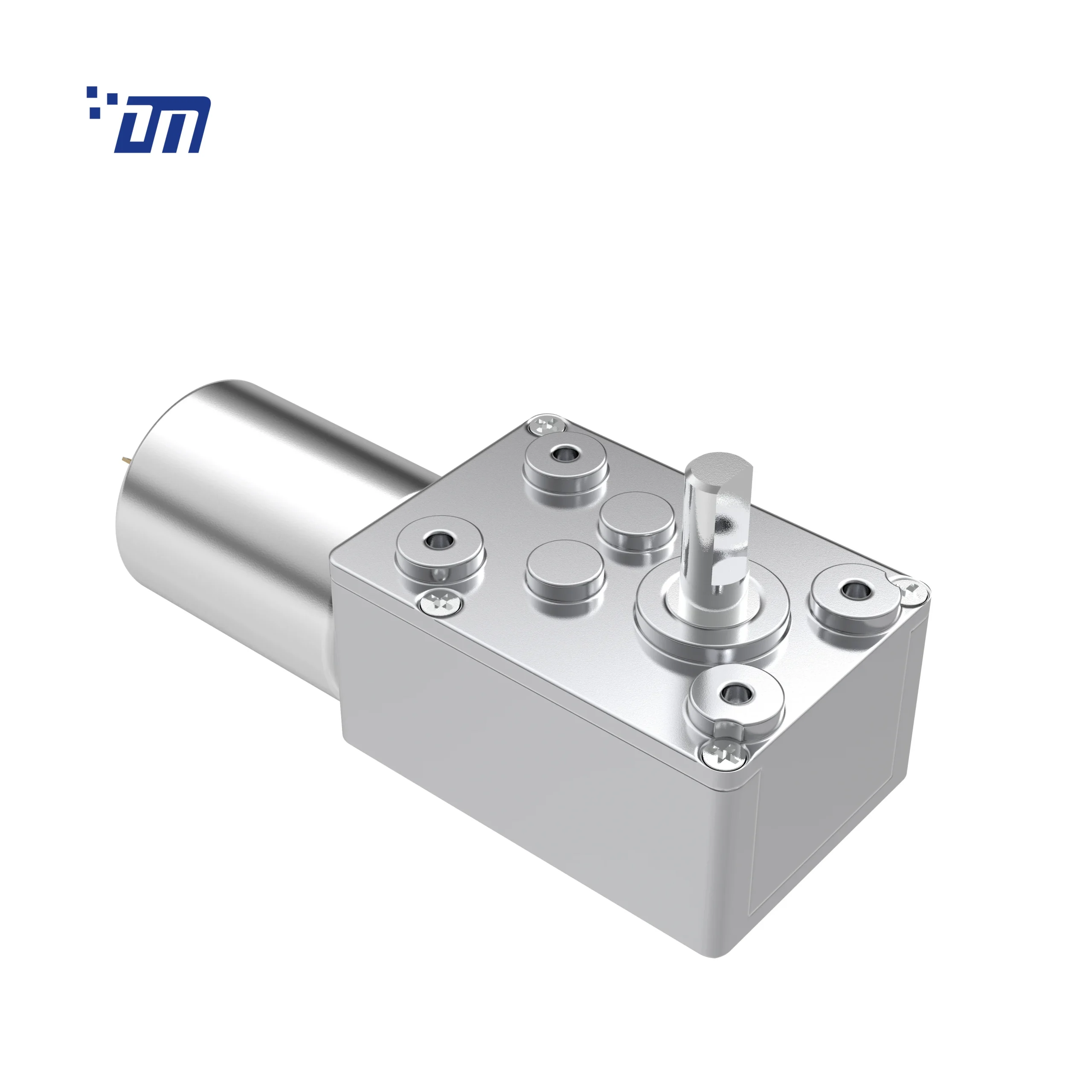

Model: DM-46WM370

Gearbox Width: 32mm
Voltage: 6V~24VDC
Speed: 2RPM~250RPM
Torque: 1kg.cm~27kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Worm Gears
4. Metal Right Angle Gearbox

Customization:
Voltage, Current, Speed, Torque, Output shaft, DC Motor, Gearbox, Ratio, Brush of DC Motor, Wire, Encoder, Gear, Noise Level, Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages 3 4
Reduction Ratio i 29、71、174 336、410、539、603、674、754、1020、1443、1635
Gearbox Length L (mm) 46 46
Breaking Torque(kgf.cm) 8 30
Gearbox Efficiency 50% 40%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
DM-370-006-5000 6 ≤45 5000 ≤240 4200 20 0,88 ≥112 ≥1100
DM-370-012-6000 12 ≤42 6000 ≤150 5000 20 1.05 ≥108 ≥980
DM-370-012-12000 12 ≤90 12000 ≤520 10300 28 2.96 ≥177 ≥2500
DM-370-024-6000 24 ≤21 6000 ≤110 5100 21 1.12 ≥126 ≥440
DM-370-024-9000 24 ≤43 9000 ≤210 7800 27 2.20 ≥182 ≥950



DC Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-46WM3700062.9-1635K 6 0.05 2.9 0.22 2.3 7.0 0.17 37.0 0.93
DM-46WM37000656.6-109K 6 0.05 56.6 0.35 48.1 1.2 0.6 8.0 2.05
DM-46WM37000635.7-174K 6 0.05 35.7 0.34 30.2 1.5 0.47 9.7 1.89
DM-46WM370-01224.6-174K 12 0.04 24.6 0.18 19.4 2 0.41 9.7 0.68
DM-46WM370024064-109K 24 0.075 64 0.118 53.7 0.119 0.671 0.941 0.793
DM-46WM37001278.9-71K 12 0.03 78.9 0.17 65.5 0.6 0.39 3.4 0.86
DM-46WM370024098-71K 24 0.08 98 0.144 82.9 1.094 0.950 9.381 1.049
DM-46WM370012010-539K 12 0.07 10 0.157 8.1 0.487 0.414 3.024 0.841
DM-46WM370C0124.7-1020K 12 0.06 4.7 0.106 3.8 4.859 0.196 25.675 0.452
DM-46WM370C0124.7-1004K 12 0.075 4.7 0.157 3.5 1.365 0.498 5.018 0.454
DM-46WM3700124.6-1635K 12 0.06 4.6 0.200 4.2 9.6 0.415 68.68 1.290
DM-46WM370012040-174K 12 0.12 40 0.313 30.8 19.09 0.616 78.31 1.028
DM-46WM370C024036-194K 24 0.11 36 0.136 29.1 23.64 0.720 12.642 0.618
DM-46WM370006025-336K 6 0.105 25 0.307 20.6 13.19 0.349 109.3 1.749
DM-46WM3700123.6-1635K 12 0.55 3.2 0.151 3.2 9.8 0.245 38.05 3.480
DM-46WM3700068.8-1020K 6 0.3 8.8 0.911 6.2 11.38 0.740 48.9 3.085
DM-46WM37002410000-174K 24 0.09 57 0.297 52.5 26.2 1.441 170.4 1.683
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
