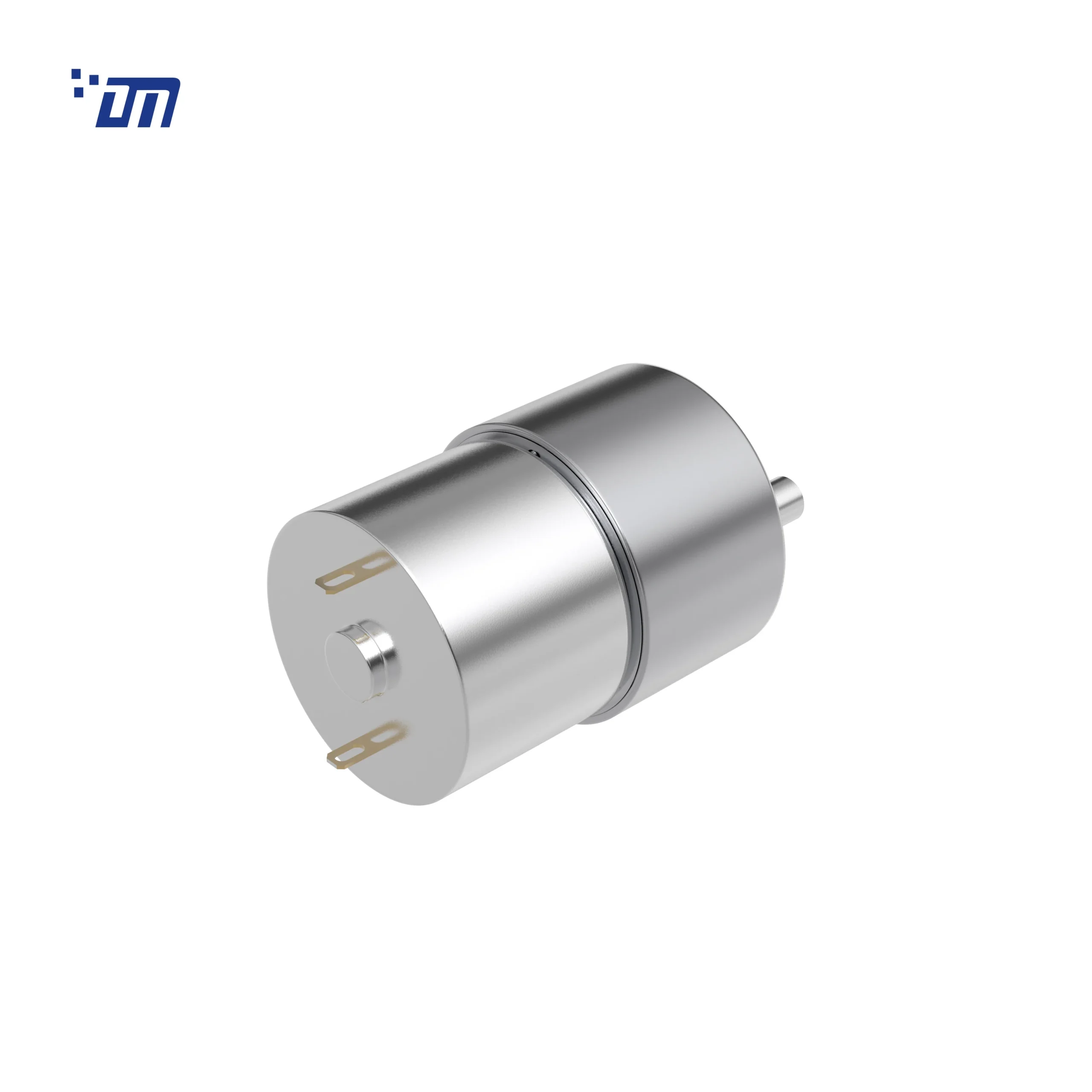

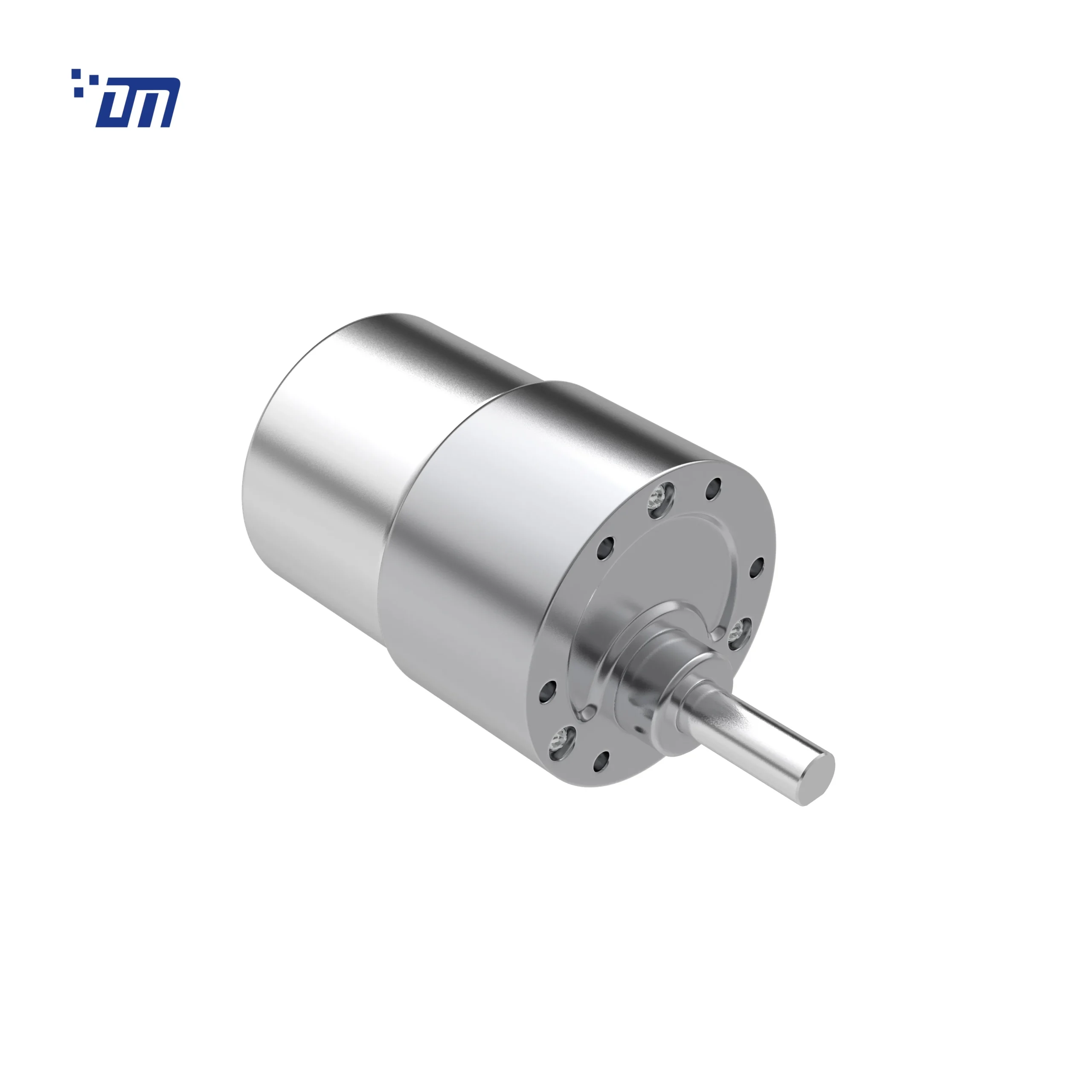

DM-37SM3525

Key Features
Model: DM-37SM3525

Diamater: 37mm
Voltage: 12V~24VDC
Speed: 3RPM~500RPM
Torque: 0.4kg.cm~23kg.cm

1. CW/CCW
2. Electric Brush/Carbon Brush
3. Spur Gears
4. Metal Gearbox

Customization:
Voltage,  Current,  Speed,  Torque,  Output Shaft,  DC Motor,  Gearbox,  Ratio,  Brush of DC Motor,  Wire, Encoder,  Gear,  Noise Level,  Lifetime Cycle

Typical applications:
Automatic quick lock door, binding machine, automatic TV stand, money counter, spotlight, toilet paper machine, office equipment, household appliances, automatic actuator

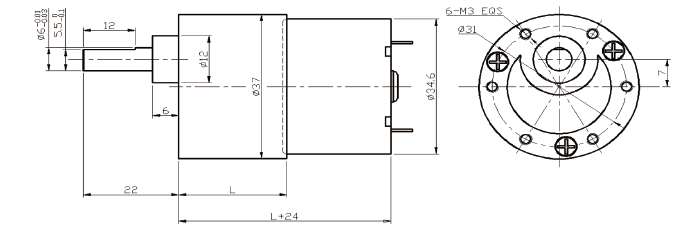

Product Dimensions（unit:mm）



Gearbox Ratio:

Number of stages 2 3 4 5 6 7
Reduction Ratio i 6、8、10 20、30 61、90 107、122、 184、270 311、414、 552、810 1243 1657、2430
Gearbox Length L (mm) 19 22.5 25 27.5 30 31.5
Breaking Torque(kgf.cm) 8 10 30 30 40 40
Gearbox Efficiency 81% 72% 65% 59% 53% 47%



DC Motor Data:

Remarks: The above DC motor datas are used for dc gear motor configuration customization based on given formula.

DC Motor Model Rated No Load Max Efficiency Load Stall
Volt. Current Speed Current Speed Torque P.out Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
DM-3525-012-3000 12 ≤40 3000 ≤170 2200 25 0.6 ≥120 ≥600
DM-3525-012-4500 12 ≤60 4500 ≤250 3300 35 1.2 ≥180 ≥900
DM-3525-012-6000 12 ≤100 6000 ≤450 4500 45 2.1 ≥200 ≥1300
DM-3525-024-3000 24 ≤25 3000 ≤80 2200 25 0.6 ≥100 ≥300
DM-3525-024-4500 24 ≤30 4500 ≤130 3300 35 2.1 ≥180 ≥450



Gear Motor Data:

Remarks: The above datas in chart are only for reference.if need other configurations,you can caculate it according to given formula below or contact us directly.

DC Gear Motor Model Rated voltage No Load Max Efficiency Load Stall
Current Speed Current Speed Torque P.out Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
DM-37SM35250063.6-810K 6 0.09 3.6 0.21 2.3 9.5 0.23 27.8 0.43
DM-37SM352500615.2-534K 6 0.27 15.2 1.0 11.8 14.0 1.7 62.4 3.54
DM-37SM352501292.3-61K 12 0.03 92.3 0.22 77.2 1.4 1.17 9.0 1.18
DM-37SM352501264.6-90K 12 0.04 64.6 0.23 54.0 2.2 1.25 13.6 1.17
DM-37SM352501216.2-534K 12 0.06 16.2 0.48 13.8 14.0 1,98 94,7 2.91
DM-37SM3525024300-20K 24 0.045 300 0.151 233.2 6.84 1.669 38.42 0.720
DM-37SM3525024375-20K 24 0.065 375 0.249 288.6 9.03 2.729 48.68 1.068
DM-37SM3525024011-270K 24 0.04 11 0.028 10.0 2.12 0.221 17.63 0.197
DM-37SM3525024040-184K 24 0.55 40 0.153 35.8 4.069 1.526 28.682 0.918
DM-37SM35250123.7-810K 12 0.075 3.7 0.104 2.6 1.112 0.305 4.204 0.284
DM-37SM3525024286-21K 24 0.08 286 0.115 251.4 0.521 1.371 4.581 0.859
DM-37SM3525012019-534K 12 0.285 19 1.012 15.1 2.180 3.445 10.579 4.121
DM-37SM3525012022-270K 12 0.2 22 0.443 15.4 1.042 1.685 4.352 1.497
DM-37SM3525012011-534K 12 0.5 11 0.693 6.1 2.130 1.364 6.609 1.587
DM-37SM35250124.8-1243K 12 0.2 4.8 0.288 3.8 16.07 0.637 89.67 1.285
DM-37SM3525012600-10K 12 0.075 600 0.266 461.2 3.17 1.530 19.23 1.378
DM-37SM35250247.4-810K 24 0.1 7.4 0.165 5.3 1.851 1.036 7.835 0.528
The motor parameters are for reference only,please refer to real measured data;
We can customize parameters according to customer requirements.
Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i)
Gear Motor Output Torque=DC Motor Torque*Gear Ratio*Gearbox Efficiency. ( t=tm*i*η)
