Number of stages	3	4

Number of stages	3	4
Reduction Ratio i	29、71、174	336、410、539、603、674、754、1020、1443、1635
Gearbox Length L (mm)	46	46
Breaking Torque(kgf.cm)	8	30
Gearbox Efficiency	50%	40%


DC Motor Model	Rated	No Load		Max Efficiency Load				Stall
	Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA

DC Motor Model	Rated	No Load		Max Efficiency Load				Stall
	Volt.	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-370-006-5000	6	≤45	5000	≤240	4200	20	0,88	≥112	≥1100
DM-370-012-6000	12	≤42	6000	≤150	5000	20	1.05	≥108	≥980
DM-370-012-12000	12	≤90	12000	≤520	10300	28	2.96	≥177	≥2500
DM-370-024-6000	24	≤21	6000	≤110	5100	21	1.12	≥126	≥440
DM-370-024-9000	24	≤43	9000	≤210	7800	27	2.20	≥182	≥950


DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A

DC Gear Motor Model	Rated voltage	No Load		Max Efficiency Load				Stall
	Rated voltage	Current	Speed	Current	Speed	Torque	P.out	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-46WM3700062.9-1635K	6	0.05	2.9	0.22	2.3	7.0	0.17	37.0	0.93
DM-46WM37000656.6-109K	6	0.05	56.6	0.35	48.1	1.2	0.6	8.0	2.05
DM-46WM37000635.7-174K	6	0.05	35.7	0.34	30.2	1.5	0.47	9.7	1.89
DM-46WM370-01224.6-174K	12	0.04	24.6	0.18	19.4	2	0.41	9.7	0.68
DM-46WM370024064-109K	24	0.075	64	0.118	53.7	1.2	0.671	9.41	0.793
DM-46WM37001278.9-71K	12	0.03	80	0.17	65	0.6	0.39	3.4	0.86
DM-46WM370024098-71K	24	0.08	98	0.144	82.9	1.1	0.950	9.381	1.049
DM-46WM370012010-539K	12	0.07	10	0.157	8.1	5	0.414	30	0.841
DM-46WM370C0124.7-1020K	12	0.06	4.7	0.106	3.8	4.9	0.196	25.675	0.452
DM-46WM370C0124.7-1004K	12	0.075	4.7	0.157	3.5	13.65	0.498	50.18	0.454
DM-46WM3700124.6-1635K	12	0.06	4.6	0.200	4.2	9.6	0.415	68.68	1.290
DM-46WM370012040-174K	12	0.12	40	0.313	30.8	1.90	0.616	7.83	1.028
DM-46WM370C024036-194K	24	0.11	36	0.136	29.1	2.4	0.720	12.64	0.618
DM-46WM370006025-336K	6	0.105	25	0.307	21	1.6	0.349	11	1.749
DM-46WM3700123.6-1635K	12	0.55	3.2	0.151	3.2	9.8	0.245	38.05	3.480
DM-46WM3700068.8-1020K	6	0.3	8.8	0.911	6.2	11.38	0.740	48.9	3.085
DM-46WM370024057-174K	24	0.09	57	0.297	48	3.3	1.441	13	1.683
The motor parameters are for reference only,please refer to real measured data; We can customize parameters according to customer requirements. Gear Motor Output Speed=DC Motor Speed/Gear Ratio ( n=nm/i) Gear Motor Output Torque=DC Motor TorqueGear RatioGearbox Efficiency. ( t=tmiη)

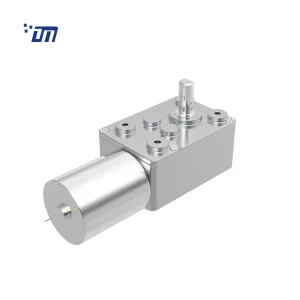

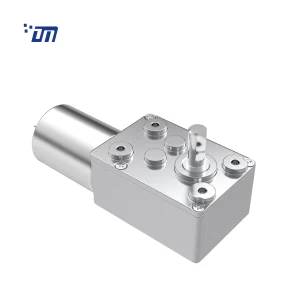

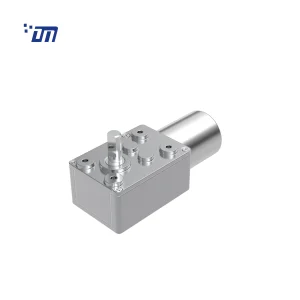

DM-46WM370

产品尺寸（单位：毫米）

Gearbox Ratio:

直流电机数据:

直流齿轮电机数据:
